Basic Information

Name

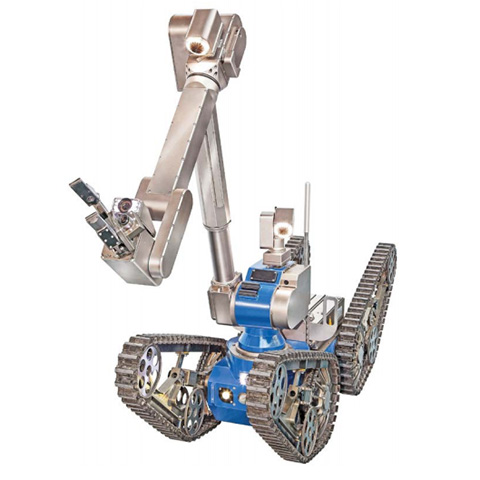

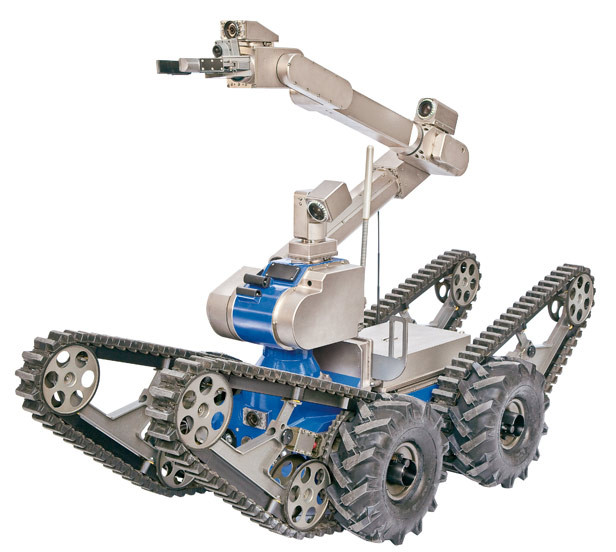

Telemax PRO German Tracked Unmanned Ground Vehicle (UGV)

Designation

Telemax PRO

Alternate Designation

Telemax PRO

Equipment Type

Unmanned Ground Vehicle (UGV)

Manufacturer

Faulhaber

Date of Introduction

2019

Description

Telemax PRO The original telemax: Compact design and high reach! A truly versatile robot capable of handling significant gradients and obstacles, it boasts an impressive manipulator reach, both vertically and horizontally, combined with minimal dimensions. Perfect for deployments in built-up areas and confined spaces. Features: *Precision 7-axis manipulator with TCP control and automatic tool change *Telescopic joint allows for increased reach of manipulator *Lifting capacity up to 20 kg (44 lbs.) *Compact dimensions *4-track drive system with a top speed of up to 10 km/h (6.2 mph) *More than 30 pre-programmed automatic motion sequences for manipulator and flippers *Interchangeability of accessories within the telemax family, e.g. batteries, tools, cameras and sensors

Ground Specifications

Crew 1

Variants

Telemax 4x4 elemax with wheels: Versatile and cost-efficient! The starter version with a broad wheelbase and 4-wheel drive for rapid deployments on challenging terrains and delicate flooring requiring protection.

Telemax PRO The original telemax: Compact design and high reach! A truly versatile robot capable of handling significant gradients and obstacles, it boasts an impressive manipulator reach, both vertically and horizontally, combined with minimal dimensions. Perfect for deployments in built-up areas and confined spaces.

Telemax HYBRID The best of both worlds – Compact and strong! The combination of a powerful arm and compact dimensions for the toughest challenges.

Telemax PLUS The biggest and strongest telemax: Versatile and strong! Our largest and strongest telemax, its exceptional ability to handle gradients and terrains makes it ideal for a particularly broad range of applications.

Telemax RECCE Fast solution for reconnaissance: Agile and smart! Compact and high performance reconnaissance system without a manipulator provides detailed information from the site, especially when equipped with our autonomy/3D mapping accessory.

System

Alternative Designation Telemax PRO

Type Tracked Unmanned Ground Vehicle (UGV)

Manufacturer Faulhaber

Crew 1 ea

Payload Capacity Lifting capacity up to 20 kg

Firing Port 3 ea

Dimensions

Length 800 mm

Width 400 mm

Height 750 mm

Manipulator, Upward Reach 2400 mm

Manipulator, Forward Reach 1530 mm

Manipulator, Downward Reach 935 mm

Weight Standard speed version: 75 kg (165 lbs.) (standard configuration w/o battery) High speed version: 77 kg (169 lbs.) (standard configuration w/o battery)

Automotive

Engine Name INA

Engine Type INA

Engine Power INA

Drive Track

Maximum Speed Standard speed version: max. 4 km/h (2.4 mph) High speed version: max. 10 km/h (6.2 mph)

Operational Range INA

Mobility, Slopes 45° (depending on surface)

Mobility, Stairs 45° (depending on surface)

Mobility, Obstacle Height 500 mm

Mobility, Gap Width 600 mm

Fording Depth 266-660 mm

Battery NiMh battery (24 V, 15 Ah) or Li-ion battery (26 V, 40 Ah)

Endurance NiMh battery (24 V, 15 Ah): approx. 2 h with 1 battery; approx. 4 h with 2 batteries Li-ion battery (26 V, 40 Ah): approx. 5 h with 1 battery; approx. 10 h with 2 batteries

Protection

Hull Armor INA

Applique Armor INA
