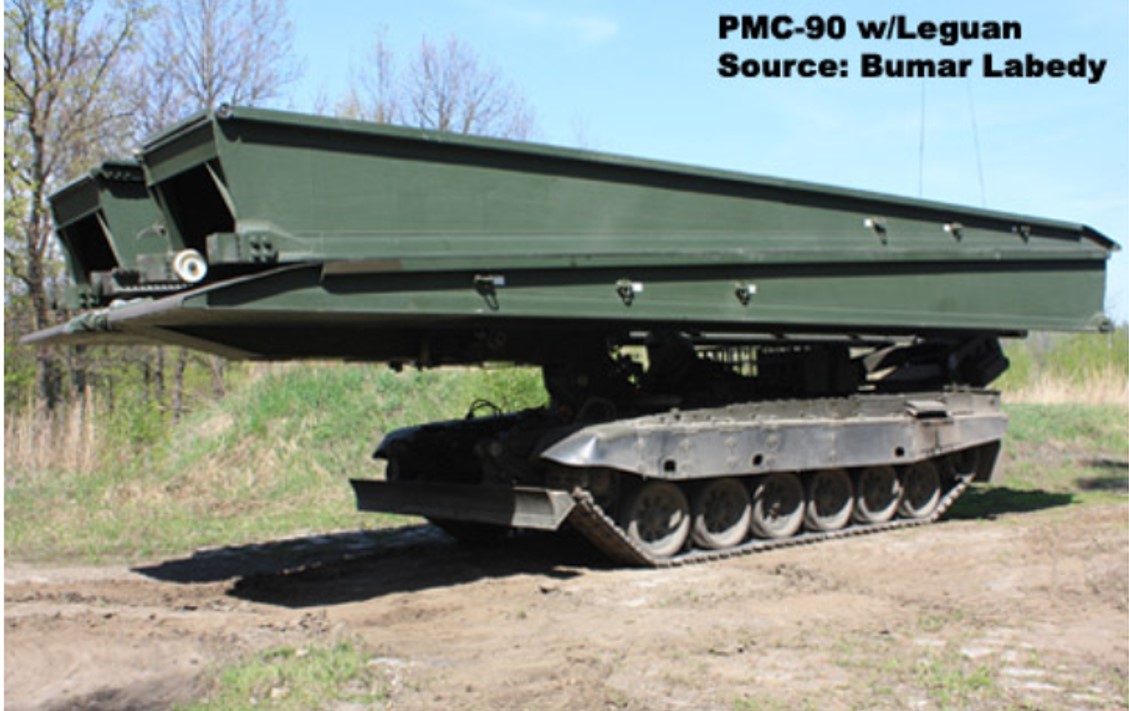

PMC-90 Polish Armored Vehicle Launched Bridge
PMC-90
Armored Vehicle-Launched Bridge (AVLB)
Other
Basic Information
Name
PMC-90 Polish Armored Vehicle Launched Bridge
Designation
PMC-90
Alternate Designation
PMC-90
Equipment Type
Armored Vehicle-Launched Bridge (AVLB)
Manufacturer
Bumar-Labedy, Gliwice, Poland
Date of Introduction
2012
Description
The PMC-90 AVLB developed on the basis of PT-91 and T-72M1Z MBTs is able to carry out missions required for operations of combat forces, improving and increasing their tactical maneuverability. Main components from MBT have been adopted to provide interchangeability and the best logistic support. The comparable performance of the whole family vehicle system was the main task during the design of PMC-90 to make it capable to combat the characteristics of MBTs.
Ground Specifications
Crew
3
Mobility Type
Tracked
Engine
Turbocharged Diesel (850 hp)
Max Speed
60.0 km/h
Range
550.0 km
System
Alternative Designation
PMC-90
Type
Armored Vehicle Launched Bridge
Manufacturer
Bumar-Labedy, Gliwice, Poland
Crew
3 (commander, gunner and driver)
Emplacement Time
Less than 5 minutes
Displacement Time
INA
Dimensions
Vehicle Length
6.95 m
Vehicle Width
3.37 m
Vehicle Height
2.22 m
Bridge Length
20.00 m
Bridge Width
3.45 m
Weight
37,000 kg
Automotive
Engine Name
1 x S-12U
Engine Type
supercharged diesel
Engine Power
850 hp (634 kW)
Maximum Speed
60 kph
Range
550 km
Gradient
60 percent
Side Slope
30 percent
Vertical Obstacle
0.85 m
Trench
2.80 m
Fording
5.00 m
Protection
Hull Armor
200 mm
Applique Armor
INA
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
No
Image Sources
Details
Country of Origin
Poland
Category
Mobility
Land > Combat Support Vehicles > Mobility
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.95 m
Width
3.37 m
Height
2.22 m
Weight
37000 kg
Operators (1)
Malaysia
