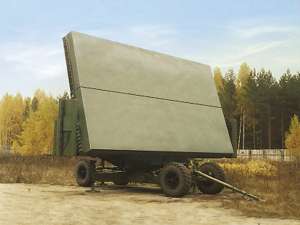

67N6E Gamma-D Russian Towed Long-Range 3D Acquisition and Air Surveillance Radar

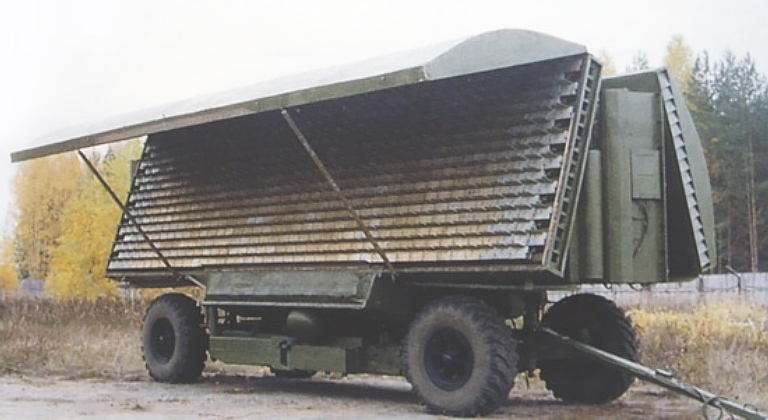

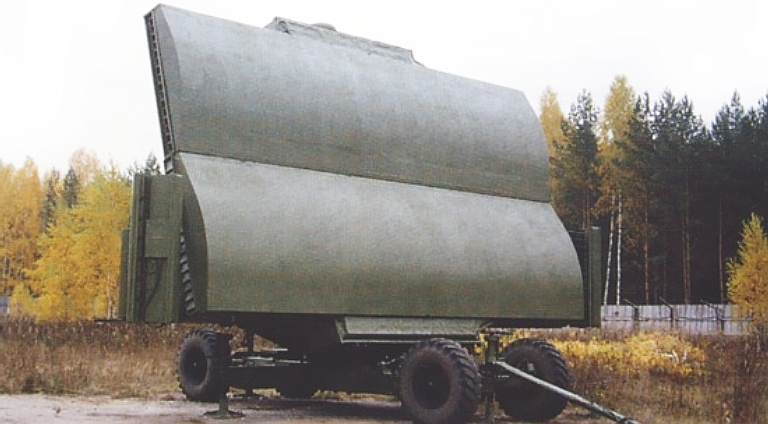

67N6E «Gamma-D» (Cyrillic: 67Н6Е «Гамма-Д») is a mobile, operating in D-Band solid-state, long-range 3D acquisition and air surveillance radar designed for use as part of automated and non-automated air defense and air force control systems. The radar can also be used for air traffic control and, in its export version, is likely a component option for an S-400 (NATO Designator: S-21 “Growler”) battery. The radar comprises an active phased-array antenna with a turntable, an operator’s cabin housing electronic equipment and spare parts, a set of tools and accessories, a diesel power plant with two diesel generators, and a self-contained power source for the operator’s cabin. The radar’s antenna and the turntable may be mounted on a semi-mobile tower (radar deployment platform 40V6M) with a height of 23.8 m. A remote control equipment kit can be provided for setting up at command posts to ensure radar operation at a distance of up to 15 km away with data link coupling. The kit also allows the crew to operate from the cabin, which has been moved 1,000 m away from the rotating antenna. The radar is equipped with built-in automatic test and monitoring equipment, as well as automatic fire alarm and fire-extinguishing systems, air conditioning, and other technical support assets. --- Additional Data (TRADOC ODIN WEG) --- Frequency: 1.2–1.4 GHz (L, NATO Band D) Antenna Dimensions: 6 x 2.7 m Associated Weapon Systems: С-400 (S-400): 48Н6ДМ / 48N6DM Role: 3D Early Warning/Acquisition Remarks: S-400 main 3D search, anti-stealth --- From Radartutorial.eu (https://www.radartutorial.eu/19.kartei/02.surv/karte063.en.html) --- 67N6E „Gamma-D“ (Cyrillic: 67Н6Е «Гамма-Д») is a mobile, operating in D band solid-state, long-range 3D acquisition and air surveillance radar, designed for use as part of automated and non-automated air defense and air force control systems. The radar can also be used for air traffic control and is with its export version probably an S-400 (Nato-Designator: S-21 “Growler”) battery component option. The radar comprises an active phased-array antenna with the turntable, an operator’s cabin housing electronic equipment and spare parts, tools and accessories set, a diesel power plant with two diesel-generators, and a self-contained power source for the operator’s cabin. The radar’s antenna and the turntable may be mounted on a semi-mobile tower (radar deployment platform 40V6M) with a height of 23.8 m. A remote control equipment kit can be provided for setting up at command posts to ensure radar operation at a distance of up to 15 km away with data link coupling. The kit also allows the crew to operate from the cabin moved 1 000 m away from the rotating antenna. The radar is fitted with a built-in automatic test and monitoring equipment, automatic fire-alarm and fire-extinguishing systems, air conditioning, and other technical support assets.
