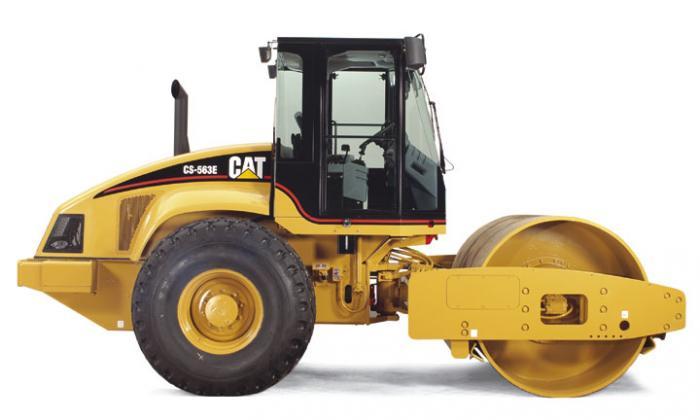

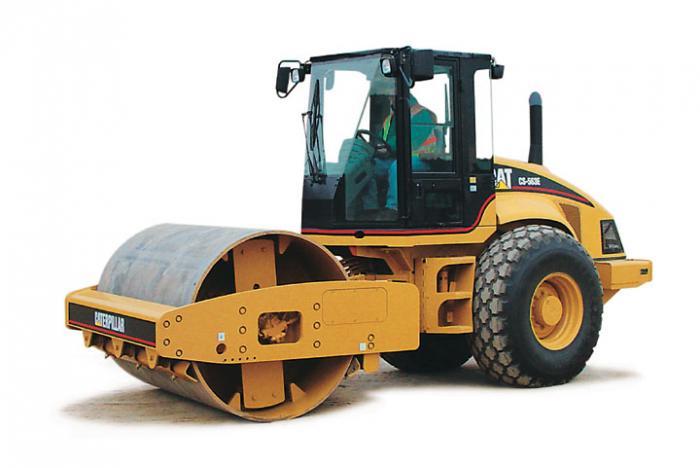

Caterpillar CS563E American Vibratory Smooth Drum Roller
Caterpillar CS563E
Vibratory Smooth Drum Roller
Other
Basic Information
Name
Caterpillar CS563E American Vibratory Smooth Drum Roller
Designation
Caterpillar CS563E
Alternate Designation
Caterpillar CS563E
Equipment Type
Vibratory Smooth Drum Roller
Manufacturer
Caterpillar
Date of Introduction
2018
Description
Caterpillar CS563E Vibratory Smooth Drum Roller.
Ground Specifications
Crew
1
Engine
Diesel
Max Speed
11.4 km/h
System
Alternative Designation
Caterpillar CS563E
Type
Vibratory Smooth Drum Roller
Manufacturer
Caterpillar
Crew
1 ea
Dimensions
Length, Overall
5,760 mm
Height To Top Of Cab
3,070 mm
Wheelbase
2,900 mm
Ground Clearance
448 mm
Operating Weight
12,130 kg
Automotive
Engine Name
3056E ATAAC
Engine Type
Diesel
Aspiration
turbocharged
Gross Power
112 kw
Net Power
107 kw
Fuel Capacity
330 Liters
Hydraulic System Fluid Capacity
64 Liters
Maximum Speed
11.4 km/h
Operating Voltage
24 V
Alternator Supplied Amperage
55 amps
Drum
Drum Width
2134 mm
Drum Diameter
1524 mm
Static Linear Load
32.2 kg/cm
Vibration Frequency 1
31.9 Hz
Nominal Amplitude - High
1.7 mm
Nominal Amplitude - Low
0.9 mm
Centrifugal Force - High
266 kN
Centrifugal Force - Low
133 kN
Protection
Hull Armor
INA
Applique Armor
INA
Mine Clearing
No
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
United States
Category
Smooth Drum Rollers and Vibratory Compactors
Land > Engineer Systems > Smooth Drum Rollers and Vibratory Compactors
Filter Label
C
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.76 m
Width
—
Height
—
Weight
—
Operators (2)
United States
Australia
