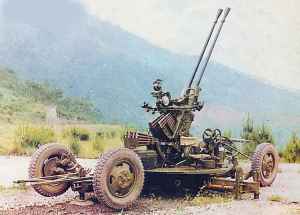

Type 65 Chinese 37mm Twin-Barrel Anti-Aircraft Gun
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Type 65 Chinese 37mm Twin-Barrel Anti-Aircraft Gun
Designation
—
Alternate Designation
—
Equipment Type
—
Manufacturer
—
Date of Introduction
1965
Description
The Type 65 is the twin-37mm towed anti-aircraft artillery (AAA) developed in the 1960s as a successor to the Soviet M1939 single-barrel 37mm AAA (produced in China as Type 55). The weapon was designed primarily to engage airborne targets within a distance of 8,500m (or slant range of 3,500m), but it can also be used against land or water surface targets. Based on the Type 65 design, the PLA developed a number of derivations including the Type 74/74SD towed AAA, Type 79-III towed AAA, Type 76 shipboard AAA, and Type 88 self-propelled AAA.
Ground Specifications
Crew
5
Mobility Type
Towed
Main Weapon
37mm Automatic Gun
Max Speed
60.0 km/h
Range
3.5 km
Variants
Type 74
The Type 74 is an improved variant of the Type 65 introduced in 1974. The weapon share the same 37mm cannon and ammunitions as the Type 65, but can be operated either manually or remotely by the fire-control unit consisting of an electro-optical director and a target searching radar. This enables the weapon to operate under day/night, all-weather conditions.
System
Alternative Designations
INA
Description
The Type 65 is the twin-37mm towed anti-aircraft artillery (AAA)
Crew
5 to 8
Carriage
4 Wheeled/ 2 Axle Towed
Primer Mover
INA
Max Towed Speed
60 km/h
Cross Country Tow Speed
25 km/h
Emplacement Time
1 min
Displacement Time
3 min
Fording Depth
0.7 m
Tuning Radius
8 m
Dimensions
Length, Traveling
6.21 m
Lenght, Barrel
2.73 m
Width
1.82 m
Height
2.28 m
Trail
4-wheel carriage;4 firing jacks
Weight, Firing
2,835 kg
Armament
Gun
Type 65
Caliber, Type
37-mm Automatic Gun
Number of Barrels
2 ea
Operation
Recoil
Service Life of Barrel
2,500+ rds
Barrel Change Time
2-3 min
Cyclic Rate of Fire
Cyclic: 320-360 rds/min (160-180/barrel)
Practical Rate of Fire
80 rds/min
Loader Type
Two 5-Round Clips
Reload Time
4-8 sec
Traverse
360 deg
Elevation
-5 to 85 deg
Elevation Rate
INA
Reaction time
INA
Main Armament Ammunition
Type
AP-T, HE-T, HEI-T
Max Effective (Slant) Range)
3,500 m
Max Effective (grnd targets) Range
3,500 m
Max Effective Altitude
3,000 m
Min Altitude
0 m
Self-destruct time
8-12 sec
Self-destruct range
3,700-4,700 m
Fire Control
Description
Sights w/magnification: optical mechanical computing sight
Azimuth warning receiver: 1l15-1
Off-carriage radar: Optional. The Chinese Type 311 continuous wave I/J-band fire control radar was designed and produced to support 37mm and 57mm guns. The trailer-mount radar with computer automation can conduct surveillance and target acquisition. It has at least three variants, with ranges of 30km (311-A), 35km (311-B), and 40km (311-C). Target tracking range is 25km for the -A variant. Emplacement time is 15 minutes. Radar gives user weapons night-time and adverse weather capability. This radar has been exported.
Other Fire Control
The gun is linked to the battery net which receives analog voice radio alerts for approaching aircraft, including direction and altitude. Guns and battery/ battalion have air watches and forward observers.
Details
Country of Origin
China
Category
Towed Anti-Aircraft Guns
Land > Air Defense > Towed Anti-Aircraft Guns
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.21 m
Width
1.82 m
Height
2.28 m
Weight
2835 kg
Operators (2)
China
Bangladesh
