1V22 / MP-22 Slovakian Amphibious Air Defense Control Vehicle

1V22

Air-launched Cruise Missile (ALCM)

Spotted an error? Sign in to suggest an edit.

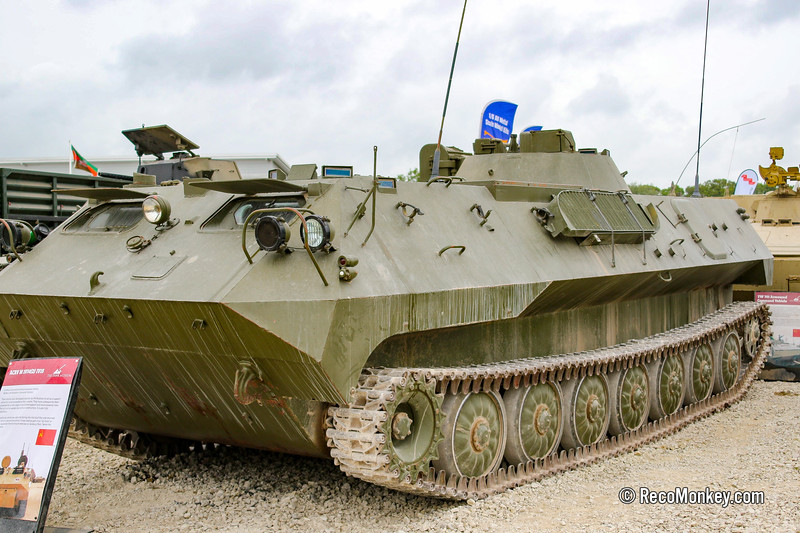

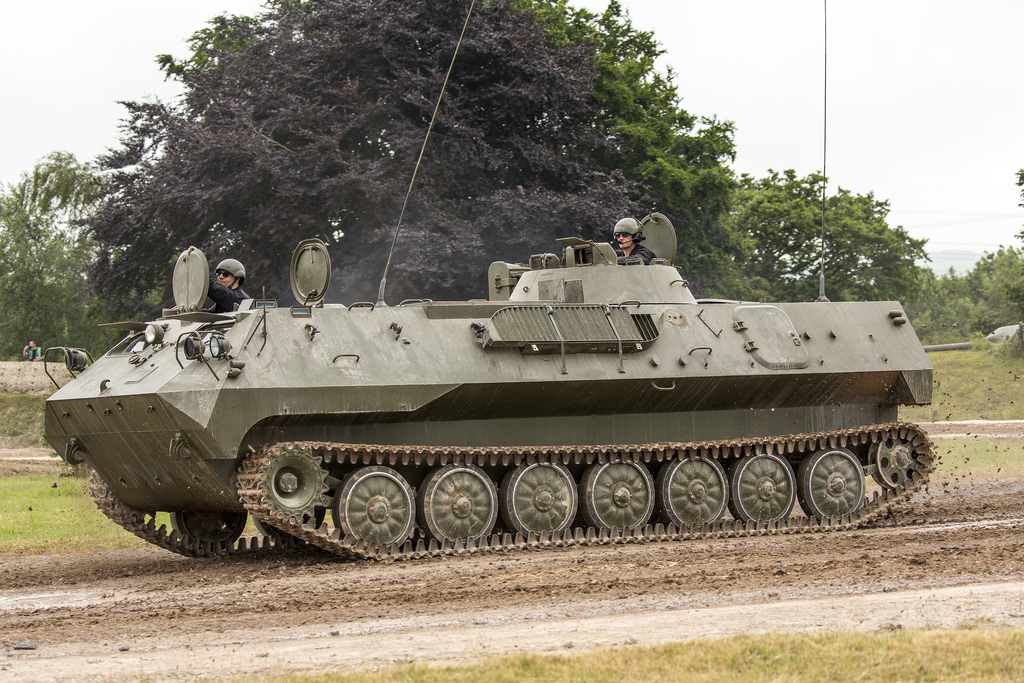

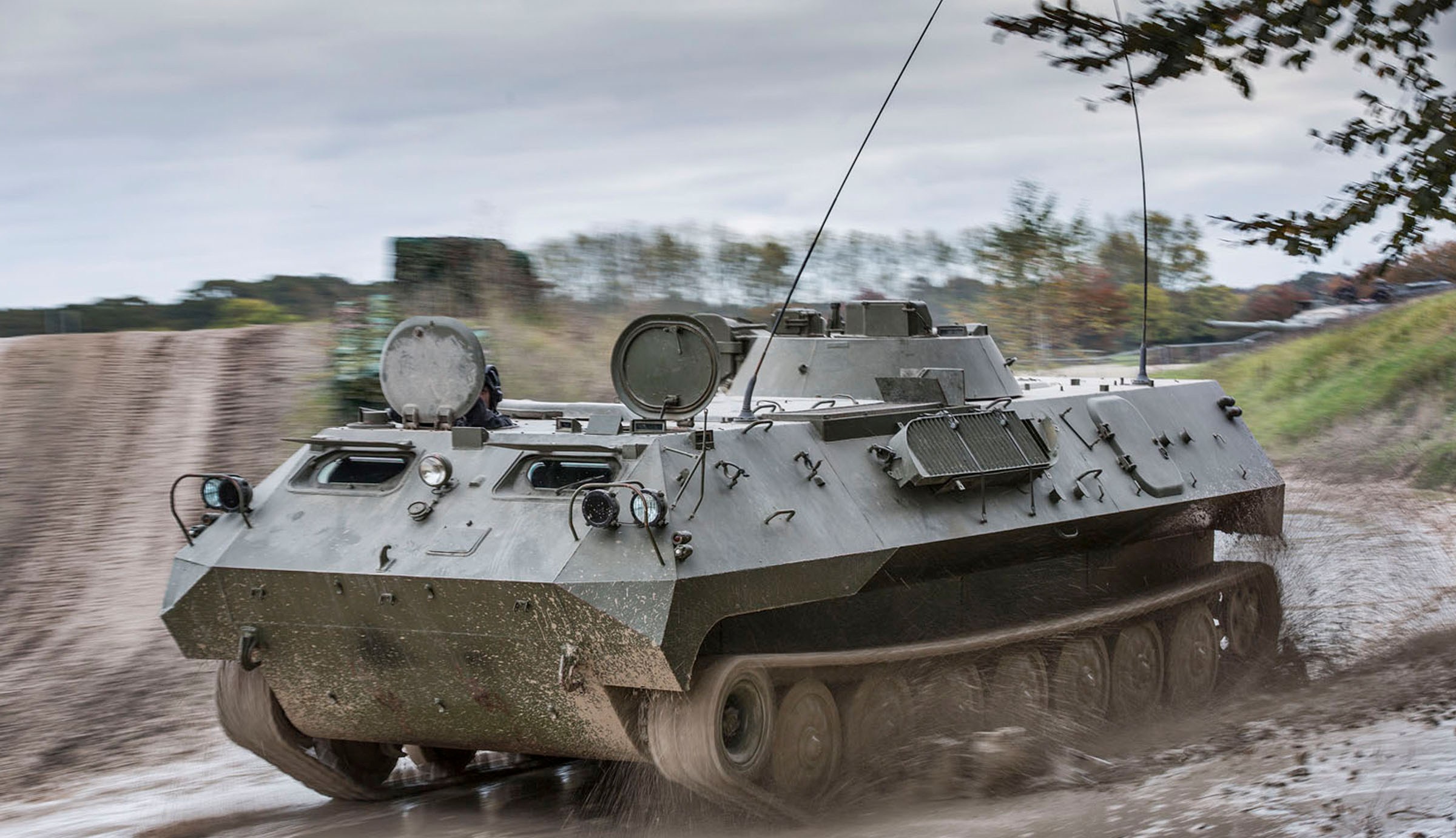

1V22 / MP-22 Slovakian Amphibious Air Defense Control Vehicle — ACRV_1V15_(CC).jpgTRADOC ODIN WEG

Basic Information

Name

1V22 / MP-22 Slovakian Amphibious Air Defense Control Vehicle

Designation

1V22

Alternate Designation

1V22; MP-22; M1974-2B

Equipment Type

Air-launched Cruise Missile (ALCM)

Manufacturer

—

Date of Introduction

1974

Description

The 1V22 / MP-22 Slovakian Air Defense Control Vehicles is an air defense command and control vehicle. Typically, this vehicle is used by the command staff of 9K331 "Tor" (SA-15 air defense units. It carries a telescopic mast that is mounted on the front left of the hull. The vehicle can be recognized by the presence of this mast, and four roof antennas angled towards the rear of the vehicle. Also, the 1V25 / MP-25 vehicle featuring radar data processor subsystems typically works alongside the 1V22.

Ground Specifications

Crew 5

Engine Diesel (240 hp)

NBC Protection Yes

Variants

1V25 / MP-25 Features radar processing subsystem, additional C3 equipment to support SA-15 batteries.

System

Alternative Designation 1V22; MP-22; M1974-2B

Type Air Defense Control Vehicle

Chassis MT-LBu

Crew 5 ea

Dimensions

Height, Overall 2.72 m

Length, Chassis Overall 7.26 m

Width, Overall 2.85 m

Weight INA

Automotive

Engine Name YaMZ-238

Engine Type Diesel

Engine Power 240 hp

Speed, Cross INA

Speed, Maximum Road 60 km/h

Speed, Maximum Swim 4.5 km/h

Fording Depth Amphibious

Sensors / Components

Fire Direction (Automated) 1V520

Fire Direction (Manual) PUO-7

Navigation 1T121-M Navigation System

Other Equipment 1D15 laser rangefinder, DSP-30 rangefinder, 1PN44 day / night sight, PAB-2AM aiming circle, DS-1 stereoscopic rangefinder, VOP vision blocks and driver periscopes.

Radar Data Processor T-235-1L

Main Weapon System

System

Name 1 x PKT 7.62mm General-Purpose Machine Gun

Type General-Purpose Machine Gun

Caliber 7.62 mm

Range, Direct Fire 1,500 m

Range, Maximum Effective, Day 1,000 m

Range, Maximum Effective, Night 1,000 m

Rate of Fire, Cyclic 650 rd/min (2-10 round bursts)

Fire on Move Yes

Sights Iron Sights

Protection

Armor, Hull 15 mm

Armor, Turret Front 20 mm

NBC Protection Yes

Smoke Equipment No

Image Sources

Notes https://www.alamy.com/stock-photo/acrv.html?sortBy=relevant; https://twitter.com/TankMuseum/status/1214953297074966528; https://www.recomonkey.com/Land-Platforms/Command-Signal-ArtilleryRecce/Artillery-Command-Recce/1V15/1V15;

Details

Country of Origin Russia

Category Land

Land

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

—

Width

2.85 m

Height

2.72 m

Weight

—

Operators (4)

Russia

Poland

Slovakia

CFE Treaty
