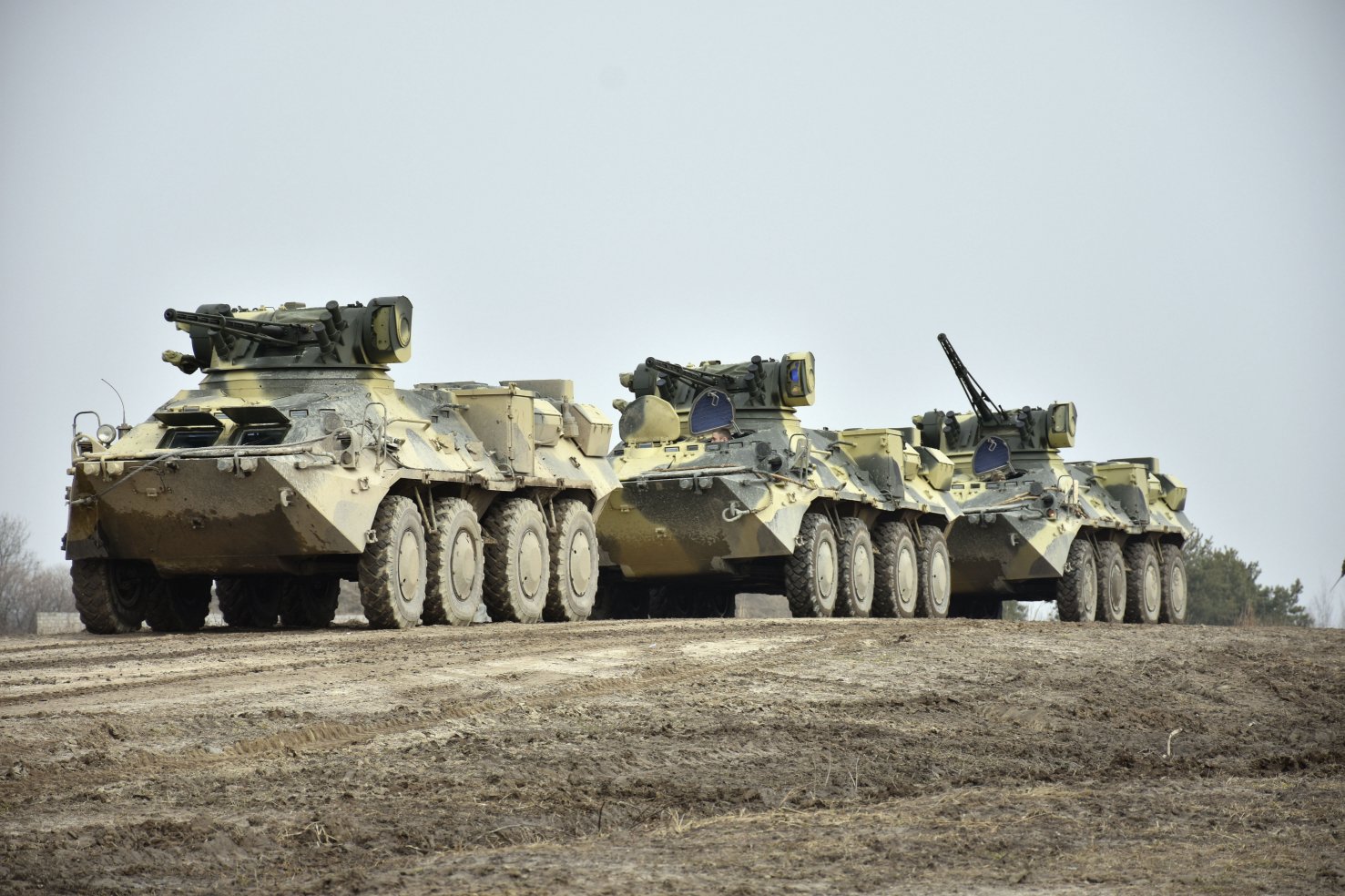

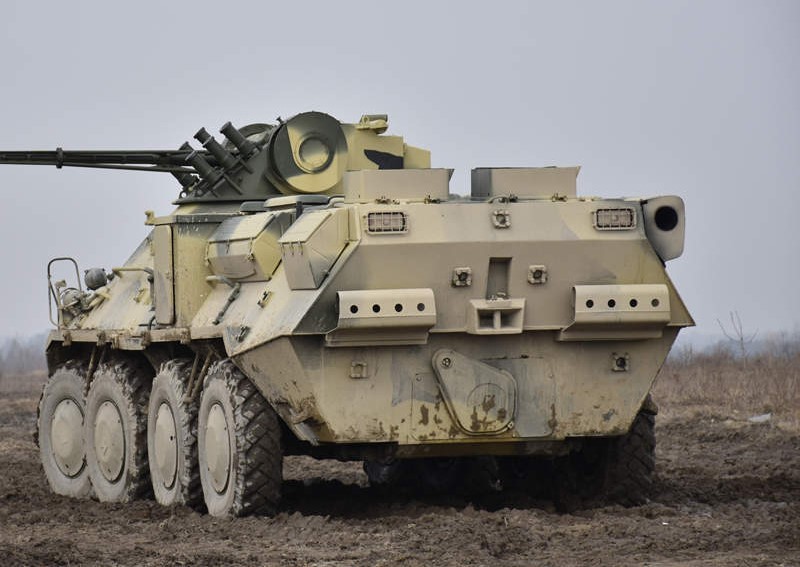

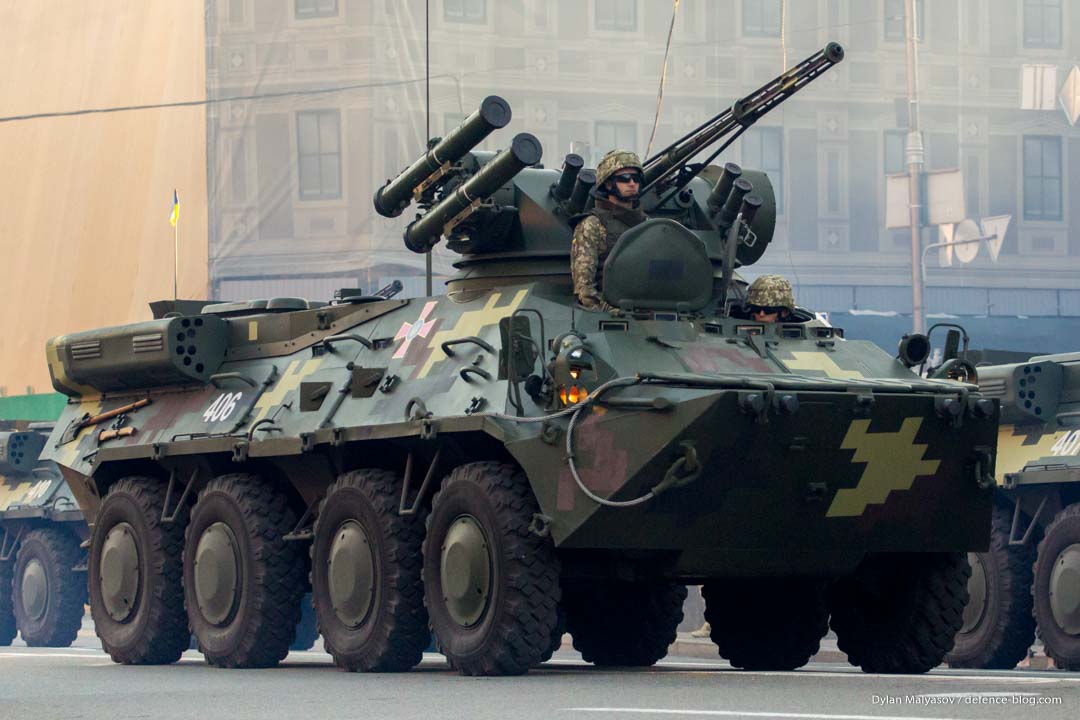

BTR-3DA Ukrainian 8x8 Amphibious Armored Personnel Carrier (APC)
BTR-3DA
Amphibious Armored Personnel Carrier (APC)
Other
Basic Information
Name
BTR-3DA Ukrainian 8x8 Amphibious Armored Personnel Carrier (APC)
Designation
BTR-3DA
Alternate Designation
BTR-3DA
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Company Kyiv Armored Plant
Date of Introduction
2015
Description
The BTR-3DA is an improved version of the Ukrainian-made BTR-3 8x8 armored vehicle personnel carrier designed and manufactured in Ukraine by the Company Kharkiv Morozov Machine Building Design Bureau. The vehicle is mainly used to transport mechanized infantry troops on the battlefield and to provide fire support in combat actions.
Ground Specifications
Crew
3
Engine
6-Cylinder Diesel (326 hp)
Active Protection
None
NBC Protection
Yes
Range
600.0 km
Variants
BTR-3U "Hunter"
Features a one-person KBA-105 "Shkval" unified fighting module which can accommodate 30mm gun, 7.62mm coaxial machine gun, 30mm automatic grenade launcher and anti-tank guided weapons. This module was developed by the State Scientific Technical Centre of Artillery & Rifle Arms of Ukraine. The Shkval fighting module design is versatile, but can also with another turret.
BTR-3U "Guardian"
Version for UAE Marines with "Buran-N1" turret.
BTR-3E
Features upgrade install of the UTD-20 engine.
BTR-3E1
Latest version with BM-3 "Shturm" turret and new engine MTU 6R106TD21
BTR-3E ARV
Armored Recovery Vehicle (ARV) with winch, crane and dozer blade.
BTR-3E 90
Heavy fire support vehicle with 90mm Cockerill main gun.
System
Alternative Designation
BTR-3DA
Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Company Kyiv Armored Plant
Family
BTR Series
Configuration
Wheeled 8 x 8
Crew
3 ea
Passenger Capacity
6 ea
Dimensions
Length
7.65 m
Width
2.932 m
Height
2.84 m
Weight, Combat
16,400 kg
Ground Clearance
INA
Automotive
Engine Name
Deutz BF6M 1015CP
Engine Type
6-cylinder V-Diesel engine
Engine Power
326 hp
Power-to-Weight Ratio
25.90 hp/t
Fuel Capacity
INA
Electrical System
24V
Steering
power-assisted on front four wheels
Maximum Land Speed
104 km/h
Maximum Water Speed
8 km/h
Range
600 km
Gradient
60%
Side Slope
40%
Vertical Obstacle
0.70 m
Trench
1.80 m
Main Weapon System
System
Name
1 x ZTM-1 Autocannon
Type
Autocannon
Turret
BM-3M "Shturm-M" weapon station
Caliber
30 mm
Length
INA
Barrel Length
INA
Weight
INA
Rate of FIre
330 rds/min in single-shot, burst, or automatic modes
Maximum Range
4,000 m with HE Rounds
Penetration
22 mm of steel set at 40° from a range of 500 m, which is reduced to 14 mm at 1,500 m and so could be considered the maximum effective combat range against armored targets.
Ammunition
Type
Rifle
Caliber
30 mm
Cartridge
30 × 165 mm
Basic Load
300
Coaxial Weapon System
Note
1 x 7.62 mm machine gun
Anti-Tank Guided Missile (ATGM)
System
Name
2 x Baryer Missile
Type
Anti-Tank Guided Missile (ATGM)
Mission
The anti-tank long-range guided missile system BARYER, a design by the Kyiv-based State Design Bureau Luch, is intended to defeat armored targets at distances from 100 to 5,000 meters.
Manufacturer
Luchs Design Bureau
Length
1.27 m
Diameter
0.13m
Weight
16 kg
Warhead Type
The missiles can be fitted with a tandem HEAT warhead or a HE fragmentation warhead with percussion core penetration.
Guidance System
The BARYER missile employs semiautomatic laser (SAL) guidance to enable the target, after being designated and lock-on, to be tracked automatically without further operator’s intervention (no man-in-the-loop scheme). For tracking the target, the operator employs a telescope sight, with the missile in flight being controlled and guided from a ground fi ring post. The target is designated and locked on using an optical tracker and a thermal-imaging sight, which allows 24-h operation in all weathers.
Penetration
The missile defeats armored infantry fighting vehicle (AIFV) protection systems of all kinds – be it a composite armor, active protection system, spaced armor or explosive reactive armor (ERA), and is capable of penetrating 800mm of Rolled Homogenous Armor (RHA) behind ERA.
Range
5,000 m
Fire Control
Name
Kashtan FCS
Computerized FCS
Yes
Thermal Sight Vehicle Commander
Yes
Thermal Sight Gunner
Yes
Main Gun Stabilization
Yes, SVU-500 weapon stabilizer
Laser Range Finder
Yes
Protection
Hull Armor
Protection against 7.62 mm ball rounds and artillery shell splinters. It seems that the front arc withstands 12.7 mm rounds.
Turret Armor
INA
Applique Armor
INA
Explosive Reactive Armor
No
Active Protection System
No
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes
Smoke Equipment
Yes
Details
Country of Origin
Ukraine
Category
Land
Land
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.65 m
Width
2.93 m
Height
2.84 m
Weight
16400 kg
Operators (1)
Ukraine
