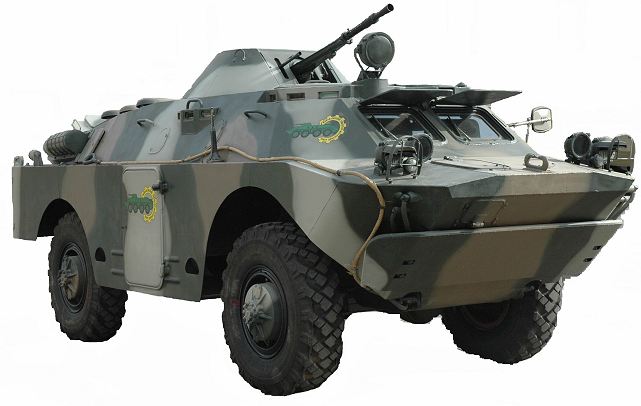

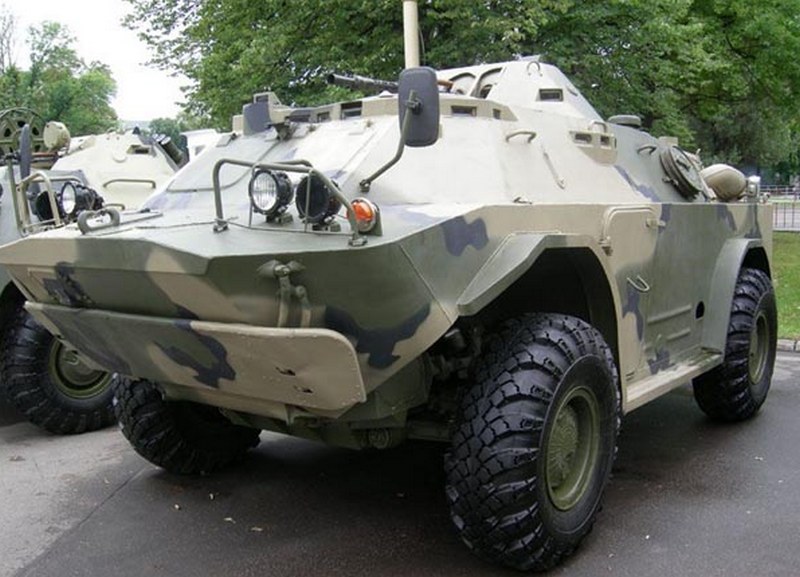

BRDM-2DI "Hazar" Ukrainian Amphibious Armored Reconnaissance Vehicle
BRDM-2DI "Hazar"
Amphibious Combat Reconnaissance Vehicle (CRV)
Other
Basic Information
Name
BRDM-2DI "Hazar" Ukrainian Amphibious Armored Reconnaissance Vehicle
Designation
BRDM-2DI "Hazar"
Alternate Designation
BRDM-2DI "Hazar"
Equipment Type
Amphibious Combat Reconnaissance Vehicle (CRV)
Manufacturer
Mykolayv Armor Tank Plant
Date of Introduction
2015
Description
BRDM-2DI "Hazar" Armored Reconnaissance and Patrol Vehicle is a modernized version of the vehicle BRDM-2. It is a two-axle, all-wheel drive vehicle, which has high dynamic qualities, extended cruising range, high cross-country capacity, and is amphibious. The vehicle is intended for the conduct of reconnaissance by fight and fire support of mechanized infantry sub-units.
Ground Specifications
Crew
4
Engine
Diesel (138 hp)
Range
500.0 km
Variants
BRDM-2-M98/Zbik-A/BRDM-2A
Upgraded turret, 12.7mm machine gun, and battlefield surveillance system.
BRDM-2-M97/Zbik-A/BRDM-2B
20 upgrades including larger turret, 12.7mm machine gun, ATGM, night sensors, radar, and improved space design.
BRDM-2A (Russia)
Better engine and other upgrades.
BRDM-2SMD/BRDM-2D (Russia)
145hp engine and other improvements.
BRDM-B (Czech Republic)
Overhead turret, 12.7mm machine gun, TV/thermal sight, new engine, and space for 6 soldiers.
System
Alternative Designation
BRDM-2DI "Hazar"
Type
Amphibious Armored Reconnaissance Vehicle
Manufacturer
Mykolayv Armor Tank Plant
Description
Improved BRDM-2 with side hatches on each side of the vehicle.
Crew
4 ea
Dimensions
Height, Overall
2.57 m
Length, Chassis Overall
5.78 m
Width, Overall
2.78 m
Height, Overall
2.57 m
Weight
7.6 tons
Automotive
Engine Name
IVECO
Engine Type
Diesel
Engine Power
138 hp
Fording Depth
Amphibious
Range
500 km
Speed, Average Cross
INA
Speed, Maximum Road
85 km/h
Speed, Maximum Swim
10 km/h
Armament
Machine Gun
Name
1 x KPVT 14.5mm Heavy Machine Gun
Type
Heavy Machine Gun
Caliber
14.5 mm
Estimated Ammunition Carried
500 rds ready
Types of Ammunition Carried
INA
Maximum Effective Range:
1,200 m
Anti-Aircraft
1,500 m
Armor Penetration
INA
Muzzle Velocity
900 m/s
Protection
Active Protection System
INA
Armor, Applique
INA
Armor, Explosive Reactive
INA
Armor, Turret Front
14 mm
NBC Protection
Collective
Self entrenching blade
No
Smoke Equipment
INA
Survivability Equipment
Internal fire suppression system
Details
Country of Origin
Ukraine
Category
Reconnaissance Vehicles
Land > Infantry Vehicles > Reconnaissance Vehicles
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
Ukraine
