VLRA 4x4

VLRA 4x4

Military Trucks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
VLRA 4x4
Designation
VLRA 4x4
Alternate Designation
TPK 415 SM3/FSP, TPK 415 STL, TPK 420 BL4, TPK 420 BL4-MO, TPK 420 PMB, TPK 420 SL7, TPK 420 SM3, TPK 420 STL, TPK 420 VCT, TPK 425 SAM, TPK 425 STL/SH, TPK 430 F, TPK 432 SB, TPK 433 SB, TPK 436 SCM, TPK 436 STL/SH, Vehicule de Liaison de Reconnaissance et d'Appui
Equipment Type
Military Trucks
Manufacturer
ACMAT
Date of Introduction
—
Description

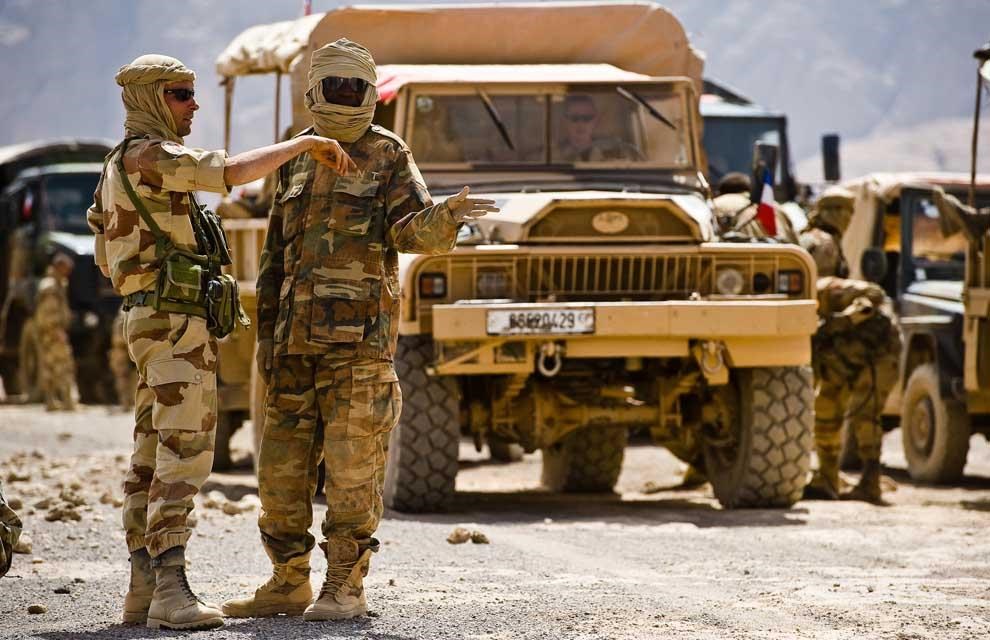

The VLRA (Vehicule de Liaison de Reconnaissance et d'Appui / Liaison, Reconnaissance and Support Vehicle) 4x4 is a family of all wheel drive military trucks developed by ACMAT and capable of carrying payloads ranging from 1.5-ton to 3.5-ton. The VLRA 4x4 is available in the following roles: command and communications vehicle (TPK 420 VCT); multipurpose tactical vehicles (TPK 425 STL/SH and TPK 436 STL/SH); breakdown logistic vehicle (TPK 420 SL7 and TPK 436 SCM); personnel, cargo or weapon system carriers (TPK 415 SM3/FSP, TPK 420 SM3, TPK 420 STL and TPK 420 PMB mortar carrier); and ambulances van (TPK 425 SAM, TPK 430 F, TPK 432 SB and TPK 433 SB). The VLRA 4x4 as multipurpose tactical vehicle can carry a load of 3.5-ton over ranges of 500 km to 1,000 km depending on the number of fuel tanks (1 or 2 x 180-l). The vehicle's cab accommodates a three-man crew. The VLRA 4x4 is powered by a 6 cylinder Perkins diesel engine rated at 145-hp. VLRA vehicles are air transportable and can be air dropped by tactical transport aircraft such as C-130 and C-160. The TPK 420 BL4 is a new version featuring a new forward-cab design and improved armor.

Ground Specifications
Crew 3
Mobility Type Wheeled (4x4)
Range 1000.0 km
Overview (Deagel)
Group Military Trucks
Status Active
Also Known As TPK 415 SM3/FSP, TPK 415 STL, TPK 420 BL4, TPK 420 BL4-MO, TPK 420 PMB, TPK 420 SL7, TPK 420 SM3, TPK 420 STL, TPK 420 VCT, TPK 425 SAM, TPK 425 STL/SH, TPK 430 F, TPK 432 SB, TPK 433 SB, TPK 436 SCM, TPK 436 STL/SH, Vehicule de Liaison de Reconnaissance et d'Appui
Origin France
Contractor ACMAT
Total Production ?
Specifications (Deagel)
Crew 3
Wheel Drive 4
Wheels 4
Mass — Cargo 3,500 kilogram
Mass — Empty Weight 5,900 kilogram
Mass — Max Weight 9,400 kilogram
Performance — Max Range 1,000 kilometer
Power — Power 145 hp
Volume — Fuel Tank Capacity 360 liter
Variants
Variant 1 VLRA 4x4
Variant 2 VLRA 6x6
Variant 3 VLRA 2
Details
Country of Origin France
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
9400 kg
Related Equipment (1)
Operators (7)
France
Botswana
Cameroon
Morocco
Oman
Saudi Arabia
Senegal
