ARMA 6x6
ARMA 6x6
Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ARMA 6x6
Designation
ARMA 6x6
Alternate Designation
—
Equipment Type
Wheeled Armored Vehicles
Manufacturer
Otokar
Date of Introduction
2010
Description

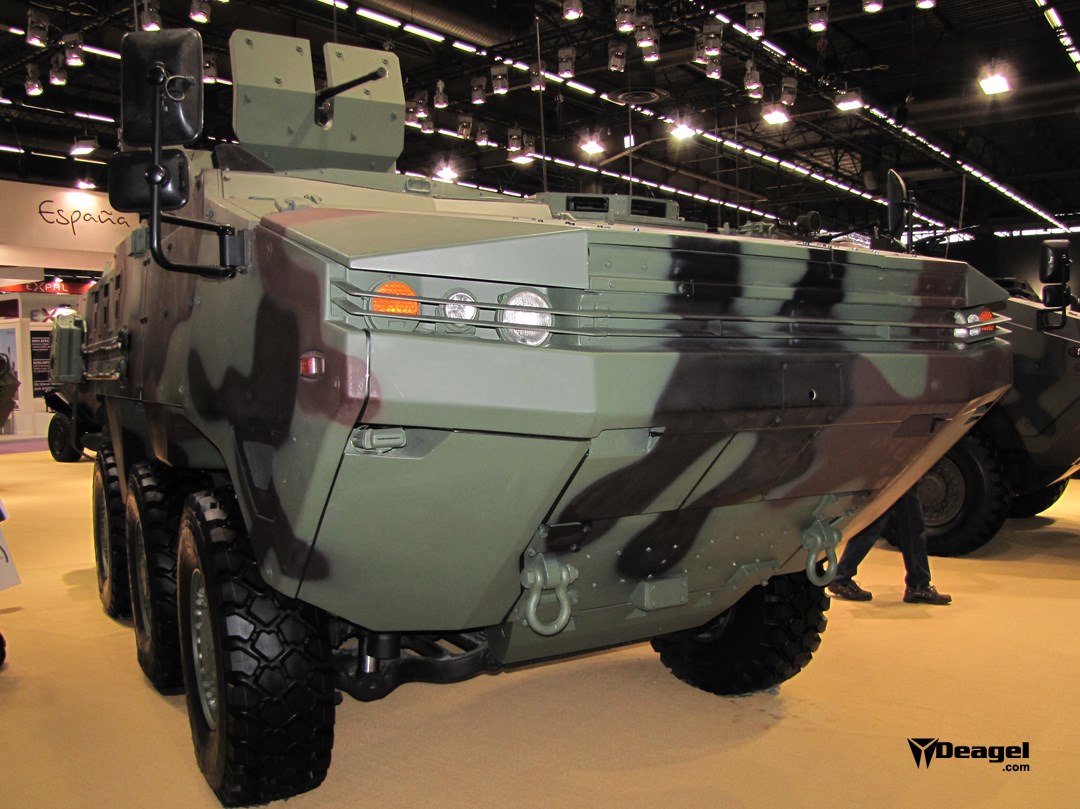

The ARMA 6x6 is a 18-ton class wheeled combat vehicle that can be airlifted by C-130-sized aircraft. Its crew consists of a driver, a commander and up to eight fully equipped infantrymen. The front two axles are steerable enabling it to make a turning radius of 7.8 m and the vehicle rides on independent hydro-pneumatic suspension, offering respectable off-road mobility and comfort. It is a powered by a 450-hp water-cooled turbo diesel engine giving a top speed of 105 kph. Depending upon terrain conditions ARMA can be driven in 6x6 or 6x4 modes.
Ground Specifications
Crew
2
Troop Capacity
8
Mobility Type
Wheeled (6x6)
Max Speed
105.0 km/h
Overview (Deagel)
Group
Wheeled Armored Vehicles
Status
Active
Origin
Turkiye
Contractor
Otokar
Initial Operational Capability (IOC)
2010
Total Production
203
Specifications (Deagel)
Crew
2
Troops
8
Wheel Drive
6
Wheels
6
Degree — Approach Angle
45 °
Degree — Departure Angle
45 °
Dimensions — Height
2.2 meter
Dimensions — Length
6.4 meter
Dimensions — Width
2.7 meter
Mass — Combat Weight
18,500 kilogram
Mass — Payload
4,500 kilogram
Percentage — Gradient
60 %
Percentage — Side Slope
30 %
Performance — Fording Depth
1.2 meter
Performance — Step Climbing Ability
0.60 meter
Performance — Turning Radius
7.8 meter
Power — Power
450 hp
Speed — Top Speed
105 kph
Variants
Variant 1
ARMA 6x6
Variant 2
ARMA 8x8
Details
Sources
deagel.com: https://www.deagel.com/x/x/a002510
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.4 m
Width
2.7 m
Height
2.2 m
Weight
18500 kg
Related Equipment (1)
Variant of
Operators (2)
Bahrain
Estonia
