Sandhayak Class Indian Survey Vessel
Sandhayak Class
Support Vessel
Other
Basic Information
Name
Sandhayak Class Indian Survey Vessel
Designation
Sandhayak Class
Alternate Designation
Sandhayak Class
Equipment Type
Support Vessel
Manufacturer
Garden Reach Shipbuilders and Engineers
Date of Introduction
2021
Description

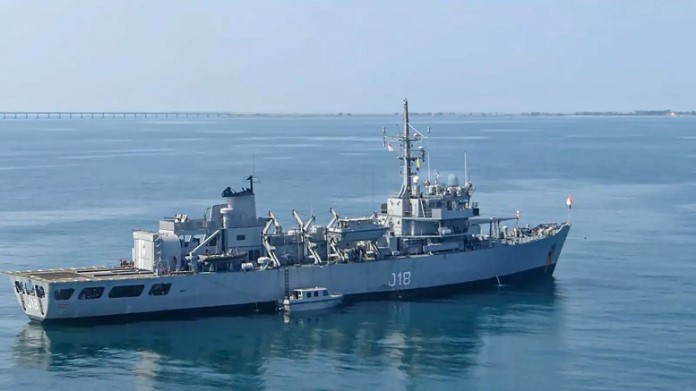

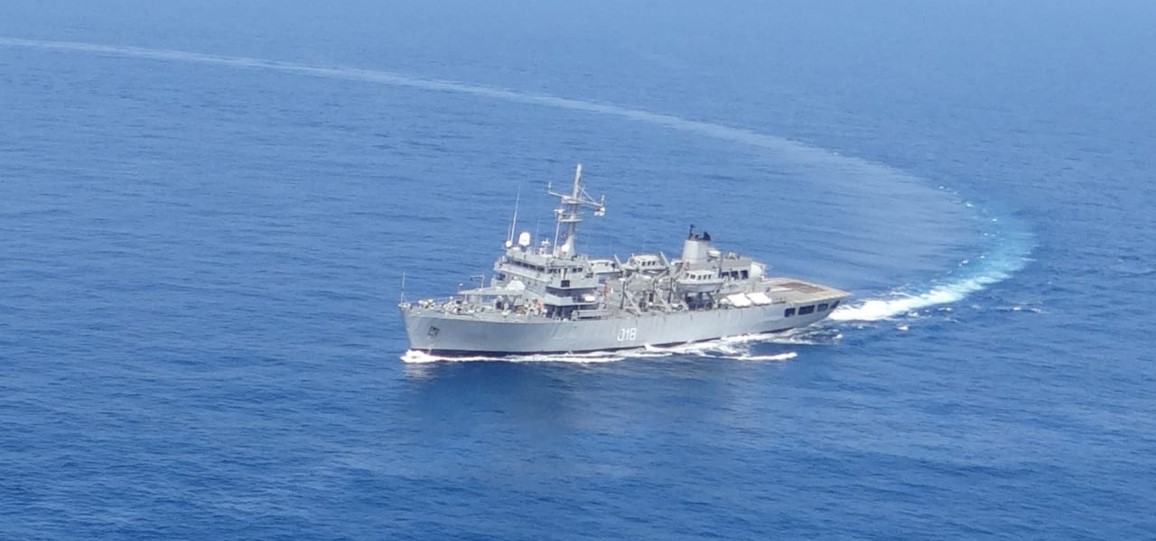

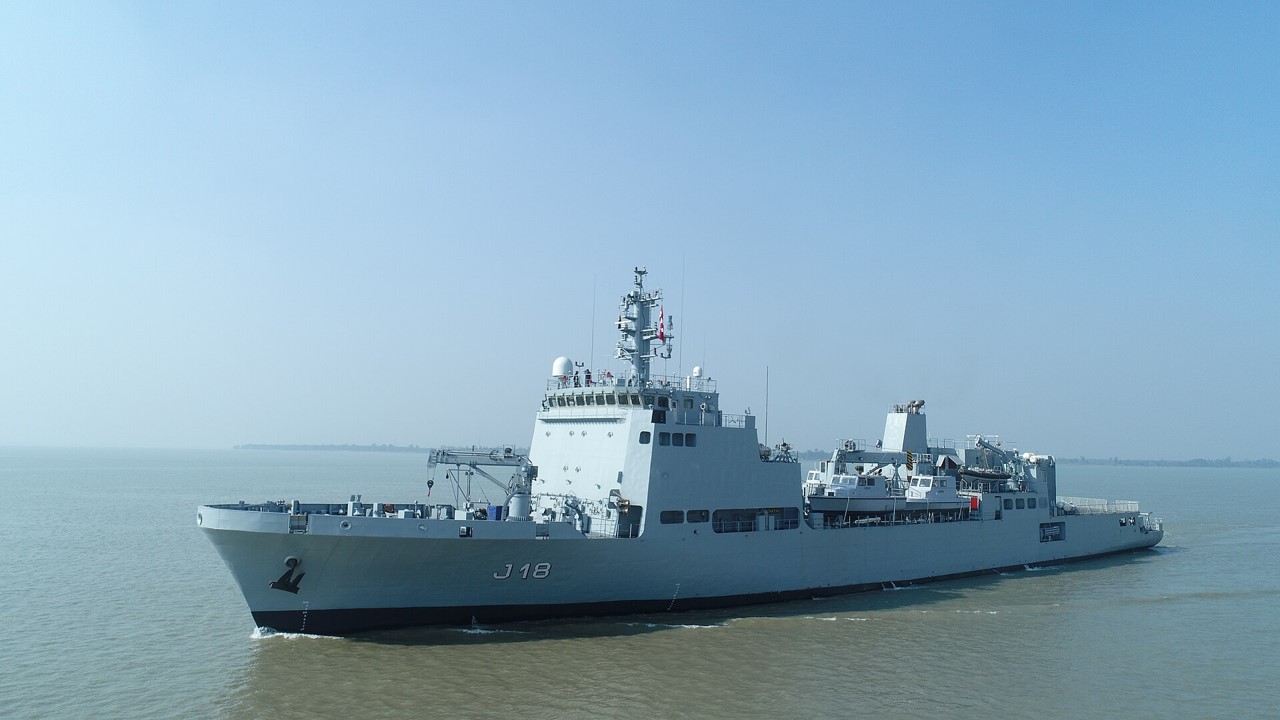

The Sandhayak Class Indian Survey Vessel is a series of four survey vessels being built by Garden Reach Shipbuilders and Engineers (GRSE), Kolkata, for the Indian Navy. The primary role of the ship would be to conduct coastal and deep-water hydrographic surveys of ports, navigational channels, and exclusive economic zones and collect oceanographic data for defense. Their secondary roles would be to perform search and rescue, ocean research, and function as hospital ships for casualties.
Naval & Littoral Specifications
Crew
235
Beam
16.00 m
Draft
2.80 m
Variants
Sandhayak
Commissioned: 2024
Status: Active
Nirdeshak
Commissioned: 2024
Status: Active
Ikshak
Commissioned: 2025 (expected)
Status: Sea Trials
Sanshodhak
Commissioned: 2025 (expected)
Status: Sea Trials
System
Alternative Designation
Sandhayak Class
Type
Survey Vessel
Builder
Garden Reach Shipbuilders and Engineers
Crew
235 ea
Note
Secondary roles include SAR, disaster relief roles, and equipped with limited facilities to serve as hospital ships. Telescopic hangar. Embark Kongsberg Maritime HUGIN AUVs. Equipped with deep and shallow-water multibeam echosounders, ROV, and side-scan sonar.
Dimensions
Length
110.2 m
Height
INA
Beam
16.0 m
Draft
2.8 m
Displacement, Standard
2,643.9 tons
Displacement, Full Load
3,564.8 tons
Propulsion System
Engine Name
2 x MAN 9L27/38
Engine Type
Diesel
Engine Power
8,837.5 hp
Maximum Range
12,000 km
Maximum Speed
18 kt (33.3 km/h) (20.7 mph)
Main Weapon System
Guns
2 x 12.7 mm MGs. 2 x 7.62 mm MGs.
Radar Systems
Surface Search/Navigation Radar
2 x I-Band Radars.
Aviation
Helicopters
1 x HAL Dhruv Utility Helicopter.
Protection
Hull
INA
Countermeasures
INA
NBC Water Washdown System
Yes
Details
Country of Origin
India
Category
Special Purpose Ships
Naval > Special Purpose Ships
Filter Label
S
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
110.2 m
Width
16 m
Height
—
Weight
3564800 kg
Operators (1)
India
