Eagle V Swiss 6x6 Tactical Vehicle

Eagle V

Tactical Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Eagle V Swiss 6x6 Tactical Vehicle
Designation
Eagle V
Alternate Designation
Eagle V
Equipment Type
Tactical Vehicle
Manufacturer
The Eagle V 6x6 is a modern wheeled tactical armored vehicle developed by General Dynamics European Land Systems-Mowag (GDELS-Mowag), a Swiss company.
Date of Introduction
2012
Description

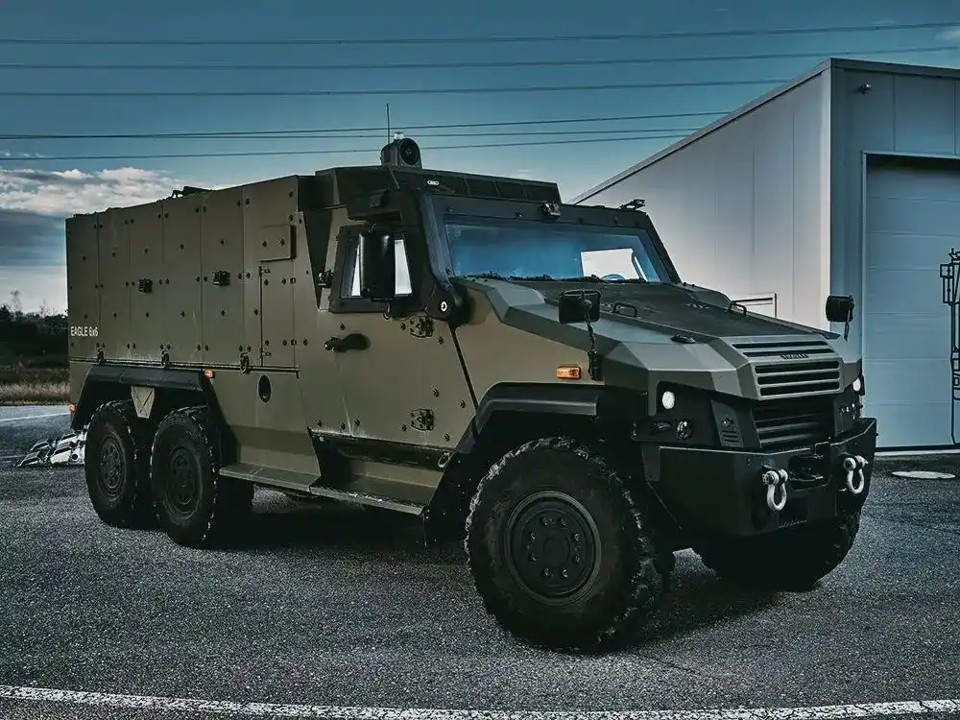

The Eagle V Swiss 6x6 Tactical Vehicle represents the latest evolution of the successful Eagle family of protected vehicles and is specifically engineered to bridge the gap between lightweight mobility platforms and heavier mine-resistant protected vehicles. The Eagle V 6x6 evolved from the earlier Eagle IV 4x4 platform, with development driven by operational feedback from international military users. The platform maintains approximately 80% commonality between its 4x4 and 6x6 variants, enabling streamlined logistics and training across both configurations. The 6x6 development was specifically inspired by requirements from the Australian Army and later adopted by Swiss, German, and Danish forces. The vehicle incorporates design elements from both the Eagle IV and the DURO IIIP tactical truck family, creating a proven engineering foundation with real-world combat heritage. The Eagle V 6x6 occupies a distinct niche within the global light protected vehicle market. Compared to competitors such as the American Oshkosh JLTV, Italian Iveco LMV2, and French Arquus Sherpa Light, the Eagle V combines superior payload capacity with integrated mine protection and modular armoring without the weight penalties of larger MRAP platforms. Its balanced design enables deployment across diverse mission sets—from high-intensity warfare to peacekeeping operations—while maintaining logistical and training efficiency across allied forces. The platform's proven reliability in multiple operational theaters, combined with its European supply chain and technical support infrastructure, has established it as a cornerstone of NATO ground mobility modernization efforts.

Ground Specifications
Crew 2
Mobility Type Wheeled (6x6)
Engine Turbocharged Diesel (245 hp)
NBC Protection Yes
Max Speed 110.0 km/h
Range 700.0 km
Variants
Armored Personnel Carrier (APC) Rapid troop transport with protection.

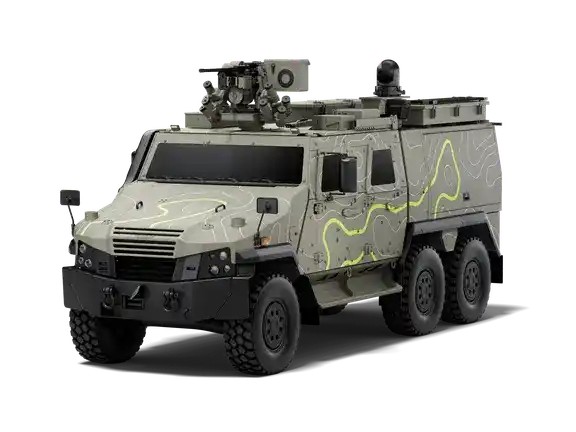

Reconnaissance/Ground Surveillance Multi-sensor system integration (Swiss TASYS system noted).
Command and Control Mobile command center with communications suite

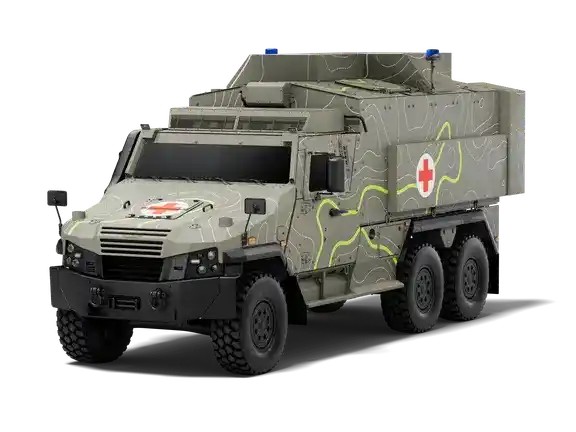

Medical Evacuation (mgSanKfz) Protected ambulance configuration for casualty evacuation. The medical evacuation variant, adopted by Germany, features a flexible stretcher loading system and advanced medical apparatus for transporting up to two patients with onboard medical personnel. The vehicle's payload capacity allows integration of advanced field medical equipment while maintaining full protection.
NBC Detection Nuclear, biological, chemical threat detection.
Observation Post Forward observation for artillery coordination.

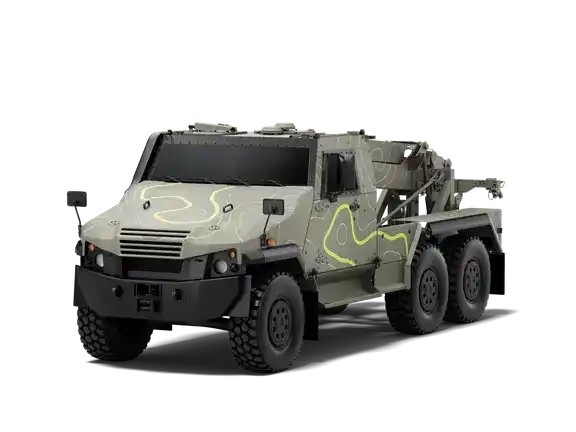

Logistics/Recovery Supply transport and vehicle recovery.
System
Alternative Designation Eagle V
Type Tactical Vehicle
Manufacturer The Eagle V 6x6 is a modern wheeled tactical armored vehicle developed by General Dynamics European Land Systems-Mowag (GDELS-Mowag), a Swiss company.
Configuration 6x6
Crew 2 ea
Passengers 12 ea
Internal Volume 14.5 to 16 cubic meters
Payload Capacity 6,300 kg
Dimensions
Length 6.9 m
Width 2.2 m
Height 2.3 m
Wheelbase 3.8 m
Weight, Combat 15,000 kg
Automotive
Engine Name Cummins ISB 6.7L E3
Engine Type Common Rail turbodiesel engine
Engine Power 245 hp
Maximum Range 700 km
Maximum Speed 110 km/h
Amphibious No
Gradient 60%
Side Slope INA
Vertical Step 0.5 m
Trench INA
Fording INA
Approach Angle 45 deg
Departure Angle 51 deg
Main Weapon System

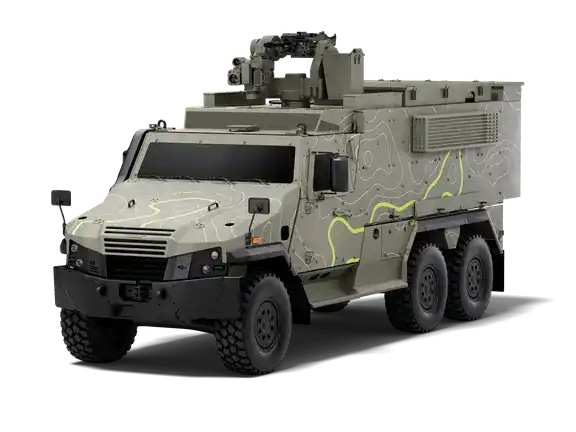

Notes The vehicle's roof can accommodate a variety of remote weapon stations (RWS) or single-operator open-top turrets. Common armament configurations include: 7.62-millimeter general-purpose machine guns, 12.7-millimeter Browning M2 heavy machine guns, 40-millimeter automatic grenade launchers, Integrated targeting systems with stabilized day and thermal imaging sights. The German military has integrated the FLW 100 and FLW 200 remote weapon stations, enabling precise targeting and engagement while protecting gunners within the armored hull.
Protection
Armor The Eagle V 6x6 is engineered with a double V-shaped floor and integrated internal decoupling measures specifically designed to minimize mine blast penetration and distribute shock loads away from the crew compartment. This design provides inherent mine protection comparable to MRAP-class vehicles despite the platform's lighter weight. The vehicle meets STANAG 4569 ballistic protection standards, with baseline armor providing Level 1 protection against 7.62-caliber small arms fire and artillery shell fragments.
Applique Armor Modular add-on armor kits—constructed from steel and composite materials—enable customers to upgrade protection to Level 3, capable of defeating 7.62-millimeter armor-piercing ammunition. Additional upgrades provide Level IIa mine protection, enabling the vehicle to withstand mine detonations of up to 6 kilograms of TNT beneath each wheel. Optional RPG protection measures can be integrated for operations in high-threat environments.
NBC Protection Yes
Smoke Equipment INA
Details
Country of Origin Switzerland
Category Wheeled Light Armored Vehicles
Land > Infantry Vehicles > Wheeled Light Armored Vehicles
Filter Label
E
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.9 m
Width
2.2 m
Height
2.3 m
Weight
15000 kg
Operators (3)
Germany
Denmark
Switzerland
