Krpan 8x8

Krpan 8x8

Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Krpan 8x8
Designation
Krpan 8x8
Alternate Designation
—
Equipment Type
Wheeled Armored Vehicles
Manufacturer
Sistemska Tehnika Armas
Date of Introduction
2006
Description

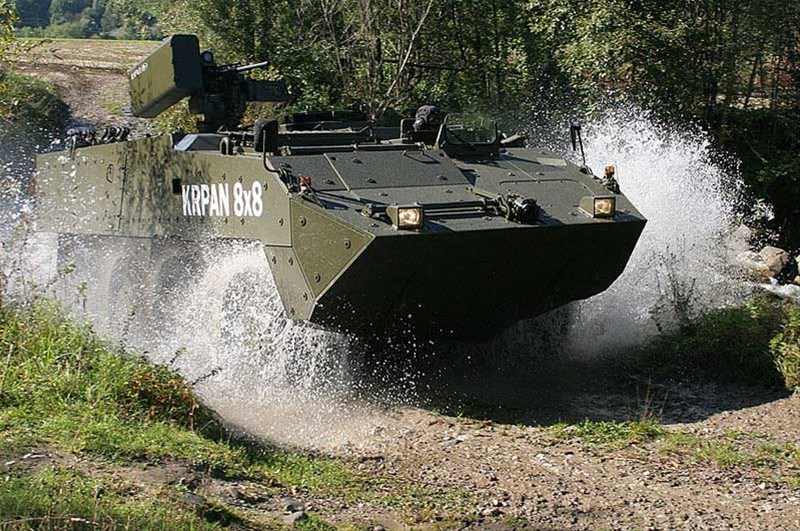

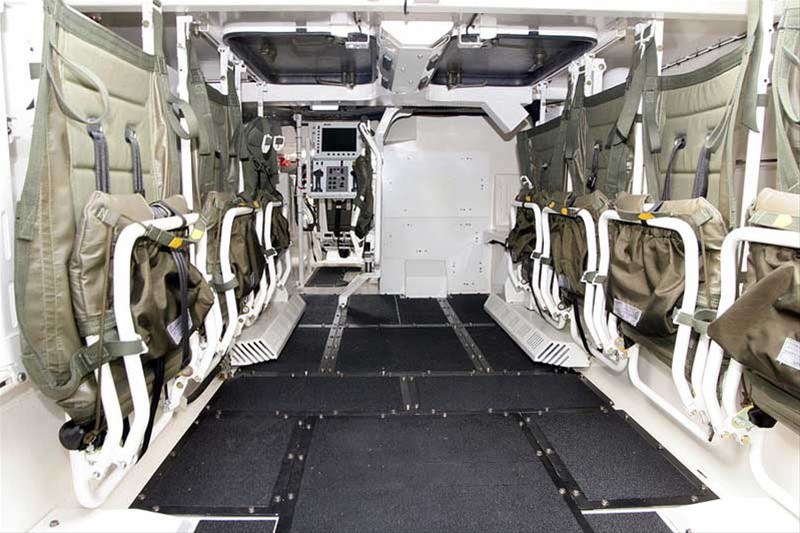

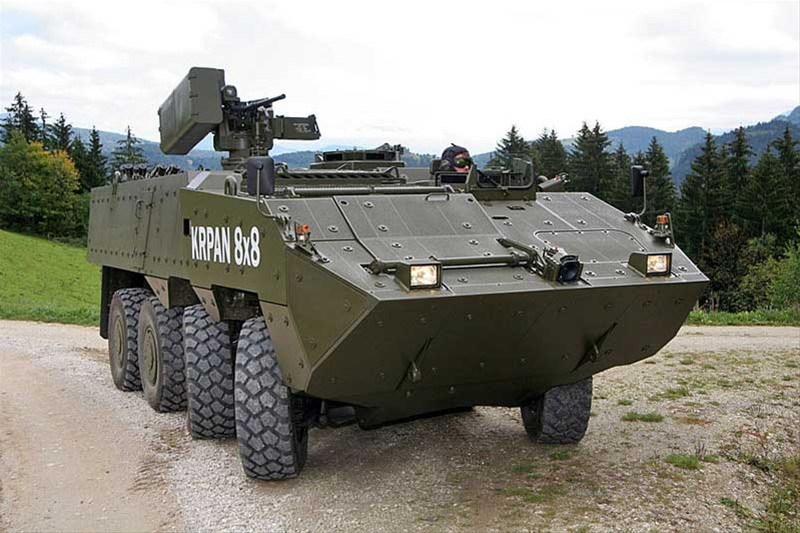

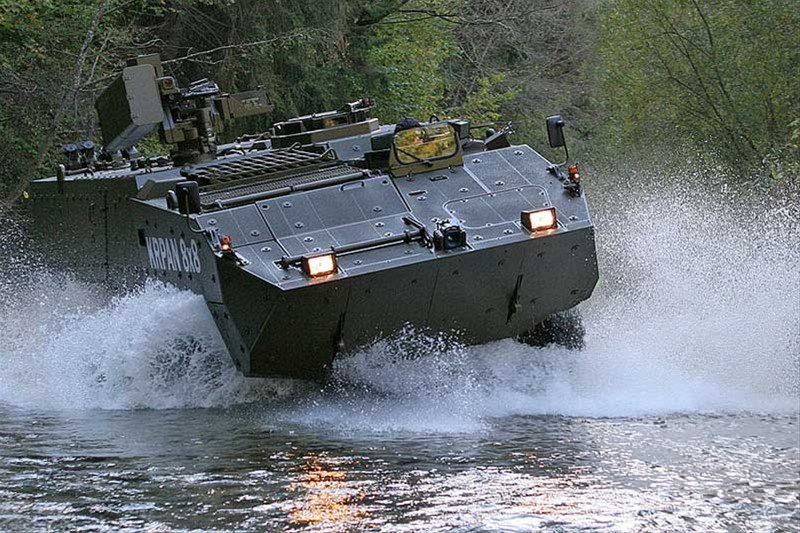

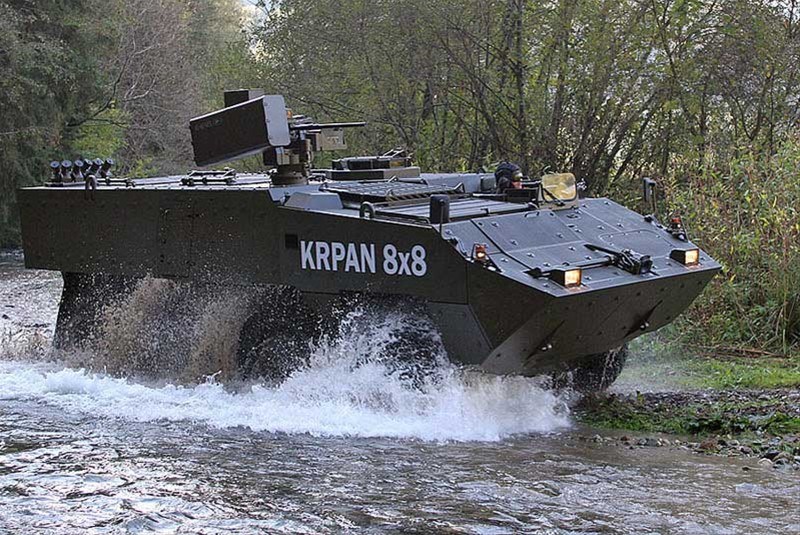

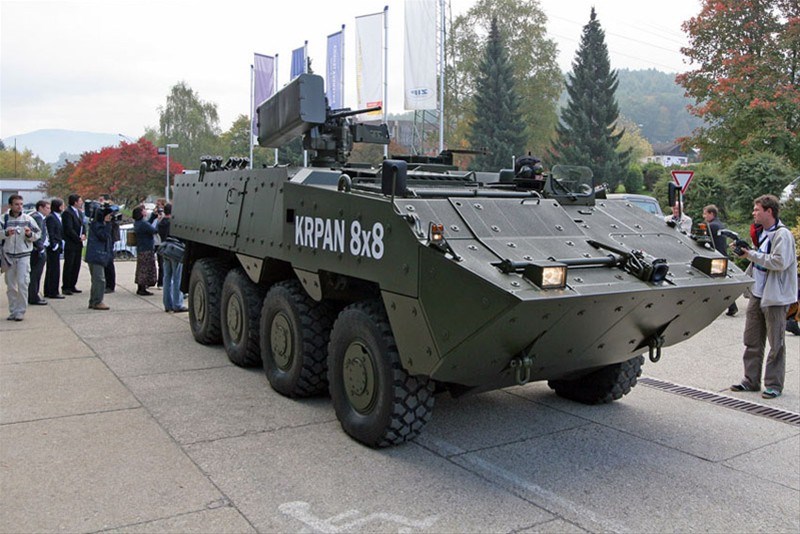

Krpan 8x8 is a lighter variant of Steyr-Daimler-Puch Spezialfahrzeug Pandur II 8x8 wheeled armored vehicle manufactured by Sistemska tehnika under license in Slovenia. Krpan 8x8 is an amphibious vehicle suitable for a wide range of missions such as armored personnel carrier, mortar vehicle, command post and infantry fighting vehicle. Powered by a 405-hp turbo diesel engine high mobility Krpan achieves a top speed of 105 kph on road. A variety of medium caliber guns are available for this vehicle as well as large caliber guns of up to 105mm or a 120mm mortar. Krpan vehicles can transport a 9/10-man squad and a two-man crew. Currently, the Krpan Infantry Carrier Vehicle (ICV) is equipped with a 12.7mm machine gun and features room for 12 passengers including the two-man crew. The mortar carrier variant is equipped with AMOS turret-mounted mortar weapon system. The Infantry Fighting Vehicle (IFV) Variant turret is equipped with a Mauser Mk 30-2 30mm gun and a 7.62mm coaxial machine gun along with a eight-man squad and a crew of three. The command post vehicle carries a six-man crew.

Ground Specifications
Crew 2
Troop Capacity 12
Mobility Type Wheeled (8x8)
Main Weapon 30mm MK 30-2 gun (30mm)
Max Speed 105.0 km/h
Range 700.0 km
Overview (Deagel)
Group Wheeled Armored Vehicles
Status Active
Origin Slovenia
Contractor Sistemska Tehnika Armas
Initial Operational Capability (IOC) October 2006
Total Production ?
Specifications (Deagel)
Crew 2
Troops 12
Wheel Drive 8
Wheels 8
Dimensions — Ground Clearance 0.45 meter
Dimensions — Height 2.1 meter
Dimensions — Length 7.4 meter
Dimensions — Main Gun Caliber 30 millimeter
Dimensions — Track 2.2 meter
Dimensions — Width 2.7 meter
Mass — Combat Weight 22,000 kilogram
Mass — Payload 7,150 kilogram
Performance — Max Range 700 kilometer
Power — Power 405 hp
Speed — Top Speed 105 kph
Speed — Top Swimming Speed 10 kph
Volume — Fuel Tank Capacity 375 liter
Gear (Deagel)
Item 1 Medium Caliber Cannons: MK 30-2 (1)
Item 2 Weapon Stations: RCWS-30 (1)
Details
Country of Origin Slovenia
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.4 m
Width
2.7 m
Height
2.1 m
Weight
22000 kg
Operators (1)
Slovenia
