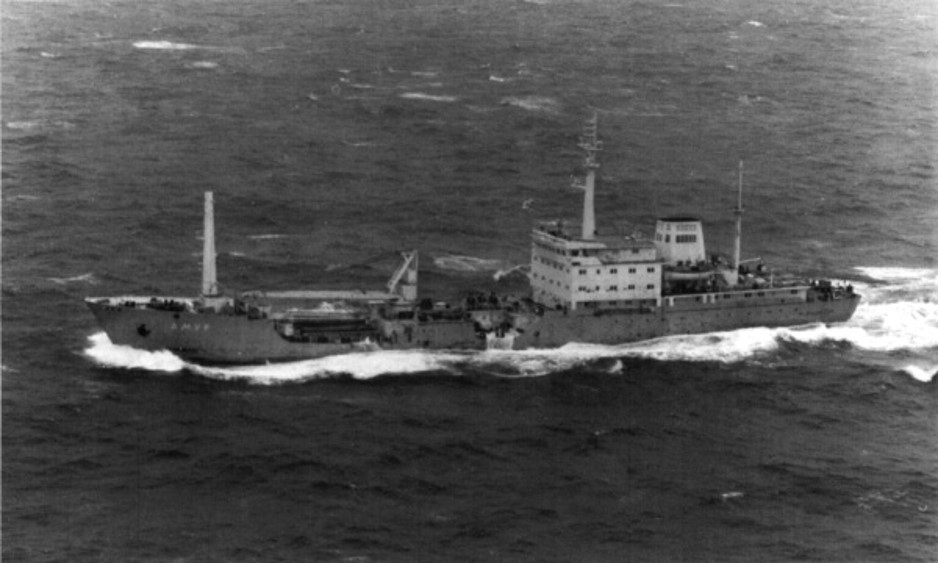

Belyanka Class (Project 11510 Class) Russian Radioactive Waste Tanker

Belyanka-Class

Oil Tanker
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Belyanka Class (Project 11510 Class) Russian Radioactive Waste Tanker
Designation
Belyanka-Class
Alternate Designation
Belyanka-Class; Project 11510 Class
Equipment Type
Oil Tanker
Manufacturer
Karemaki Zavod
Date of Introduction
1986
Description

The Belyanka Class (Project 11510 Class) Russian Radioactive Waste Tanker were built to receive, transport, and store liquid and solid radioactive waste. The ships are equipped with a special filter to reduce the radioactive content of liquid waste. They were formerly used to dump radioactive waste at sea. Each ship has a storage capacity of 800 m³ of liquid radioactive waste. The liquid is filtered through a special filtering installation onboard the vessel. The design criteria are to reduce the radioactive content by a factor of one thousand. The filter can process 120 tons of liquid waste per day; however, the filter plant has never satisfied the design criteria with regard to the reduction of radioactive content. The maximum permissible activity is set at 370 MBq/l-370 kBq/l (10-2-10-5 Ci/l). Each vessel also has two holds for the storage of solid radioactive waste. One hold has a capacity of 600 tons of waste loaded in containers; while the other can accommodate 400 tons. The waste may be of varying activity and physical dimensions.

Naval & Littoral Specifications
Crew 86
Beam 17.30 m
Draft 6.22 m
Variants

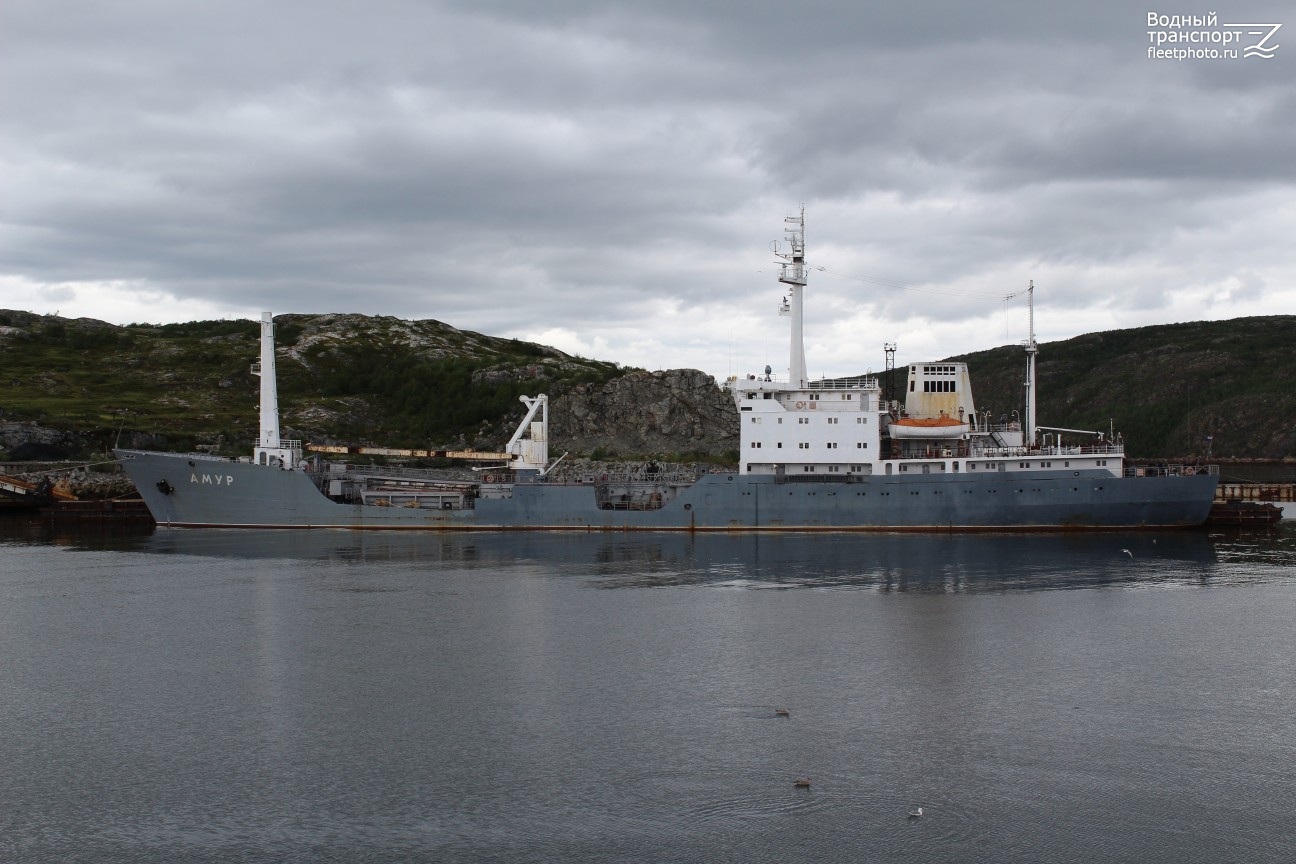

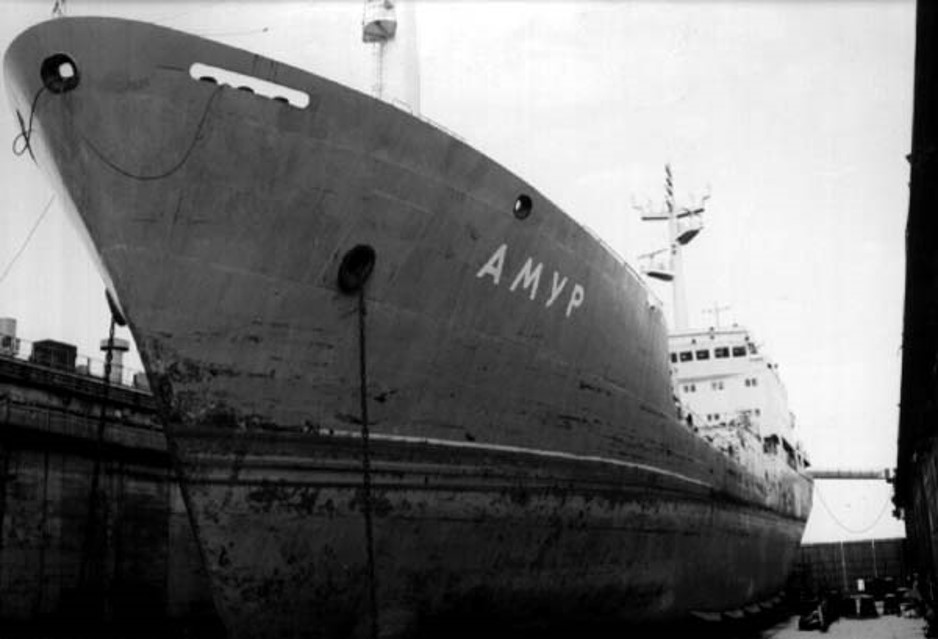

Amur Commissioned: 1986 Status: Active Fleet: Northern Fleet

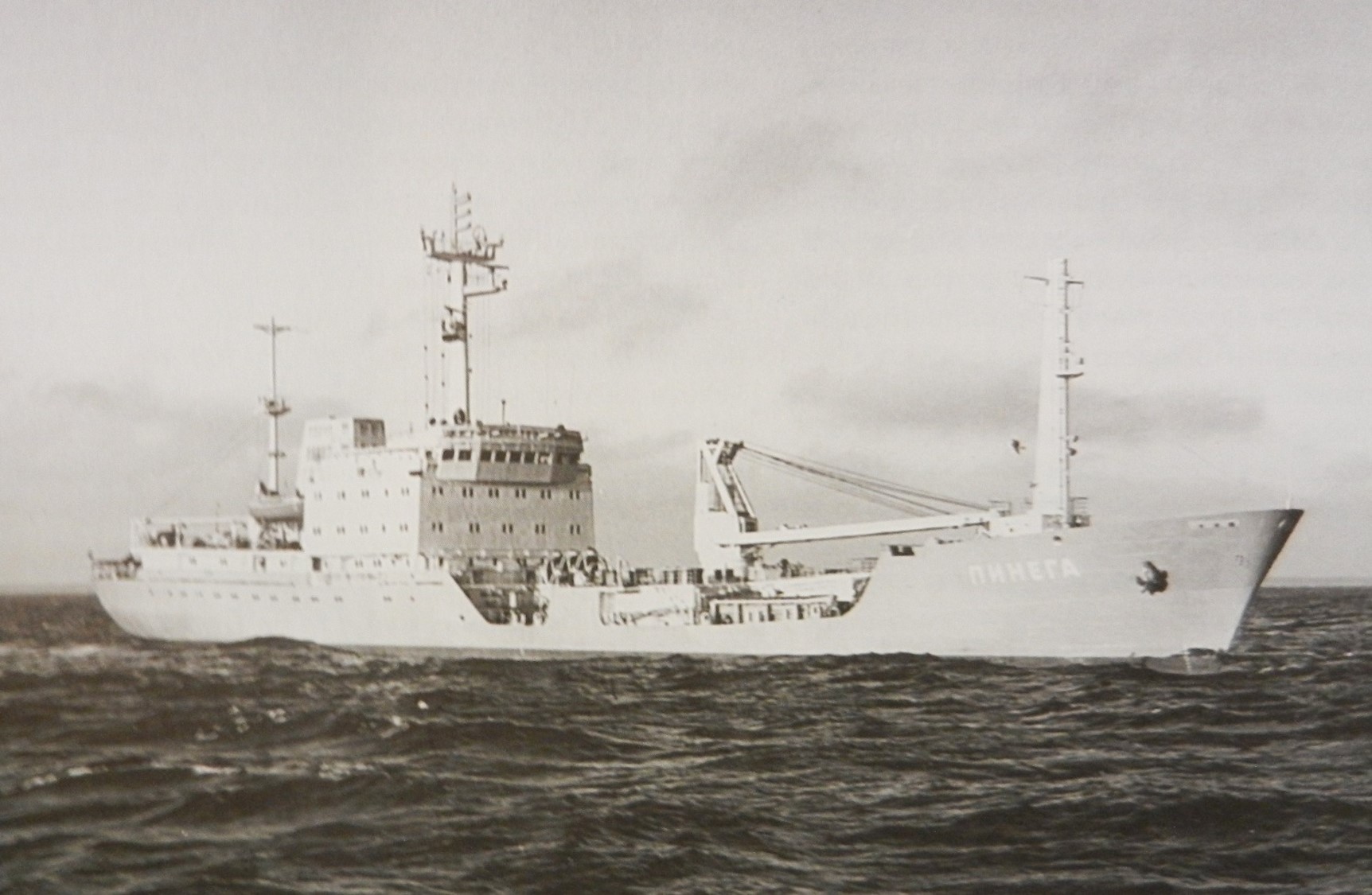

Pinega Commissioned: 1988 Status: Active Fleet: Pacific Fleet
System
Alternative Designation Belyanka-Class; Project 11510 Class
Type Radioactive Waste Tanker
Builder Karemaki Zavod, Vyborg, Finland
Crew 86 ea
Radioactive Liquid Filtration System The liquid is filtered through a special filtering installation onboard the vessel. The design criteria are to reduce the radioactive content by a factor of one thousand. The filter can process 120 tons of liquid waste per day; however, the filter plant has never satisfied the design criteria with regard to the reduction of radioactive content. The maximum permissible activity is set at 370 MBq/l-370 kBq/l (10-2-10-5 Ci/l).
Storage Capacity Each ship has a storage capacity of 800 m³ of liquid radioactive waste.
Storage Compartments
Compartment #1 Storage tank for liquid waste
Compartment #2 Purification Tank for liquid radioactive waste
Compartment #3 Primary Holding Tank for solid radioactive waste (Capacity: 600 tons)
Compartment #4 Auxiliary Holding Tank for solid radioactive waste (Capacity: 400 tons)
Note Each vessel has 2 x holding tanks for the storage of solid radioactive waste. One holding tank has a capacity of 600 tons of waste loaded in containers; while the other can accommodate 400 tons. The waste may be of varying activity and physical dimensions.
Dimensions
Length 123.80 m
Beam 17.30 m
Draft 6.22 m
Displacement, Standard 6,680 tons
Displacement, Full Load 8,250 tons
Propulsion System
Engine Name 2 x Type 58D-4R
Engine Type Diesel
Engine Power 9,000 total bhp
Generators INA
Range 4,000 nmi at 14 knots
Maximum Speed 16 knots
Endurance 25 days
Gun Weapon Systems
Note There are no weapons mounted onboard the Belyanka-Class (Project 11510 Class) Russian Radioactive Waste Tankers.
Radar Systems
Navigation Radar 2 x (Name: INA) Navigation Radars
Protection
Hull INA
Countermeasures No
NBC Water Washdown System Yes
Details
Country of Origin Russia
Category Special Purpose Ships
Naval > Special Purpose Ships
Filter Label
B
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
123.8 m
Width
17.3 m
Height
Weight
8250000 kg
Operators (1)
Russia
