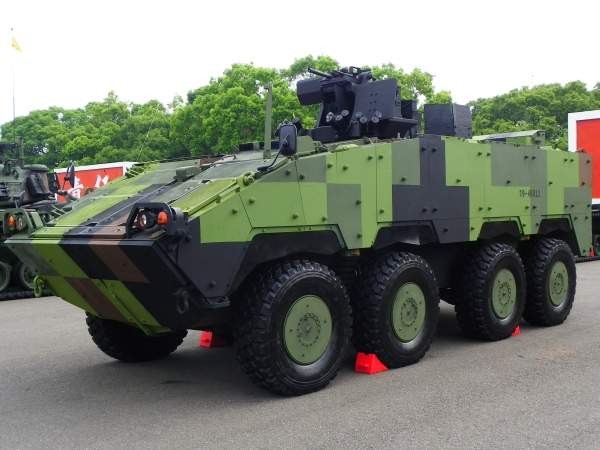

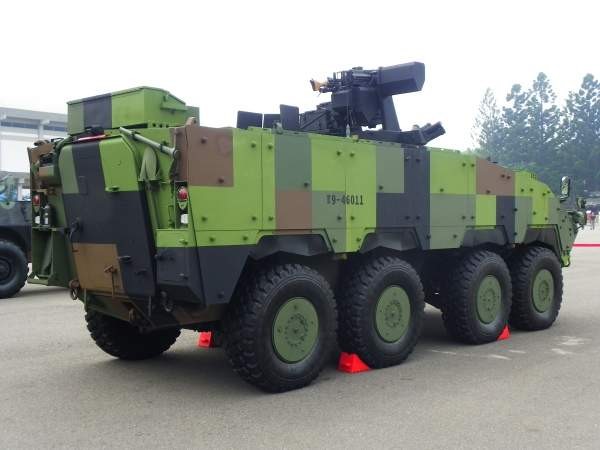

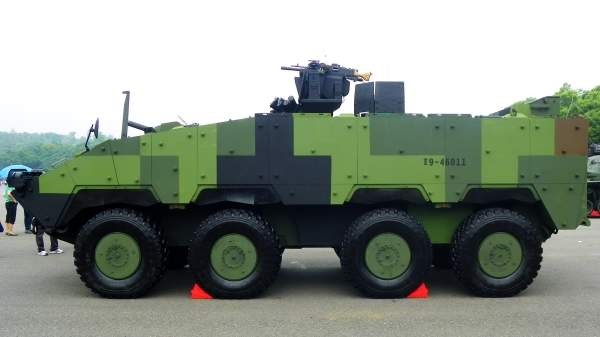

CM-32 Yunpao (Cloud Leopard) Taiwanese 8x8 Amphibious Armored Personnel Carrier (APC)

CM-32 Yunpao (Cloud Leopard)

Amphibious Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
CM-32 Yunpao (Cloud Leopard) Taiwanese 8x8 Amphibious Armored Personnel Carrier (APC)
Designation
CM-32 Yunpao (Cloud Leopard)
Alternate Designation
CM-32 Yunpao (Cloud Leopard)
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Ordnance Readiness Development Center
Date of Introduction
2007
Description

The CM-32 Yunpao (Cloud Leopard) Taiwanese 8x8 Amphibious Armored Personnel Carrier (APC) is manufactured by the Ordnance Readiness Development Centre in Nantou for the Republic of China (Taiwan) Army. Originally designed by Timoney Technology of Ireland, the CM-32 Yunpao will replace ageing M113s and V-150 armored vehicles of the Taiwan Army. "The CM-32 APC base version is armed with a 12.7mm machine gun and a 40mm automatic grenade launcher." The development of the CM-32 began in 2002 and three prototypes were rolled out in January 2005. Serial production commenced in 2007, with an initial order for 600 vehicles. The Taiwan Army plans to induct up to 1,400 CM-32 vehicles with 368 vehicles entering service by 2017-2018. CM3-2 Yunpao is also called the Taiwan infantry fighting vehicle (TIFV). The CM-32 is a modular vehicle platform capable of accepting various armament configurations for specific combat requirements. Major configurations include APC with a 12.7mm machine gun and 40mm automatic grenade launcher turret, mortar carrier with a 120mm mortar and fire support vehicle with 105mm low-recoil turret gun / 120mm gun. The CM-32 Yunpao can be used as an armored personnel carrier, infantry fighting vehicle, fire support vehicle, command and control vehicle and ambulance.

Ground Specifications
Crew 2
Engine Diesel (410 hp)
NBC Protection Yes
Amphibious Yes
Max Speed 120.0 km/h
Range 800.0 km
System
Alternative Designation CM-32 Yunpao (Cloud Leopard)
Type Amphibious Armored Personnel Carrier (APC)
Manufacturer Ordnance Readiness Development Center
Configuration 8x8
Crew 2 ea
Passengers 8 ea
Design The CM-32 Yunpao is based on the CM-31 6×6 armoured vehicle developed by Timoney Technology. The design incorporates an all-welded steel armoured hull based on the 8×8 chassis. The layout houses the driver at forward left and the power pack to his right. The two-person power-operated turret accommodates a commander and a gunner, while the troop section provides seating for six infantrymen. The entry and exit for the troops are provided through the rear ramp or roof hatches. The forward observation for the driver is provided by a single-piece hatch cover and day periscopes. The day periscope in the center can be replaced with a passive periscope for night driving. The commander and gunner have a day / night sighting system.
Dimensions
Length 6.35 m
Width 2.7 m
Height 2.3 m
Weight 22 tons
Automotive
Engine Name 1 x Caterpillar C12
Engine Type Diesel
Engine Power 410 hp
Maximum Range 800 km
Maximum Speed 120 km/h
Amphibious Yes
Amphibious Speed The fully amphibious CM-32 is driven in water by two water jets mounted either side under the hull at the rear. The vehicle has a maximum amphibious speed of 8km/h.
Gradient 60%
Side Slope 30%
Vertical Step 1.0 m
Trench 2.0 m
Fording Amphibious
Main Weapon System
Note The CM-32 APC base version is armed with a 12.7mm machine gun and a 40mm automatic grenade launcher. The IFV is fitted with a power-operated turret mounting a 20mm cannon and 12.7mm heavy machine gun. The vehicle can also be mounted with up to 120mm gun systems or 120mm mortar system. The armament configuration varies based on the mission variant.
Auxiliary Weapon System
Note The secondary armament is a roof-mounted 7.62mm machine gun for local and air-defense purposes.
Protection
Armor The basic armor of the CM-32 Yunpao provides all-round protection against 7.62 mm armor-piercing rounds. The frontal arc withstands 12.7 mm armor-piercing rounds. This APC has a V-shaped hull and is well-protected against landmines. The vehicle can withstand 12 kg TNT explosion under any wheel.
Applique Armor Add-on modular armor can be fitted for a higher level of protection.
NBC Protection Yes
Smoke Equipment The electrically operated smoke grenade launchers mounted at turret front create a wide smoke screen to conceal the vehicle from threats.
Details
Country of Origin Taiwan
Category Land
Land
Filter Label
C
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.35 m
Width
2.7 m
Height
2.3 m
Weight
22000 kg
Operators (1)
Taiwan
