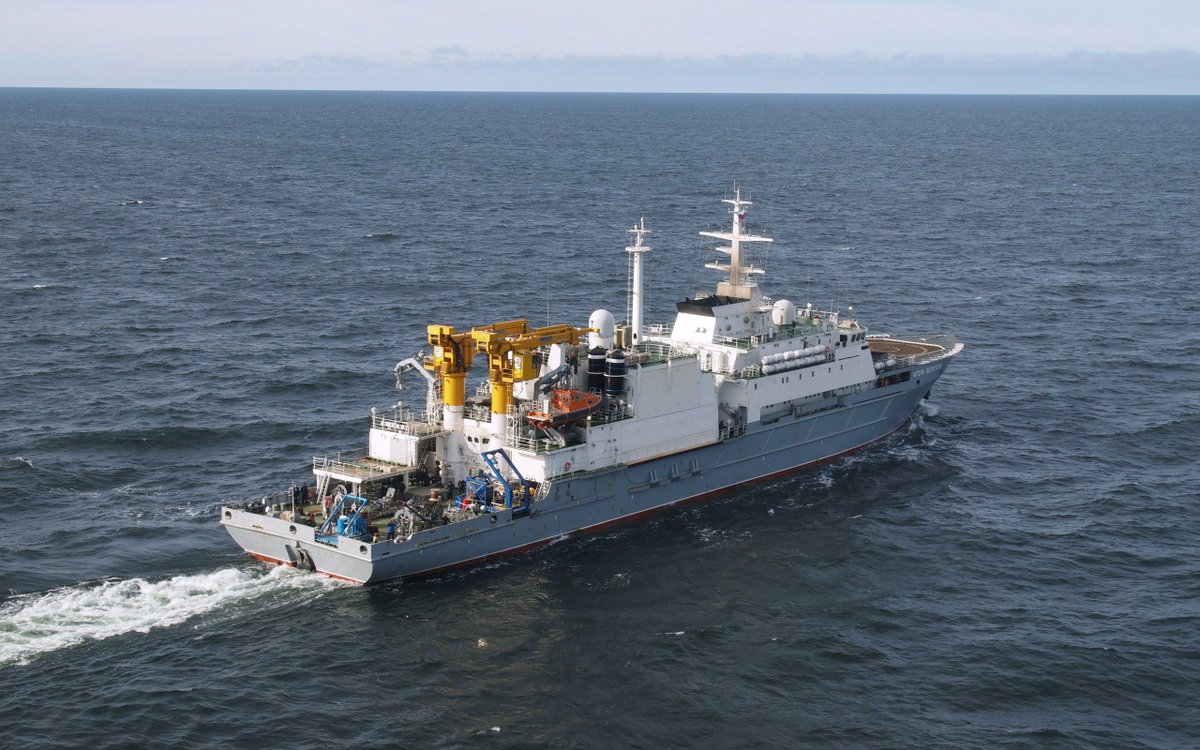

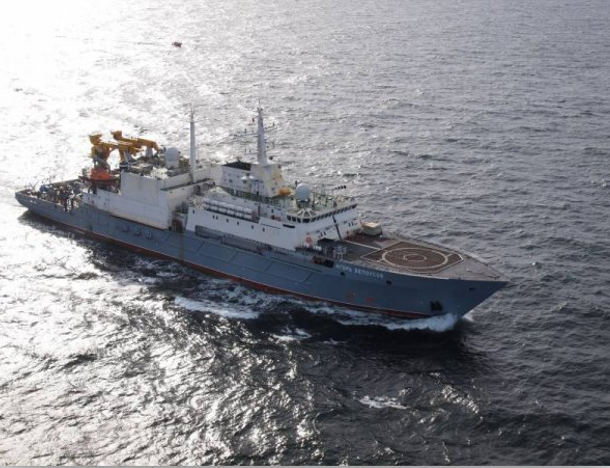

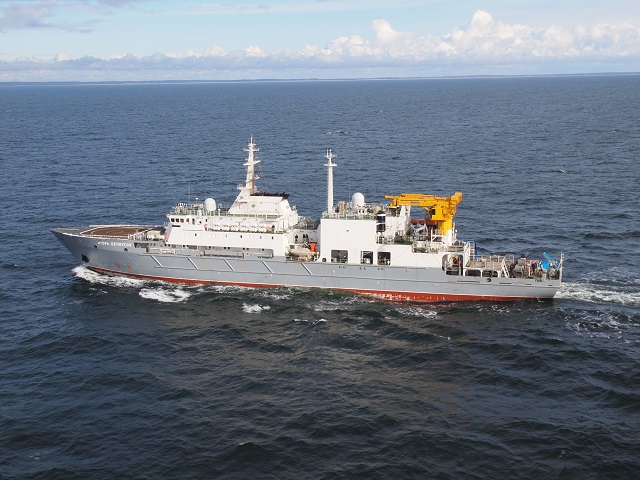

Igor Belousov-Class (Project 21300 Class) Russian Rescue Ship
Igor Belousov-Class
Repair Ship
Other
Basic Information
Name
Igor Belousov-Class (Project 21300 Class) Russian Rescue Ship
Designation
Igor Belousov-Class
Alternate Designation
Igor Belousov-Class; Project 21300 Class
Equipment Type
Repair Ship
Manufacturer
Almaz Central Naval Design Bureau
Date of Introduction
2015
Description
Igor Belousov-Class (Project 21300 Class) Russian Rescue Ship was developed by the Almaz Central Naval Design Bureau. Initially, plans call for two ships -- one for the Northern and one for the Pacific Fleet. Two more may be built, which would equip all four fleets with a unit. The ships may have secondary roles as research ships.
Naval & Littoral Specifications
Crew
96
Beam
17.20 m
Draft
8.10 m
Variants
Igor Belousov
Commissioned: 2015
Status: Active
Fleet: Northern Fleet
System
Alternative Designation
Igor Belousov-Class; Project 21300 Class
Type
Russian Rescue Ship
Builder
Admiralty Shipyard, St. Petersburg, Russia (construction);
Almaz Central Naval Design Bureau, St. Petersburg, Russia (design).
Crew
96 ea
Passengers
120 ea
Underwater Vehicles
1 x Project 18271 deep-diving autonomous underwater vehicle and 2 x ARS-600 deep-diving autonomous underwater vehicles.
Rescue Complex
1 x "Panther Plus" underwater rescue complex
Dive Complex
1 GVK-450 dive complex (450 meters).
Decompression Chamber
5 x Decompression Chambers
Dimensions
Length
105.10 m
Beam
17.20 m
Draft
8.10 m
Displacement, Standard
INA
Displacement, Full Load
5,310 tons
Propulsion System
Engine Name
2 x KL6538В-AS06 Electric Motors
Engine Type
Electric Motor
Engine Power
2 x 3,265
Bow Thrusters
2 x Bow Thrusters
Generators
4x1680 кkW VA-1680 diesel generators and 2x1080 kW VA-1080 diesel generators.
Maximum Range
3,000 nm at 12 knots
Maximum Speed
15 knots
Endurance
INA
Communications
Communication Complex
1 x R-779-16 Ruberoid communication complex.
Underwater Communication System
1 x Struktura-SVN underwater communication system.
Main Weapon System
System
Name
12 x 9K38 Igla (SA-18 Grouse) Man-Portable Surface-to-Air Missile System
Type
Man-Portable Surface-to-Air Missile System
Length
1.574 m
Diameter
72 mm
Weight
Missile weight: 10.8 kg;
Full system: 17.9 kg.
Warhead
1.17 kg
Detonation Mechanism
Contact and grazing fuze
Engine
Solid fuel rocket motor
Guidance System
Dual waveband infra-red
Operational Range
5.2 km
Flight Ceiling
3.5 km
Maximum Speed
570m/s
Basic Load
12 x 9K38 Igla (SA-18 Grouse) Man-Portable Surface-to-Air Missile System
Auxiliary Weapon Systems
System
Name
2 x DP-65, 55mm Small-Size Remotely Controlled Anti-Saboteur System
Type
Small-Size Remotely Controlled Anti-Saboteur System
Caliber
55 mm
Composition
The grenade launcher system comprises the launcher, remote control, power unit, and RG-55 grenades. The DP-65 is made of aluminium alloys. The system incorporates two packs of five launch tubes, while the launcher is fitted with electric drives of the elevating and the traversing gear, allowing the DP-65 to be controlled either remotely (at a range of up to 100 m) with the help of the remote control or manually.
Features
The control panel allows the operator to operate up to four DP-65 grenade launchers in turn. When combined with the Anapa-ME underwater anti-saboteur detection sonar, the grenade launcher can automatically detect, acquire, track, and kill the target. Based on sonar data, the launcher fires a salvo, or each launch tube independently. In the manual control mode, grenades are launched with the help of the autonomous power unit.
The grenade launcher is equipped with locking devices, ensuring loading and unloading safety and blocking fire circuits in fire-free areas. The launcher is loaded manually.
The DP-65 grenade launcher is mounted on large-displacement surface ships and vessels, as well as various coastal facilities. It can efficiently engage all types of contemporary frogman hardware.
The DP-65 ammunition allowance includes the GRS-55 signal flare, and the RG-55M high-explosive grenade. The GRS-55 is designed to indicate the location of combat divers detected. It has the same weight, dimensions, and range of fire as the RG-55M. When hitting the water surface, the flare, pushed out of the body by a spring arrangement, surfaces and blazes for at least 50 seconds. RG-55M grenades are then launched at frogmen spotted, using the blazing flare as a reference point.
Length
INA
Weight, Grenade Launcher Mount
77 kg
Weight, launch Tubes
55 kg
Weight, Control Panel
30 kg
Weight, Power Unit
46 kg
Number of Launch Tubes
10 ea
Range of Fire
500 m
Ammunition
Name
RG-55M
Type
Grenade
Caliber
55 mm
Cartridge
INA
Basic Load
560 x RG-55M Grenades
Radar Systems
Navigation Radar
1 x MR-231 navigation radar and 1 x PAL-N3 navigation radar.
Sonar Systems
Mine Detection Sonar
1 x Livadiya sonar.
Search Sonar
1 x Folklor sonar.
Anti-Saboteur Sonar
1 x MG-757 Anapa-M anti-saboteur sonar.
Aviation
Aviation Facility
1 x Helipad.
Protection
Hull
INA
Countermeasures
No
NBC Water Washdown System
Yes
Details
Country of Origin
Russia
Category
Special Purpose Ships
Naval > Special Purpose Ships
Filter Label
I
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
105.1 m
Width
17.2 m
Height
—
Weight
5310000 kg
Operators (1)
Russia
