Kaliningradneft-Class (Project REF-675 Class) Russian Medium Seagoing Tanker
Kaliningradneft-Class
Oil Tanker
Other
Basic Information
Name
Kaliningradneft-Class (Project REF-675 Class) Russian Medium Seagoing Tanker
Designation
Kaliningradneft-Class
Alternate Designation
Kaliningradneft-Class; Project REF-675 Class
Equipment Type
Oil Tanker
Manufacturer
—
Date of Introduction
1982
Description
The Kaliningradneft-Class (Project REF-675 Class) Russian Medium Seagoing Tankers were originally built for the Ministry of Fisheries. They were originally intended for support of the Soviet fishing fleet but were taken over by the navy shortly after completion. The ship is not capable of alongside refueling or solid stores underway replenishment. She has 10 tanks that can hold 5,263 tons of liquid cargo.
Naval & Littoral Specifications
Crew
40
Beam
17.00 m
Draft
7.00 m
Variants
Vyazma
Commissioned: 1982
Status: Active
Fleet: Northern Fleet

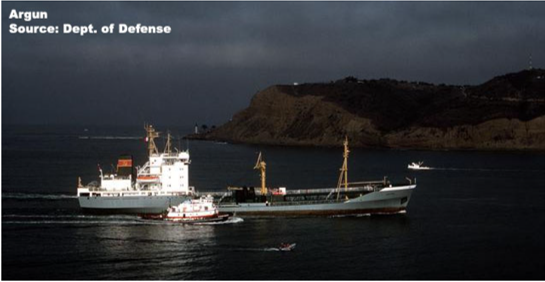

Argun
Commissioned: 1982
Status: Decommissioned in 2003
Fleet: Pacific Fleet
System
Alternative Designation
Kaliningradneft-Class; Project REF-675 Class
Type
Medium Seagoing Tanker
Builder
Rauma-Repola, Repola, Finland
Crew
40 total (12 off, + 28 crew) (all civilians)
Cargo Capacity
The Vessel has 10 tanks that can hold 5,263 tons of liquid cargo.
Note
The ship is not capable of alongside refueling or solid stores underway replenishment.
Dimensions
Length
115.5 m
Beam
17.0 m
Draft
7.0 m
Displacement, Standard
3,150 tons
Displacement, Full Load
4,820 tons
Propulsion System
Engine Name
1 x Russkiy-Burmeister & Wain type 5 DKRP 50/110-2
Engine Type
Diesel
Engine Power
3,850 total bhp
Maximum Range
5,000 nm at 14 knots
Maximum Speed
14 knots
Communications
VHF Radio
2 x VHF Radios
Radio Direction Finder
1 x SEP705LN6 Radio Direction Finder
Gun Weapon Systems
Note
The Kaliningradneft-Class (Project REF-675 Class) Russian Medium Seagoing Tankers are crewed 100% by civilians. There are no weapon systems mounted on board these vessels.
Radar Systems
Navigation Radar
1 x Okean-A navigation radar and 1 x Okean-B navigation radar
Protection
Hull
INA
Countermeasures
No
NBC Water Washdown System
Yes
Image Sources
Notes
https://nara.getarchive.net/media/a-commercial-harbor-tug-escorts-the-soviet-kaliningradneft-class-support-tanker-e47e7d; https://nara.getarchive.net/media/starboard-side-view-of-the-russian-kaliningradneft-class-merchant-tanker-minusinsk-b25899; https://www.micoope.com.gt/?o=lefkas-imo-6509149-ship-photos-information-videos-and-ship-nn-Bla7p2cr;
Details
Country of Origin
Russia
Category
Support Ships
Naval > Support Ships
Filter Label
K
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
115.5 m
Width
—
Height
—
Weight
—
Operators (1)
Russia
