KDU-1 Polyus Russian Man-Portable Rangefinder/Goniometer
KDU-1 Polyus
Man-Portable Laser Rangefinder
Other
Basic Information
Name
KDU-1 Polyus Russian Man-Portable Rangefinder/Goniometer
Designation
KDU-1 Polyus
Alternate Designation
KDU-1 Polyus
Equipment Type
Man-Portable Laser Rangefinder
Manufacturer
—
Date of Introduction
2000
Description

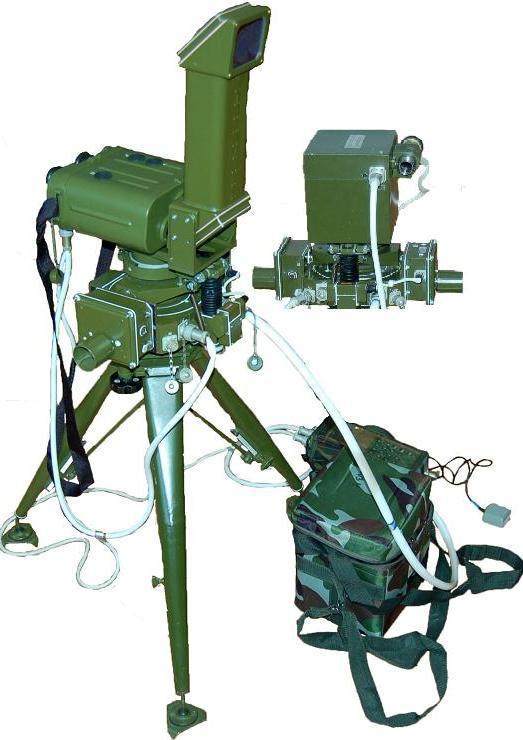

The KDU-1 rangefinder/goniometer is designed for ground target reconnaissance, correction of artillery and air firing from ground, air, ship control centers as well as for use in automated fire control systems. SYSTEM COMPOSITION *LDM-2 (1D39) laser rangefinder module *SN-3 aiming system *1D26 TR tripod *Periscope *LGK-4M laser gyrocompass *1E77 synchronization unit (2 pcs.) *1E67M accumulator battery (2 pcs.) *Accessory set *Transport case including two flexible packs for carrying *Operation manual
Ground Specifications
Crew
1
System
Alternative Designation
KDU-1 Polyus
Type
Man-Portable Rangefinder/Goniometer
Crew
1 ea
Measurement Range at ±10 m Accuracy,
50...9,000 m
Recognition Range of “Tank-Sized” (frontal area) Target
4,500 m
Burst Ranging
4,000 m
Magnification
x7
Field of View
6°
Dioptric Adjustment
±4 Diopters
Azimuth Range
from +30-00 to –30-00 deg
Elevation Range
from +3-00 to – 3-00 deg
Angular Accuracy
0-04 deg
Angular Accuracy
0-12 deg
Dimensions
Length
INA
Width
INA
Height
INA
Height of Periscope
250 mm
Weight, Combat
14 kg
Details
Country of Origin
Russia
Category
Land Based Sensors
Land > Land Based Sensors
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
14 kg
Operators (1)
Russia
