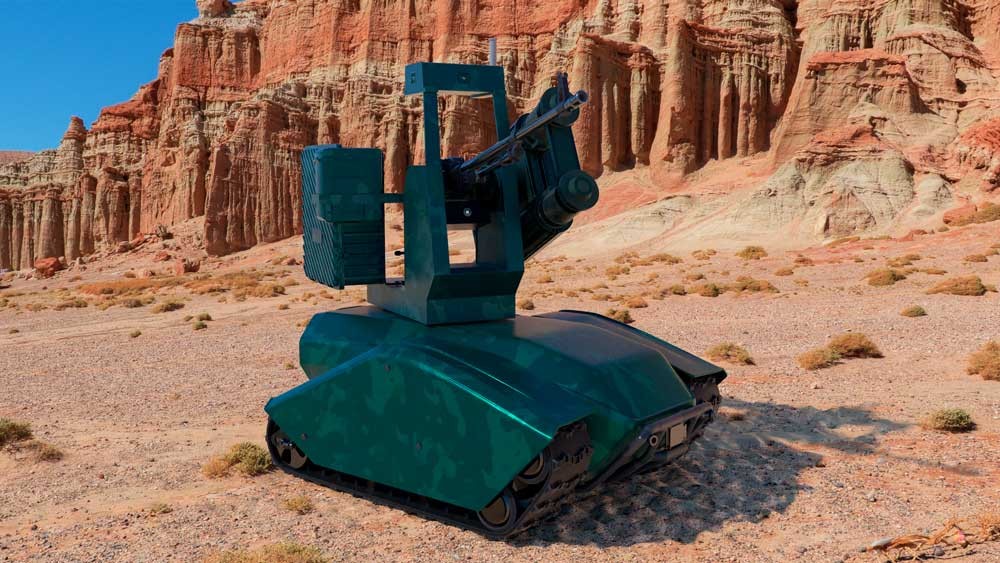

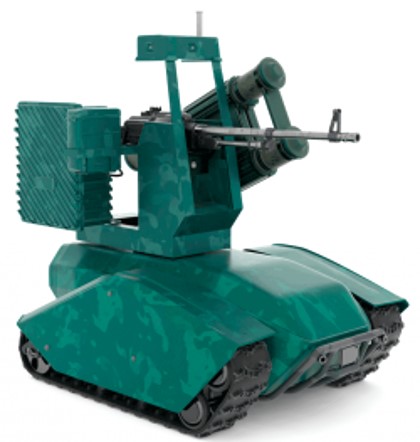

Scorpio Ukrainian Tracked Unmanned Ground Vehicle (UGV)
Scorpio
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Scorpio Ukrainian Tracked Unmanned Ground Vehicle (UGV)
Designation
Scorpio
Alternate Designation
Scorpio
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Timberland Military Solutions
Date of Introduction
2020
Description
The Scorpio Ukrainian Tracked Unmanned Ground Vehicle (UGV) is mobile multifunctional fire support and reconnaissance asset of troop squadron level for guarding the perimeter and borders. Capabilities include: providing maneuver with fire; used strengthening the platoon (squad) with a machine gun / grenade launcher on a mobile platform; builds a more effective line of fire with active company defense in the presence of three or more units of this equipment.
Ground Specifications
Engine
Electric (20 hp)
System
Alternative Designation
Scorpio
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Timberland Military Solutions
Configuration
Tracked
Crew
Unmanned
Platform Management System
2 NVIDIA Jetson on-board computers for: road tracking; processing objects and obstacles by the neural network from all sides.
2 programmable PLC controllers for control: movement of the robotic platform; turret management.
Autonomous Control
SMART TRACK
– movement behind the driving car / object
by GPS
– perimeter patrol
– movement from point to point
– return “home” when the control channel disappears
without GPS
– movement during electronic warfare
Remote Control
Locally (line of sight): gestures, voice, leash remotely: from an operator station, from a tablet, from a Quadro copter.
Communication Channel
WiFi 5 GHz
Operating Temperature
– 25 ° to + 60 ° C
Dimensions
Length
1,320 mm
Width
860 mm
Height
1,900 mm
Weight (without Weapons and Ammunition)
370 kg
Clearance
140 mm
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
20 hp hp
Control Range
2 km
Maximum Speed
INA
Protection
Armor
IP65; 2 mm steel
Details
Country of Origin
Ukraine
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.32 m
Width
0.86 m
Height
1.9 m
Weight
370 kg
Operators (1)
Ukraine
