Type 653 Chinese Armored Recovery Vehicle
Type 653
Armored Recovery Vehicle
Other
Basic Information
Name
Type 653 Chinese Armored Recovery Vehicle
Designation
Type 653
Alternate Designation
Type 653
Equipment Type
Armored Recovery Vehicle
Manufacturer
China North Industries Corp. (NORINCO), Beijing, China Heavy Defense Industries (HDI), Taxila, Pakistan
Date of Introduction
1982
Description
The Type 653 Chinese Armored Recovery Vehicle is based on the chassis of the Type 69 MBT and is designed not only to recover this and other vehicles on the battlefield but also to undertake major repairs such as changing complete power packs, clearing obstacles, and preparing fire positions. Standard equipment includes a front-mounted hydraulically operated dozer blade, a hydraulic crane on the right side of the hull, the main winch with a capacity of 70 tonnes, auxiliary winch, tools, towbars, and cables. In addition to being used by the Chinese Army, small quantities of these have been sold to Bangladesh, Iraq, Pakistan, and Thailand as part of the Type 69 MBT sale.
Ground Specifications
Crew
5
Engine
V-12 Diesel (580 hp)
NBC Protection
Yes
Variants

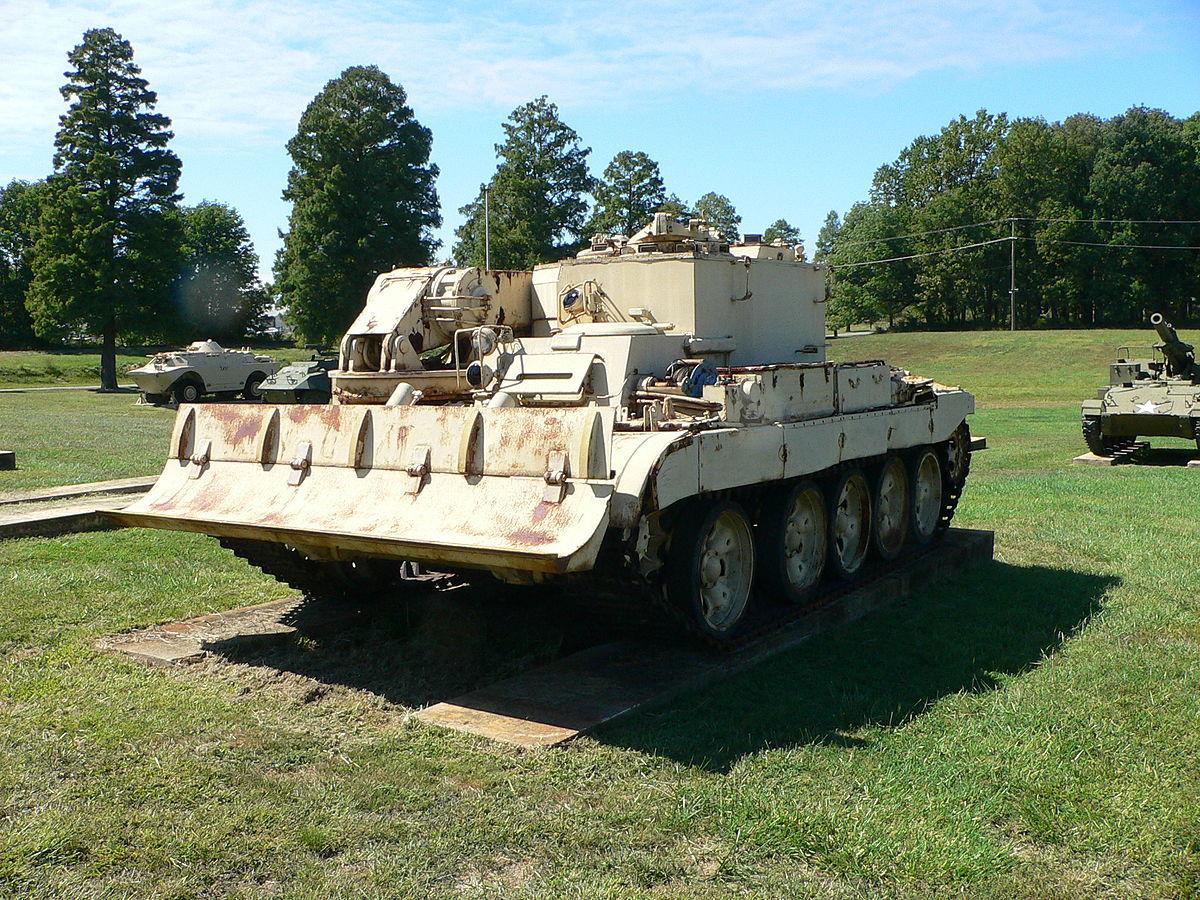

Type 84 Medium Armored Recovery Vehicle
the Type 84 ARV has a crew of five and a combat weight of 38.5 tonnes. The winch has a minimum capacity of 32 to 35 tonnes and is provided with 130 m of cable that has a diameter of 28.5 mm.
Type 653A ARV
The Type 653A ARV is being marketed as part of the NORINCO PLZ-45 155 mm/45-calibre self-propelled howitzer system. This model has the winch with a maximum capacity of 70 tonnes, crane with a lifting capacity of 20 tonnes, rigid towing equipment for a vehicle weighing 40 tonnes and a dual purpose blade for dozing and anchoring.
Type 653B ARV
This is the latest model of the Type 653 ARV to be marketed. The main difference is the replacement of the original 580 hp diesel with a 730 hp engine, which gives a higher speed of 55 km/h and greater mobility.
Type 654 ARRV
China North Industries Corporation (NORINCO) has completed development of a new Armoured Recovery and Repair Vehicle (ARRV) called the Type 654 and this is now being offered on the export market.
System
Alternative Designation
Type 653
Type
Armored Recovery Vehicle
Manufacturer
China North Industries Corp. (NORINCO), Beijing, China
Heavy Defense Industries (HDI), Taxila, Pakistan
Crew
5 ea
Passenger Capacity
NA
Chassis
Type 69 MBT
Dozer Blade
Mounted on the front of the hull and operated by two hydraulic cylinders, is the earthmoving dozer blade that can also act as an anchor for heavy winching operations. The full-width dozer blade has an earthmoving capacity of 100 m3/h on dry soil. The main winch access rollers are located between the twin hydraulic cylinders for the dozer blade and the blade has to be in the lower position for recovery.
Winch
The main winch is hydraulic, with a maximum pulling performance of up to 70,000 kg and the effective length of the cable is 130 m.
Hydraulic Crane
The hydraulic crane jib with its full 360° turntable is in line with the driver's position. The crane jib is telescopic and is normally stowed to the rear for traveling. It can be extended to a maximum lifting height of 6 m and has a rated lifting torque (static) of 392 to 686 kN.m. The maximum Lifting Capacity is 10 tones.
Dimensions
Length
7.18 m
Width
3.30 m
Height, Overall
3.0 m
Height, Hull
2.34 m
Weight
38,000 kg
Ground Clearance
0.425 m
Automotive
Engine Name
Model 12150L-7BW
Engine Type
Liquid-cooled, V12 diesel
Engine Power
580 hp at 2,000 rpm
Power-to-Weight Ratio
15.26hp/t
Suspension
torsion bar
Cruising Range
440 km
Speed, Maximum Road
50 km/h
Amphibious
No
Gradient
60 %
Side Slope
40 %
Vertical Step
0.8 m
Trench
2.7 m
Fording Depth
1.4 m
Main Weapon System
System
Name
1 x Type 54 12.7mm Heavy Machine Gun
Type
Heavy Machine Gun
Caliber
12.7 mm
Length
1.625 mm
Barrel Length
1.070 mm
Weight
34 kg
Action
Gas operated, open bolt
Rate of Fire
600 rpm
Muzzle Velocity
840 - 860 m/s
Feed System
Belt fed, 50 round belts
Sights
Iron sights, hooded post front and ladder sight rear;
Optional anti-aircraft spider web sight
Ammunition
Type
Rifle
Caliber
12.7 mm
Cartridge
12.7x108mm
Basic Load
INA
Protection
Hull Type
Steel
Armor, Hull Rear
46 mm
Armor, Hull Top
33 mm
Armor, Glacis
97 mm
Mine Clearing
Limited with blade
Self-Entrenching Blade
Yes
NBC Protection
Yes
Smoke Equipment
Yes, engine exhaust (Not on Thai version)
Details
Country of Origin
China
Category
Survivability
Land > Survivability
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.18 m
Width
3.3 m
Height
3 m
Weight
38000 kg
Operators (7)
China
Pakistan
Bangladesh
Iraq
Kuwait
Tanzania
Thailand
