BAS-200 Russian Unmanned Aerial Vehicle (UAV)
BAS-200
Tactical Unmanned Aerial Vehicle (UAV)
Other









Basic Information
Name
BAS-200 Russian Unmanned Aerial Vehicle (UAV)
Designation
BAS-200
Alternate Designation
BAS-200
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Russian Helicopters, a subsidiary of Rostec State Corporation
Date of Introduction
2022
Description

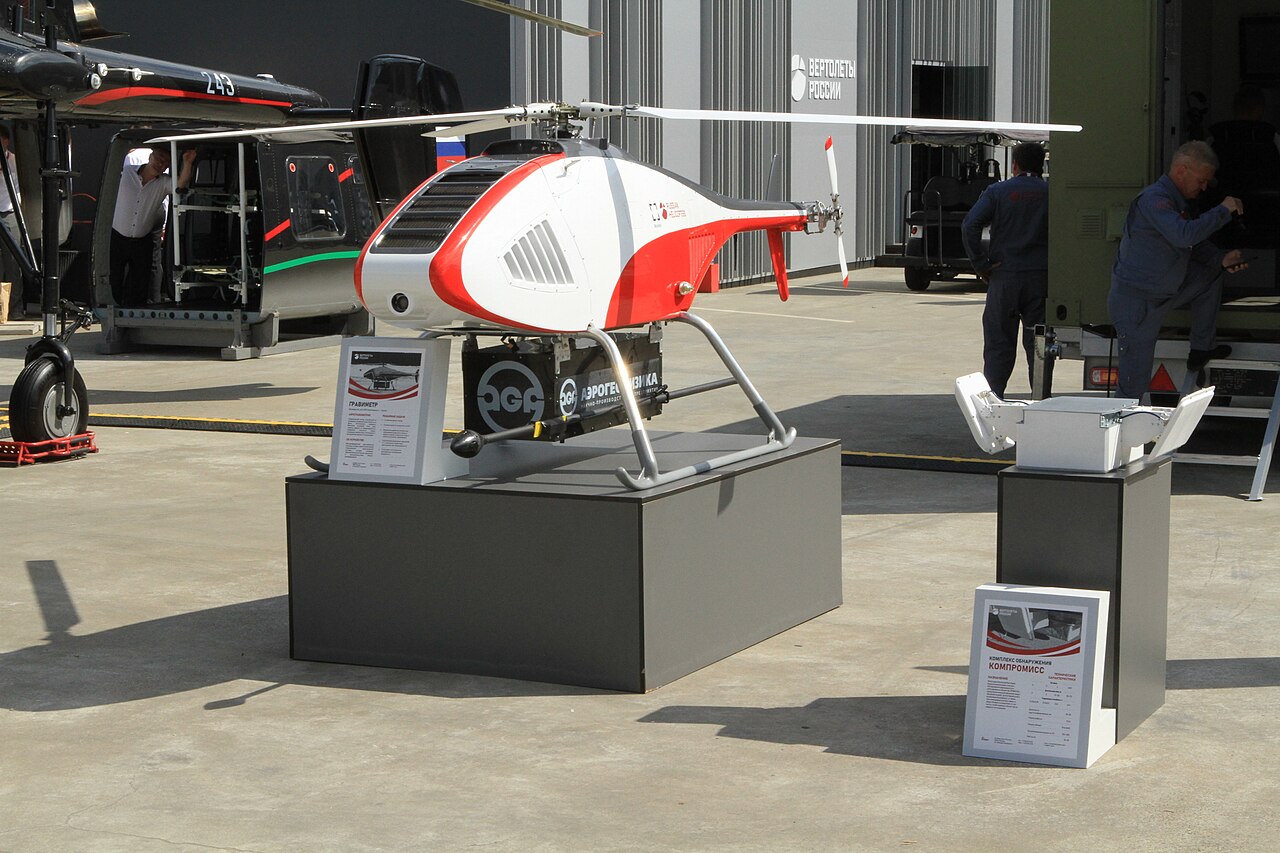

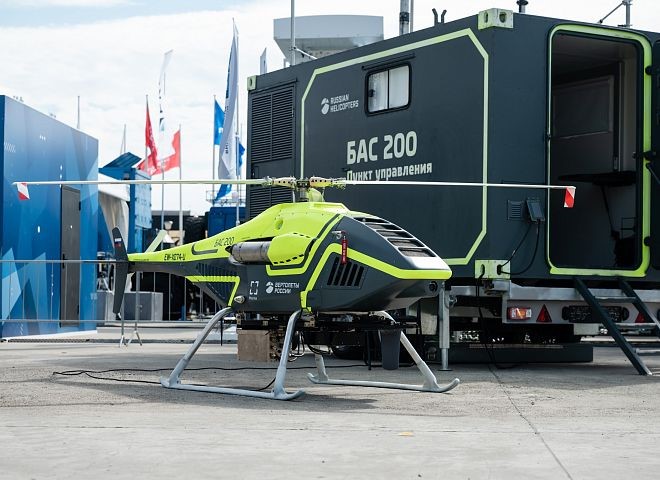

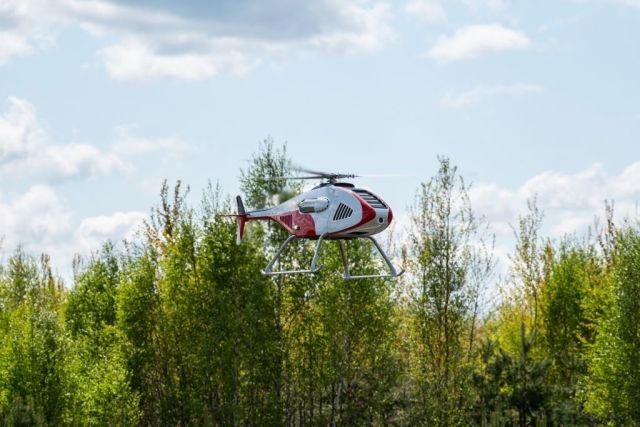

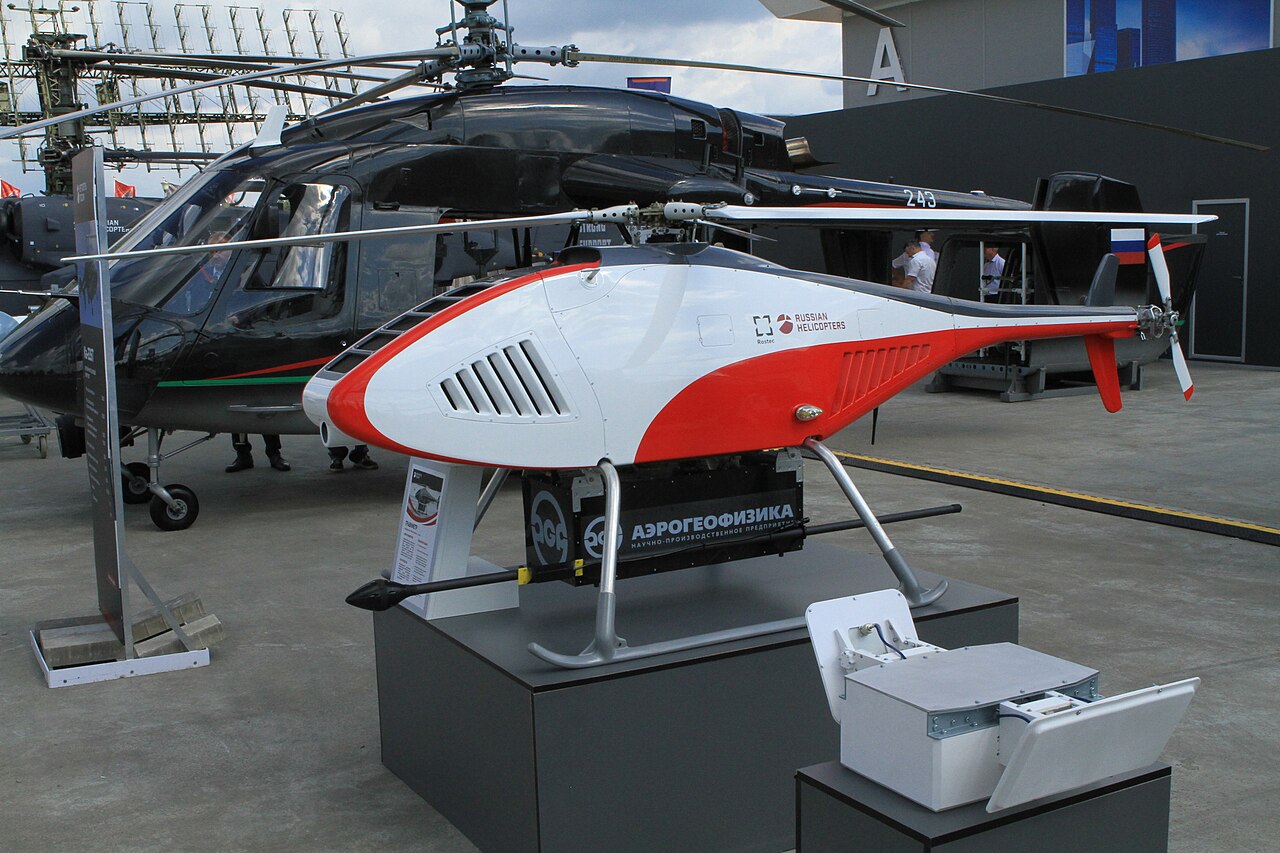

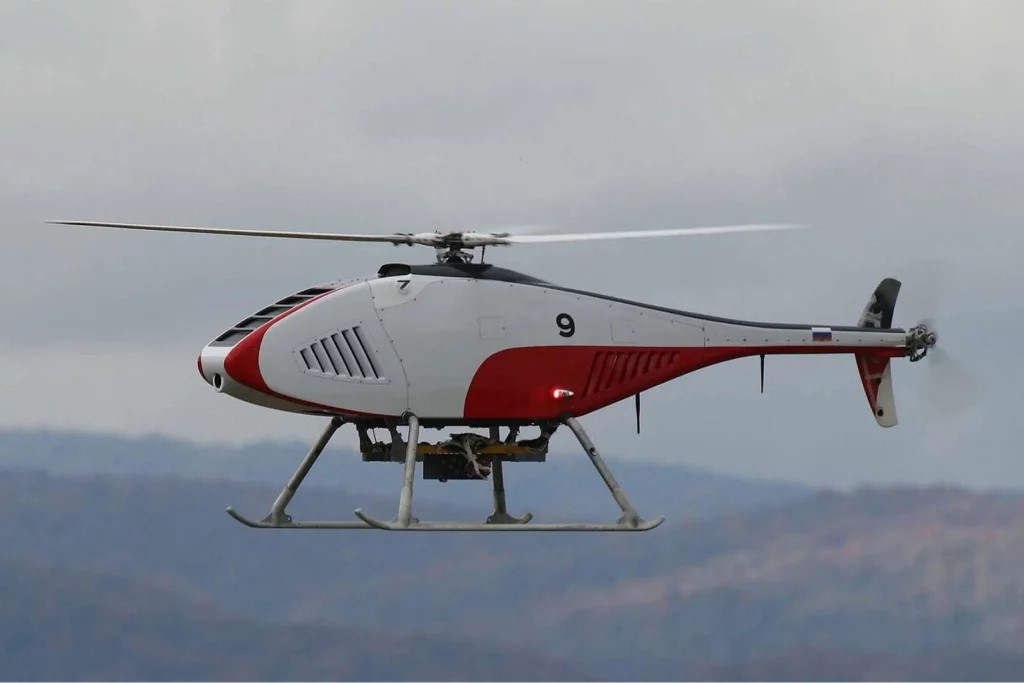

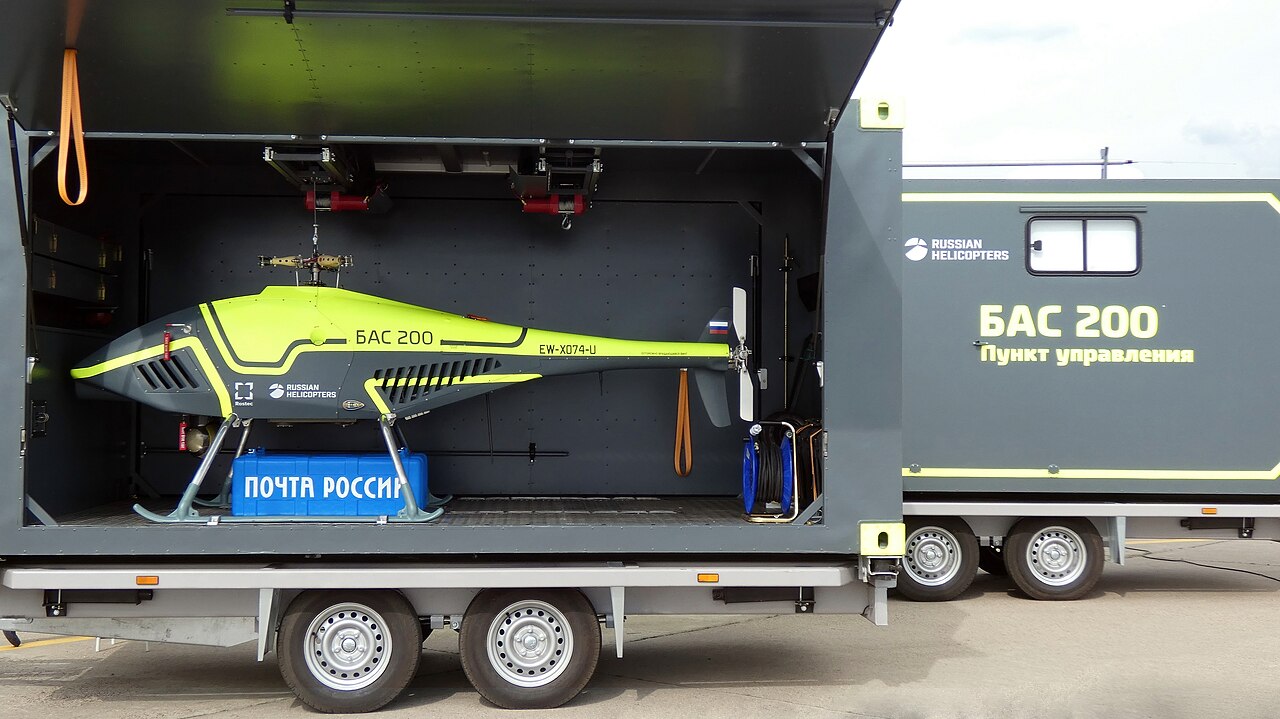

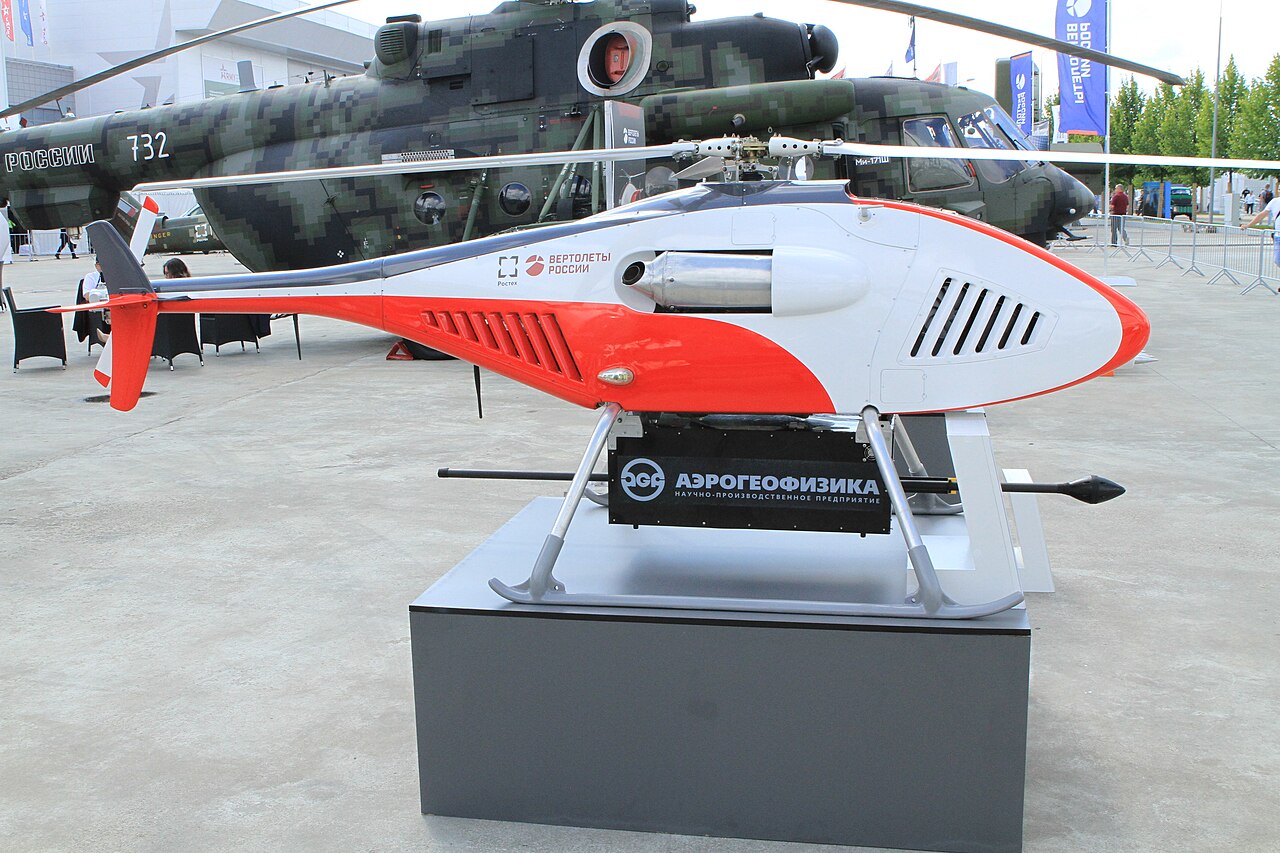

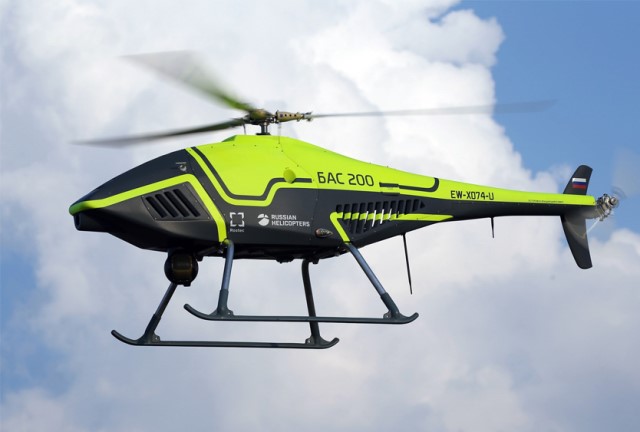

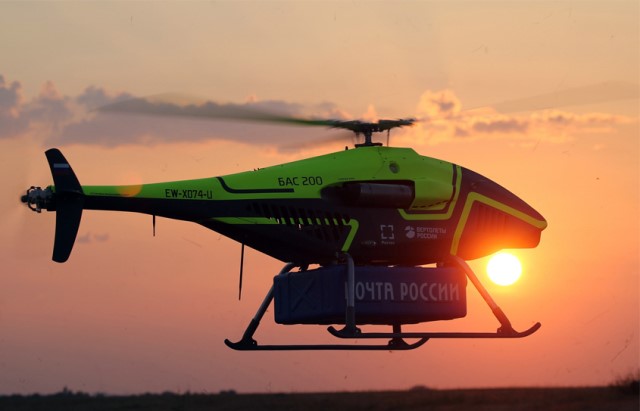

The BAS-200 Russian Unmanned Aerial Vehicle (UAV) possesses a conventional single-rotor configuration complemented by an antitorque propeller. This UAV is equipped with a rotary piston engine, enabling it to operate in automatic mode for up to four hours while supporting a payload capacity of 50 kilograms. The system is designed to conduct flight missions both during daylight and nighttime hours, utilizing both manual and automatic modes without requiring remote pilot intervention. Additionally, it accommodates a variety of payloads, thereby enabling the execution of a broad spectrum of operational missions.
Air & Air Defense Specifications
Engine
Rotary Engine (54 hp)
Max Speed
160.0 km/h
Range
100.0 km
Endurance
4.00 hrs
Service Ceiling
3500 m
Payload Capacity
50 kg
System
Alternate Designation
BAS-200
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Russian Helicopters, a subsidiary of Rostec State Corporation
Payload Capacity
50 kg
Dimensions
Length
3.9 m
Width
INA
Height
1.2 m
Maximum Takeoff Weight
200 kg
Automotive
Engine Name
INA
Engine Type
Rotary Piston Engine
Engine Power
54 hp
Fuel Capacity
57 liters
Maximum Speed
160 km/h
Maximum Range
100 km
Service Ceiling
3,500 m
Endurance
4 hours
Image Sources
Notes
https://rostec.ru/en/directions/aviation/products-projects/bas-200-unmanned-helicopter-system/; https://armyrecognition.com/news/navy-news/2024/russia-deploys-bas-200-drones-to-support-arctic-icebreaker-operations; https://www.defensemirror.com/news/34208/Russian_BAS_200_Drone_Tested_at_Maximum_Distance_from_Control_Center; https://vpk.name/en/606149_bas-200-unmanned-helicopter.html
Details
Country of Origin
Russia
Category
UAVs
Air > UAVs
Filter Label
B
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
3.9 m
Width
—
Height
1.2 m
Weight
200 kg
Operators (1)
Russia
