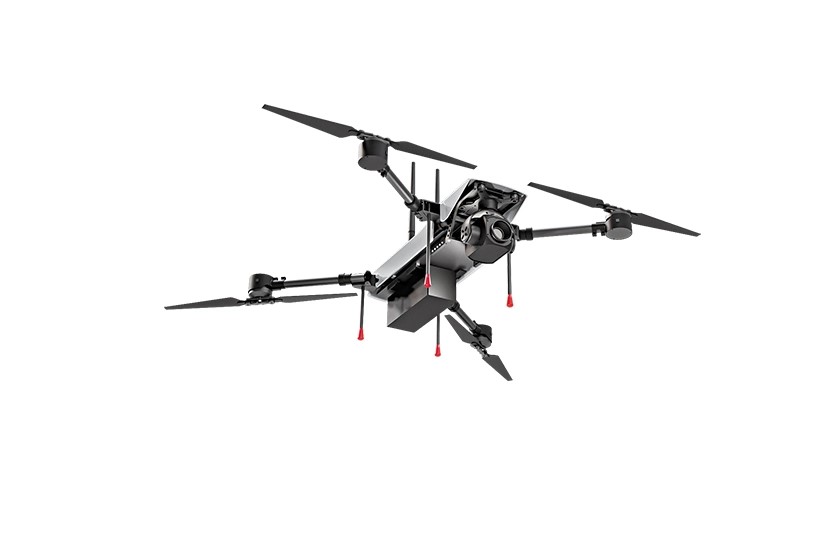

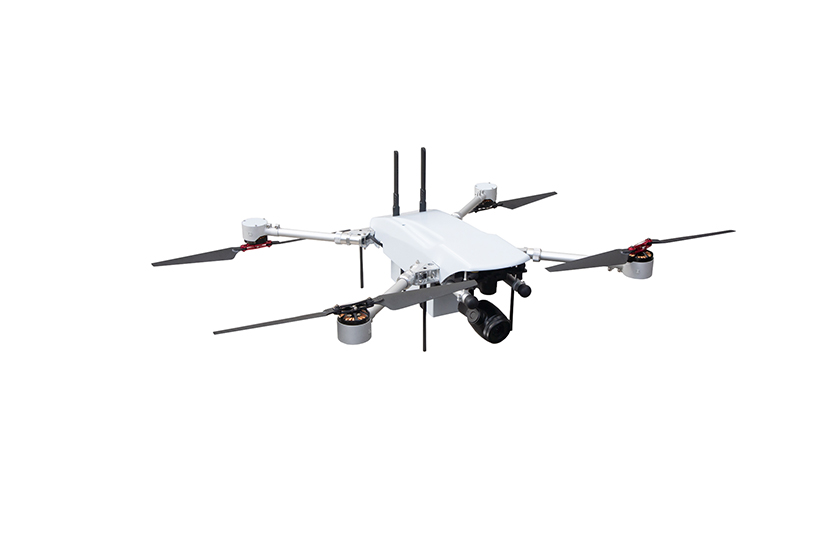

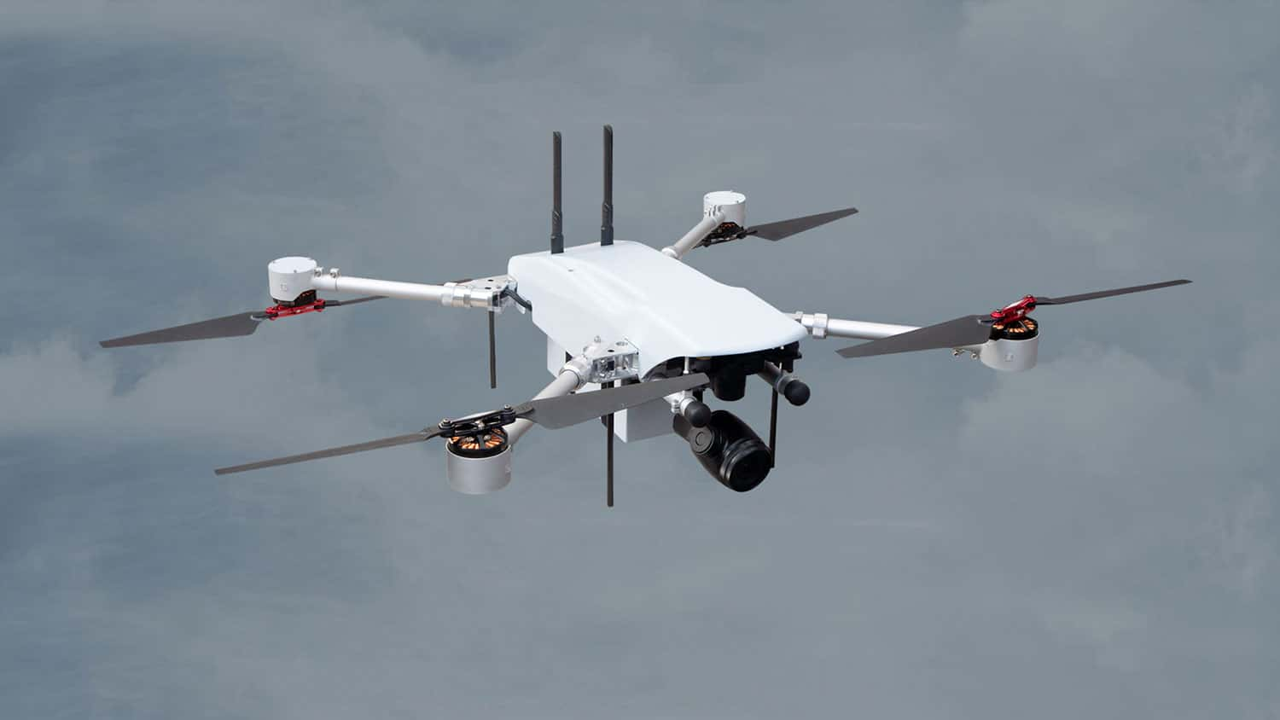

ZALA T-24 Russian Unmanned Aerial Vehicle (UAV)

ZALA T-24

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ZALA T-24 Russian Unmanned Aerial Vehicle (UAV)
Designation
ZALA T-24
Alternate Designation
ZALA T-24; formally designated ZALA 421-24
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Zala Aero Group
Date of Introduction
2019
Description

The new ZALA T-24 Unmanned Aerial Vehicle (UAV) is Russia's first purpose-built quadcopter UAV, representing a significant evolution in Russian tactical reconnaissance drone capabilities. Produced by ZALA Aero Group under Kalashnikov Concern, the system combines portability with sophisticated sensor and communications architecture. The ZALA T-24 embodies a deliberately minimalist design philosophy that prioritizes portability and rapid deployment over extended endurance. The aircraft features a compact folding frame that collapses for transport and fits within a secure carrying case alongside its control systems. This configuration enables tactical units to maintain organic reconnaissance capability without requiring dedicated logistical support or prepared launch facilities. The system achieves its 3.5 kg operational weight through electric propulsion, utilizing a multi-rotor (quadcopter) configuration that eliminates the mechanical complexity of fixed-wing platforms while providing vertical takeoff and rapid repositioning capabilities essential for adaptive battlefield reconnaissance.

Air & Air Defense Specifications
Engine Electric
Range 1.5 km
Endurance 30.00 hrs
Wingspan 550.00 m
System
Alternate Designation ZALA T-24; formally designated ZALA 421-24
Type Unmanned Aerial Vehicle UAV)
Manufacturer Zala Aero Group
Mission The new ZALA T-24 quadrocopter unmanned system has a compact folding design and can remain invisible in the air due to low acoustic and visual visibility.
Features Features of ZALA T-24 system: Compact foldable design; On-board computer; Quick start – no more than 120 seconds; Work from a driving vehicle Low acoustic and visibility Application in a wide range of weather conditions; Control via a manual controller; A quick-detachable receiving antenna is made in the form factor of a standard car antenna. Interference-proof duplicated data transmission channel; Ability to quickly replace the payload; Target retention and tracking; Ability to work with individual positioning devices (ZALA Beacon); Remote data retrieval from the storage device.
Controller The ZALA T-24 is controlled by a manual controller and can be operated from a driving vehicle. The UAV's ease of operation allows you to operate the unmanned system with one person.
Operating Temperature -40°С … +50°С
Maximum Payload Capacity INA
Launch Method INA
Landing Method INA
Dimensions
Length 530 mm
Wingspan 550 mm
Height 190 mm
Takeoff Weight 3.5 kg
Maximum Payload Capacity INA
Automotive
Engine Name INA
Engine Type Electric
Engine Power INA
Maximum Speed INA
Maximum Range 1.5 km
Maximum Altitude INA
Operational Altitude 0 - 500 m
Endurance 30 min
Details
Country of Origin Russia
Category Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
Z
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.53 m
Width
0.55 m
Height
0.19 m
Weight
3.5 kg
Operators (1)
Russia
