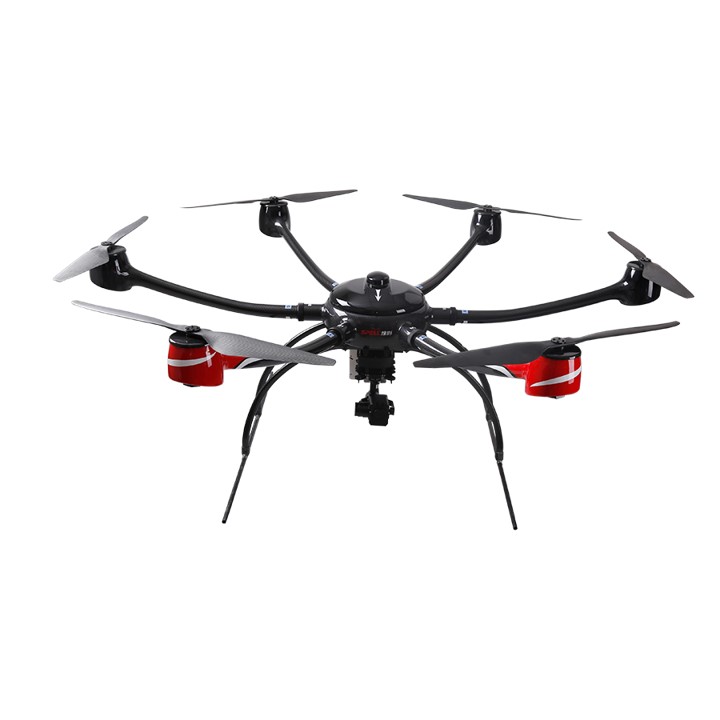

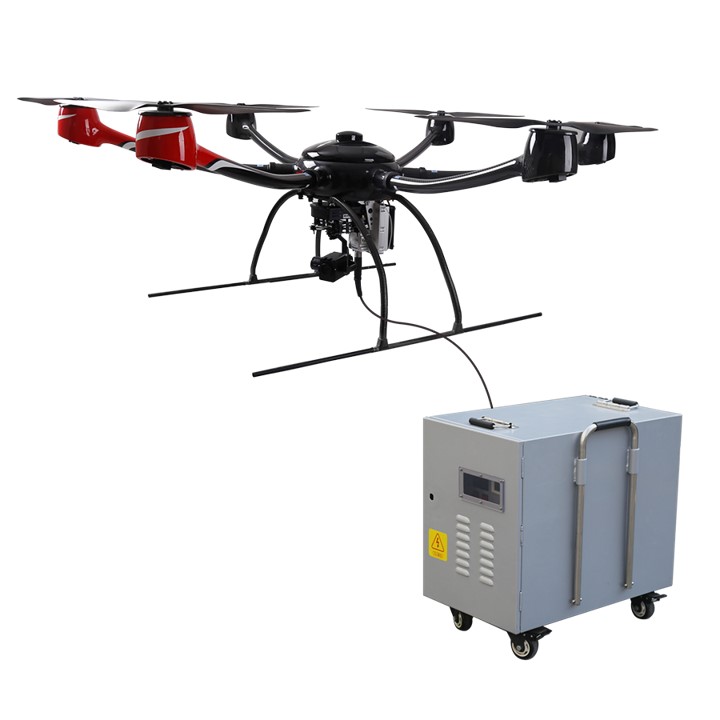

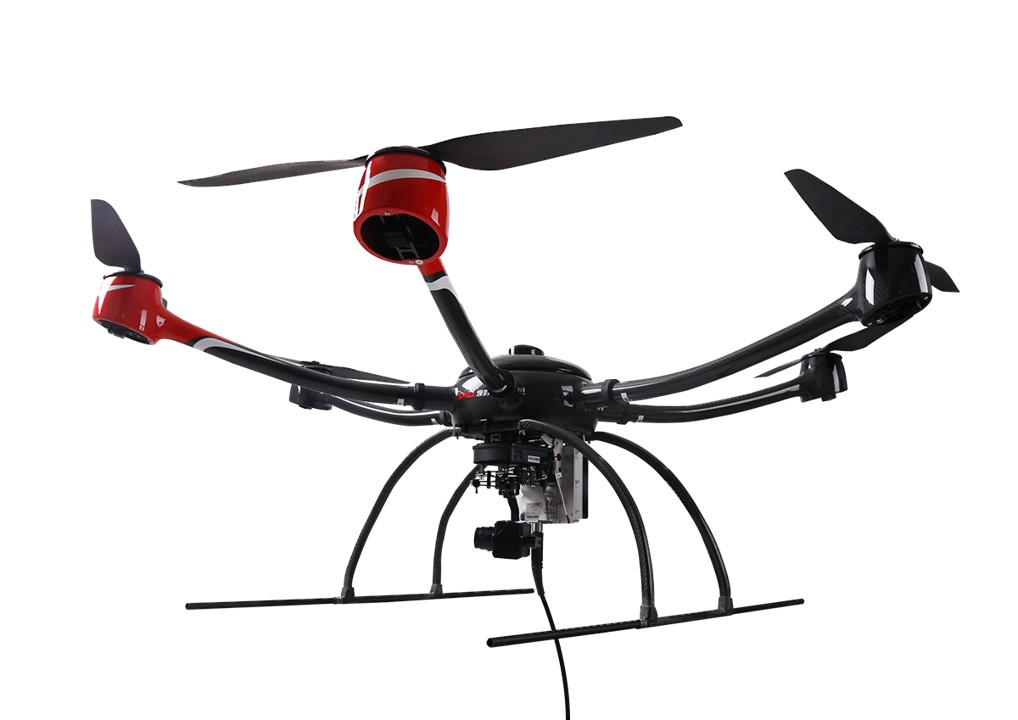

KWT-TMOP-100 Chinese Tethered Unmanned Aerial Vehicle (UAV)
KWT-TMOP-100
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
KWT-TMOP-100 Chinese Tethered Unmanned Aerial Vehicle (UAV)
Designation
KWT-TMOP-100
Alternate Designation
KWT-TMOP-100
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Shenzhen Keweitai Enterprise Development Co.,Ltd
Date of Introduction
2020
Description
The KWT-TMOP-100 Chinese Tethered Unmanned Aerial Vehicle (UAV) is used for industrial applications, aerial photography, telecom applications, inspection, instrument, monitoring, civilian, offshore applications, mapping, logistics, observation, reconnaissance, for the movie industry, for exterior security applications, for photogrammetry, gas detection, for heavy loads.
Air & Air Defense Specifications
Endurance
8.00 hrs
Wingspan
620.00 m
Variants
KWT-TMOP-300
Is used for industrial applications, aerial photography, telecom applications, inspection, instrument, monitoring, civilian, offshore applications, mapping, logistics, observation, reconnaissance, for the movie industry, for exterior security applications, for photogrammetry, gas detection, for heavy loads.
System
Alternate Designation
KWT-TMOP-100
Type
Tethered Unmanned Aerial Vehicle (UAV)
Manufacturer
Shenzhen Keweitai Enterprise Development Co.,Ltd
Autonomy
Semi-Autonomous
Crew
Unmanned
Cable Length
120 m
Deployment Time
less than 4 min
Launching System
Vertical Take-Off and Landing (VTOL)
Recovery System
Vertical Take-Off and Landing (VTOL)
Dimensions
Length
INA
Wingspan
620 mm
Motor Wheelbase
1,600 mm
Fuselage Height
INA
Weight, Empty
2 kg
Maximum Takeoff Weight
15 kg
Automotive
Engine Name
INA
Engine Type
INA
Engine Power
INA
Continuous Working Time
8 hours
Tethered Flight Height
100 m
Height Holding Performance
2 m
Hovering Accuracy
1.5 m
Heading Angle Accuracy
3 deg
Emergency Landing Time
2 min
Endurance
8 hours
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
K
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
15 kg
Operators (1)
China
