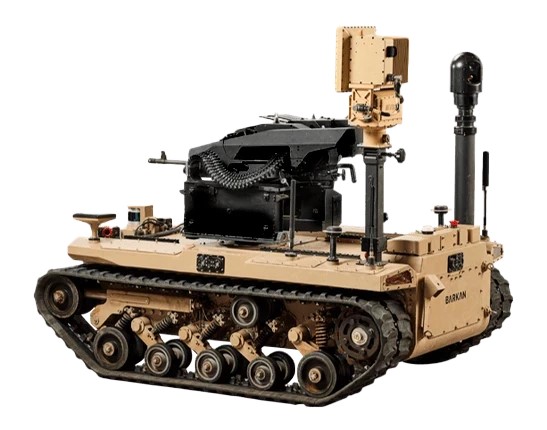

BARKAN 2 Turkish Tracked Unmanned Ground Vehicle (UGV)

BARKAN 2

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
BARKAN 2 Turkish Tracked Unmanned Ground Vehicle (UGV)
Designation
BARKAN 2
Alternate Designation
BARKAN 2
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Havelsan
Date of Introduction
2023
Description

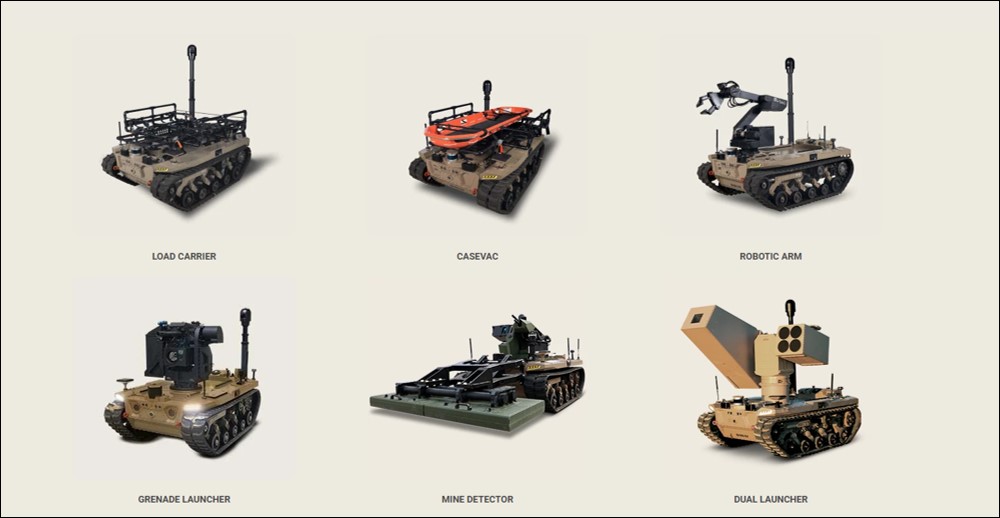

The BARKAN 2 is a Turkish Tracked Unmanned Ground Vehicle (UGV) designed for versatile and autonomous operation in various terrains and environmental conditions. Its modular design enables the integration of different payloads to suit specific mission requirements. The BARKAN 2 is capable of performing critical functions, including providing firepower with various types of weapons, transporting equipment and casualties, detecting improvised explosive devices (IEDs), and conducting surveillance and reconnaissance missions. Additionally, it can assess damage and carry out joint operations with other autonomous vehicles thanks to its swarm infrastructure feature.

Ground Specifications
Mobility Type Tracked
Main Weapon 7.62 mm weapon systems to a 40 mm Genade Launcher
Engine Electric
Max Speed 12.0 km/h
Range 2.0 km
System
Alternative Designation BARKAN 2
Type Tracked Unmanned Ground Vehicle (UGV)
Manufacturer Havelsan
Configuration Track
Crew Unmanned
Payload Capacity 200 – 300 kg
Features Front / Rear LED Lighting; Front IR Lighting; Front / Rear / Right / Left Driving Cameras; Bidirectional Audio Transmission System; Cargo and Towing Kits
Robotic Arm Robotic Arm (Bomb Disposal Mission)
Surveillance System Uprageable Peripheral Surveillance System (Thermal / Day)
Operating Temperature -20°C - +49°C
Dimensions
Length 190 cm
Width 125 cm
Height 100 cm
Weight Without Payload 750 kg
Automotive
Engine Name INA
Engine Type Electric Motor
Engine Power INA
Tactical Data Link Range 2 km (In Line of Sight)
GSM Communication Wired Communication (with Fiber Optic Cable)
Maximum Speed 12 km/h
Endurance 5 hours
Main Weapon System
Note The vehicle can be mounted wirth a variety of weapons systems from 7.62 mm weapon systems to a 40 mm Genade Launcher.
Protection
Armor INA
Applique Armor INA
Details
Country of Origin Turkey
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.9 m
Width
1.25 m
Height
1 m
Weight
750 kg
Operators (1)
Turkey
