Bung Tomo Class Indonesian Corvette

Bung Tomo Class'

Corvette
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Bung Tomo Class Indonesian Corvette
Designation
Bung Tomo Class'
Alternate Designation
Bung Tomo Class'; They were originally built for the Royal Brunei Navy and named Nakhoda Ragam-class corvettes but were ultimately bought by Indonesia and renamed.
Equipment Type
Corvette
Manufacturer
Date of Introduction
2014
Description

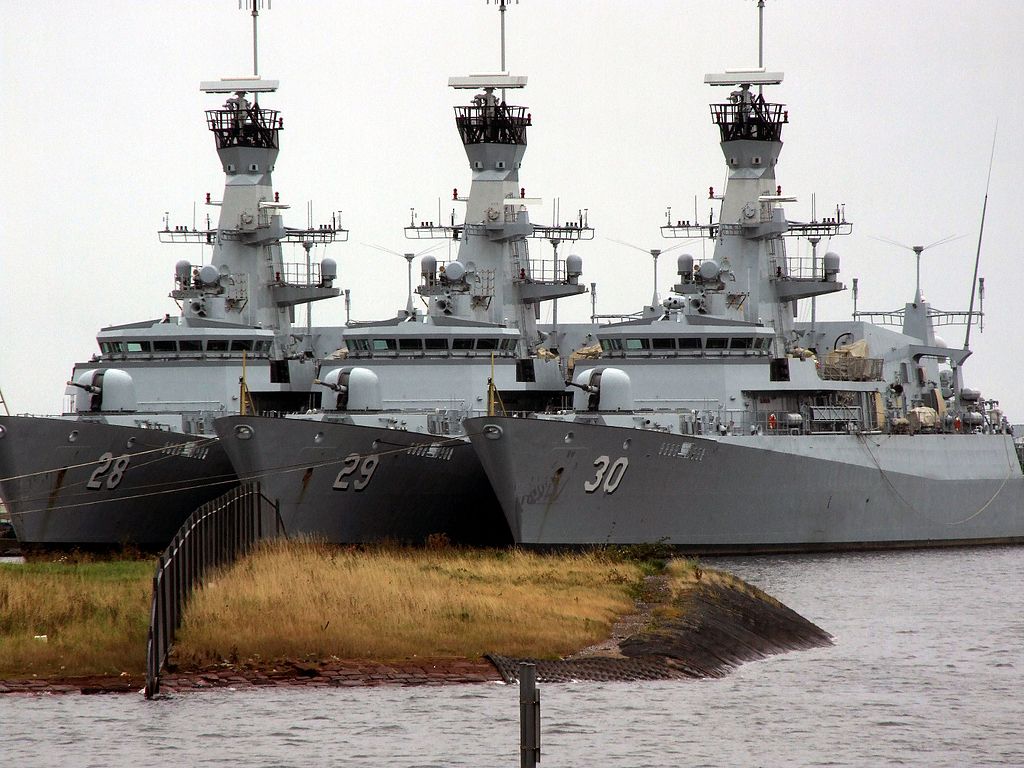

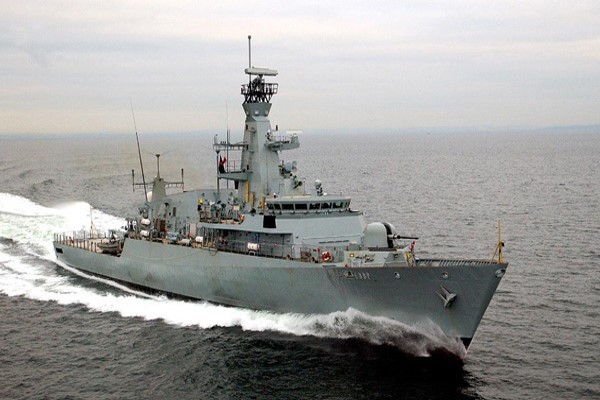

The Bung Tomo class is a class of three Indonesian multi role patrol corvettes. They were originally built for the Royal Brunei Navy and named Nakhoda Ragam-class corvettes but were ultimately bought by Indonesia and renamed. The class is named after Bung Tomo, a noted leader of Indonesia's independence movement. The three vessels were built by BAE Systems Marine (now BAE Systems Maritime - Naval Ships). The contract was awarded to GEC-Marconi in 1995 and the ships, a variant of the F2000 design, were launched in January 2001, June 2001 and June 2002 at the then BAE Systems Marine yard at Scotstoun, Glasgow. The customer refused to accept the vessels and the contract dispute became the subject of arbitration. When the dispute was settled in favour of BAE Systems, the vessels were handed over to Royal Brunei Technical Services in June 2007. In 2007, Brunei contracted the German Lürssen shipyard to find a new customer for the three ships; in November 2012, it was announced that Indonesia had signed a memorandum of understanding with Britain to acquire the vessels for one-fifth of the original unit cost. The ships are now in service with the Indonesian Navy. The ships were originally armed with MBDA Exocet Block II anti-ship missiles and MBDA Seawolf air defence missiles. The main gun is an Oto Melara 76 mm; the ship also carries two torpedo tubes, two 30 mm remote weapon stations and has a landing spot for a helicopter. As 2018 the MBDA Seawolf missile was out of service due to expired and there was plan to replace it with VL Mica. In late December 2014, KRI Bung Tomo was involved in search and recovery operations of the Indonesia AirAsia Flight 8501 which crashed off the Java Sea between the islands of Belitung and Borneo. Later in early January 2015, KRI Usman Harun was deployed to search for the black boxes as the ship is equipped with the Thales Underwater Systems TMS 4130C1 hull-mounted sonar. KRI Bung Tomo is named after Sutomo, the leader of Indonesian guerrillas during the Battle of Surabaya. The naming of KRI John Lie memorializes the first Chinese Indonesian to be honored as National Hero of Indonesia, who was also one of the first high ranking navy commanders during the Indonesian National Revolution. The naming of KRI Usman-Harun memorializes Harun Said and Osman Hj Mohd Ali, who were executed by Singapore after the MacDonald House bombing, creating a controversy between the two nations.

Naval & Littoral Specifications
Crew 79
Beam 12.80 m
Draft 3.60 m
Variants

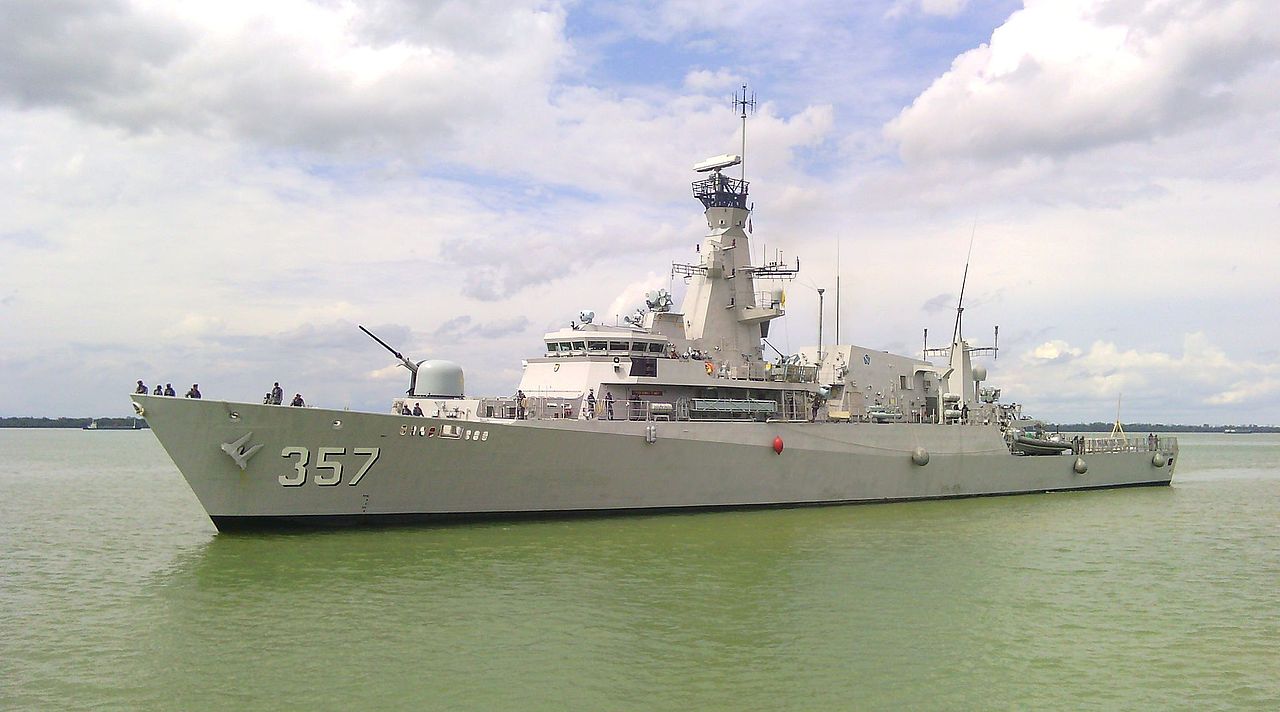

KRI Bung Tomo (ex KDB Jerambak) Commissioned: 2014 Status: Active
KRI John Lie (ex KDB Bendahara Sakam) Commissioned: 2014 Status: Active
KRI Usman-Harun (ex KDB Nakhoda Ragam) Commissioned: 2014 Status: Active
System
Alternative Designation Bung Tomo Class'; They were originally built for the Royal Brunei Navy and named Nakhoda Ragam-class corvettes but were ultimately bought by Indonesia and renamed.
Total Built 3 ships built
Type Corvette
Builder BAE Systems Marine
In Service 2014-Present
Crew 79 men (up to 24 passengers)
Note The ships were originally armed with MBDA Exocet Block II anti-ship missiles and MBDA Seawolf air defence missiles. The main gun is an Oto Melara 76 mm; the ship also carries two torpedo tubes, two 30 mm remote weapon stations and has a landing spot for a helicopter. As 2018 the MBDA Seawolf missile was out of service due to expired and there was plan to replace it with VL Mica.
Dimensions
Length 95 m
Beam 12.8 m
Draft 3.6 m
Displacement, Standard 1,500 tons
Displacement, Full Load 2,000 tons
Note The ship has 12,572 cubic ft (356 cubic m) of ballast. A total of 4,767 cubic ft (135 cubic m) of fresh water and 24,791 cubic ft (702 cubic m) of fuel can be carried. Two bow thrusters permit precise maneuvering. Fin stabilizers are fitted.
Propulsion System
Engine Name 4 x MAN B&W diesel engines
Engine Type Diesel
Engine Power 40,500 shp
Propellers 2 controllable-pitch propellers
Maximum Range 5 000 nm at 12 knots
Maximum Speed 30 knots
Endurance 14 days
Communications
Radio Classified
Missile Weapon System
Missile System #1
Name Exocet Missile
Type Anti-Ship Missile
Quantity 2 × 4 Exocet MM40 Block II missile launchers.
Launcher MM40 Block II missile launchers.
Missile Basic Load 8
Length 6 m
Diameter 34.8 cm
Wingspan 1.35 m
Weight 780 km
Warhead 165 km
Engine Solid propellant engine turbojet (MM40 Block 3 version)
Operational Range 180 km
Flight Altitude Sea-skimming
Speed Mach 0.93 1,148 kilometres per hour (713 mph; 319 m/s)
Guidance System Inertial guidance and terminal active radar homing
Launch Platform multi-platform: *MM38 surface-launched *AM39 air-launched *SM39 submarine-launched *MM40 surface-launched
Missile Weapon System #2
Name Sea Wolf Missile
Type Surface-to-Air Missile
Quantity 1 x VLS for Seawolf SAM Launcher
Launcher Vertical Launching System
Missile Basic Load 16 x Sea Wolf Missile
Length 1.9 m
Diameter 180 mm
Wingspan 450 mm
Weight 82 kg
Warhead 14 kg (30.9 lb) HE Blast-Fragmentation
Detonation Mechanism Direct contact/Proximity fuse activated
Engine Blackcap solid fuel sustainer
Operational Range 1–10 km
Flight Ceiling 3,000 m
Speed Mach 3 (3,675 km/h; 2,284 mph)
Guidance System Automatic Command to Line-Of-Sight (ACLOS)
Steering System Control surfaces
Gun Weapon Systems
System
Name OTO Melara 76mm
Type Naval Gun
Caliber 76mm
Quantity 1 x 76-mm/62-cal Oto Melara Super Rapid DP
Barrel Length 4,724.4 mm
Weight Empty: 7.5 tonnes (17,000 lb)
Crew Remote Controlled
Elevation −15°/+85°
Traverse 360°
Rate of Fire 85 rounds/min
Muzzle Velocity 915 m/s
Maximum Firing Range 16,000 m
Feed System Magazine capacity: 80 ready rounds on Compact gun mount
Ammunition
Type Rifle
Caliber 76 mm
Shell 76×636mmR cartridge weight 12.5 kilograms (28 lb) shell weight 6.3 kilograms (14 lb) propellant weight 2.35 kilograms (5.2 lb)
Basic Load INA
Gun Weapon System #2
Name DS30M Mark 2 Automated Small Calibre Gun
Type Naval Gun
Caliber 30mm
Quantity 2 x 30-mm/75-cal DS 30B AA
Note The DS30M Mark 2 system consists of a 30mm Mark 44 Bushmaster II on a fully automated mount or manual controlled with an off-mount electro-optical director (EOD). The gun and the EOD are controlled from a remote operator console elsewhere on the ship. The "mount is a single cannon naval mount that is gyro stabilized, electrically operated and self contained gun mounting featuring a choice of cannon, control mode and sights. It has low magnetic, radar and IR signatures and excellent ergonomic availability, reliability and maintainability (ARM)." In theory "the unique dual feed system of the Bushmaster series allows the operator to select different types of ammunition for use against a variety of targets. The safety, reliability and low life-cycle costs of the Bushmaster system added to its overall value." However, photographs show only a single ammunition feed.
Ammuntion Gun Weapon System #2
Type Rifle
Caliber 30mm
Shell INA
Basic Load INA
Torpedo Weapon System
Torpedo Tubes 2 x triple BAE Systems 324-mm Mark 32 ASW
Torpedo Name Mark 46 Torpedo
Torpedo Basic Load 6 x Mark 46 Torpedo
Onboard Aviation Facilities
Facilities Flightdeck, no hangar
Helicopter 1 x Eurocopter AS565 Panther[
Fire Control
Gun and Missile FCS 2 x AMS-1802SW gun/missile fire control
Weapons Tracking System 1 x Rademac 2500 surveillance and tracking system
Radar Systems
Navigation Radar 1 x Thales Scout navigation
Air Search Radar 1 x Alenia Marconi Systems (AMS) AWS-9 3-D air-search radar
Sonar Systems
Hull-Mounted Sonar 1 x Thales TMS-4130C1 hull-mounted sonar
Protection
Active Protection System Yes
Electronic Warfare 1 x Racal Cutlass 242 intercept and Scorpion Jammer
Decoy 1 x Super Barricade decoy rocket launcher
NBC Protection Yes
Details
Country of Origin Indonesia
Category Naval
Naval
Filter Label
B
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
95 m
Width
Height
Weight
Operators (1)
Indonesia
