Astute Class British Nuclear-Powered Attack Submarine
Astute Class
Nuclear-Powered Attack Submarine
Other
Basic Information
Name
Astute Class British Nuclear-Powered Attack Submarine
Designation
Astute Class
Alternate Designation
Astute Class
Equipment Type
Nuclear-Powered Attack Submarine
Manufacturer
—
Date of Introduction
2010
Description

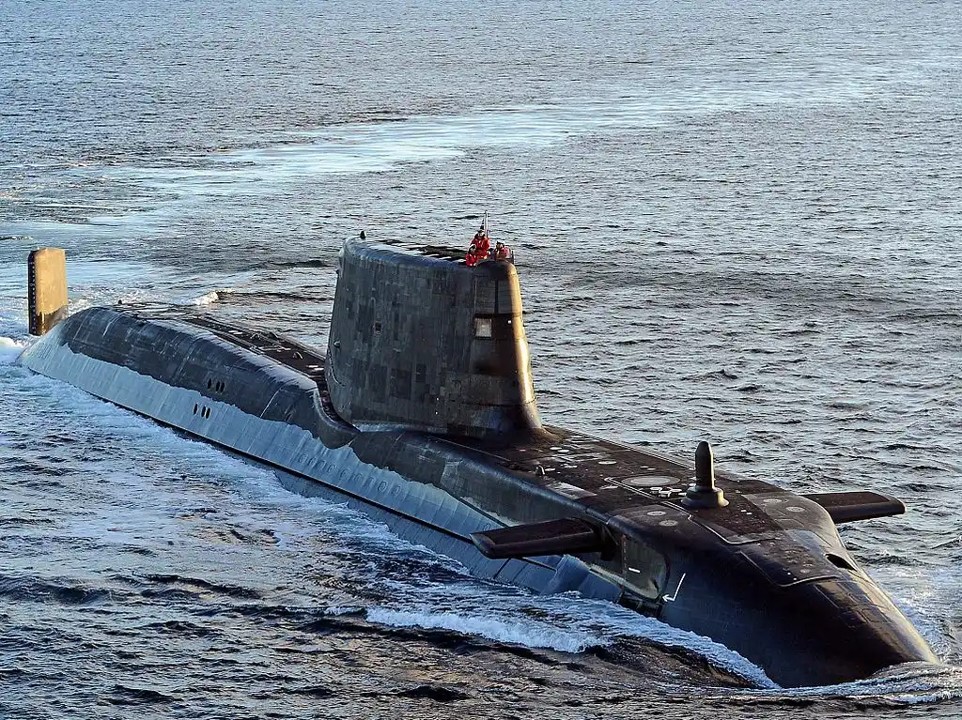

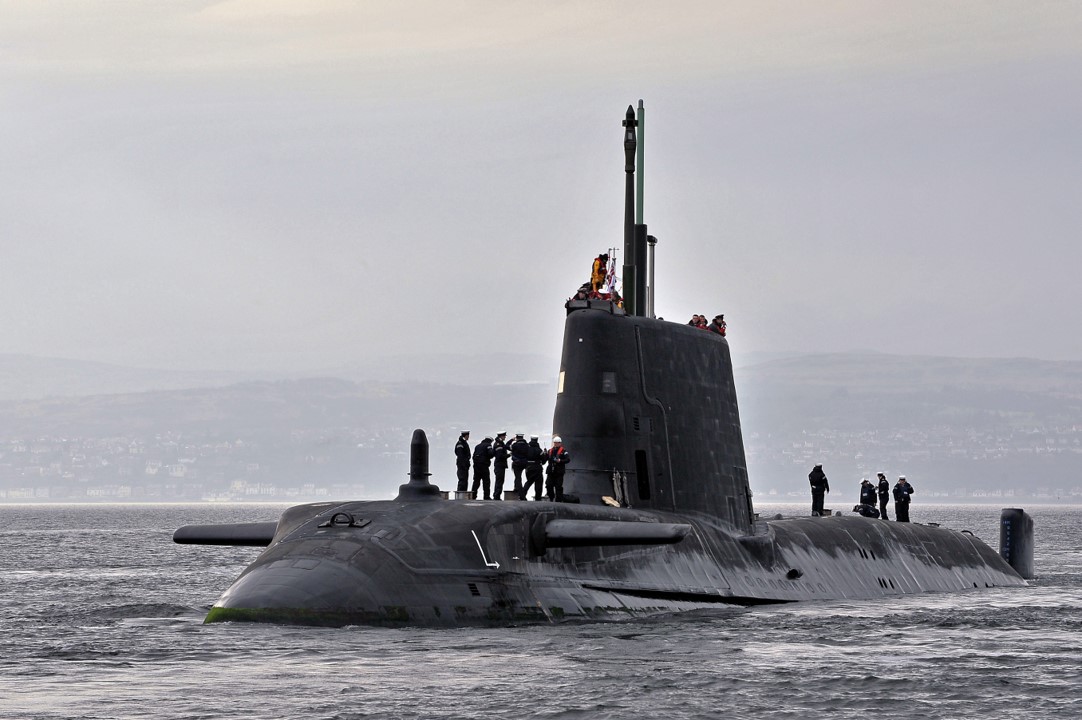

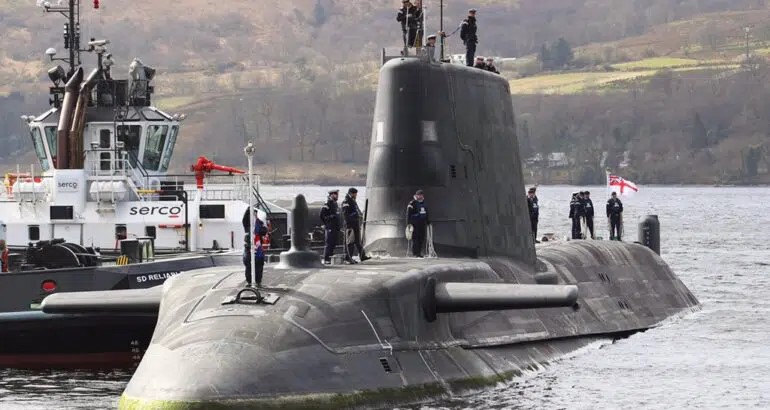

The Astute Class British Nuclear-Powered Attack Submarine is the latest class of nuclear-powered fleet submarines (SSNs) in service with the Royal Navy. The boats are being constructed by BAE Systems Submarines at Barrow-in-Furness. Seven boats will be constructed: the first of class, Astute, was launched by Camilla, Duchess of Cornwall, in 2007, commissioned in 2010, and declared fully operational in May 2014. The Astute class is the replacement for the Trafalgar-class fleet submarines in Royal Navy service.
Naval & Littoral Specifications
Crew
18
Beam
11.27 m
Draft
10.00 m
Variants
Astute
Commissioned: 2010
Status: Active
Ambush
Commissioned: 2013
Status: Active
Artful
Commissioned: 2016
Status: Active
Audacious
Commissioned: 2020
Status: Active
Anson
Commissioned: 2022
Status: Active
Agamemnon
Commissioned: INA
Status: Active
Agincourt
Commissioned: INA
Status: Active
System
Alternative Designation
Astute Class
Type
Nuclear-Powered Attack Submarine
Builder
BAE Systems Submarines, Barrow-in-Furness
Crew
Officers: 18; Enlisted: 98
Dimensions
Length
97.0 m
Height
INA
Beam
11.27 m
Draft
10.0 m
Displacement, Surface
6,500 tons
Displacement, Submerged
7,400 tons
Propulsion System
Engine Name
1 × Rolls-Royce PWR 2 nuclear reactor
Engine Type
Nuclear
Engine Power
MTU 600 kilowatt diesel generators
Maximum Range
Unlimited
Maximum Speed, Submerged
30 kt (55.6 km/h)
Missile Weapon System
Note
Raytheon UGM-109E Tomahawk Block IV TACTOM; inertial, TERCOM and GPS-aided navigation with DSMAC to 1,600+ km at Mach 0.7; warhead (WDU-36/B) 313 kg.
Torpedo System
Note
6 x 533 mm tubes. BAE Systems Spearfish Mod 0; dual purpose; wire-guided; active/passive homing to 23.2 km at 60 kt; attack speed 70 kt; thermal; warhead 300 kg shaped charge. Being upgraded to Mod 1 by 2024. Total of 38 weapons.
Mine System
Note
In lieu of torpedoes.
Radar System
Navigation Radar
I-Band
Sonar System
Note
1 x Thales 2076 integrated suite (bow, flank, fin and towed arrays).
Protection
Hull Armor
INA
Physical Countermeasures
Decoys
Electronic Countermeasures
1 x Thales UAA4; intercept.
NBC Water Washdown System
Yes
Details
Country of Origin
United Kingdom
Category
Submarines
Naval > Submarines
Filter Label
A
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
97 m
Width
—
Height
—
Weight
—
Operators (1)
United Kingdom
