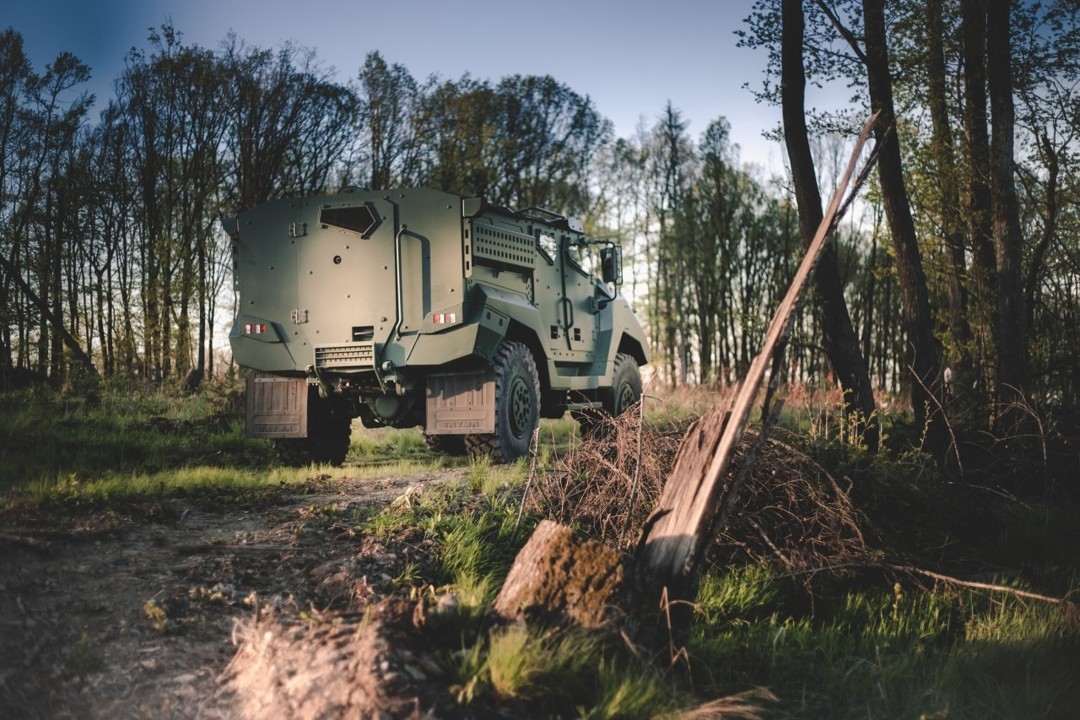

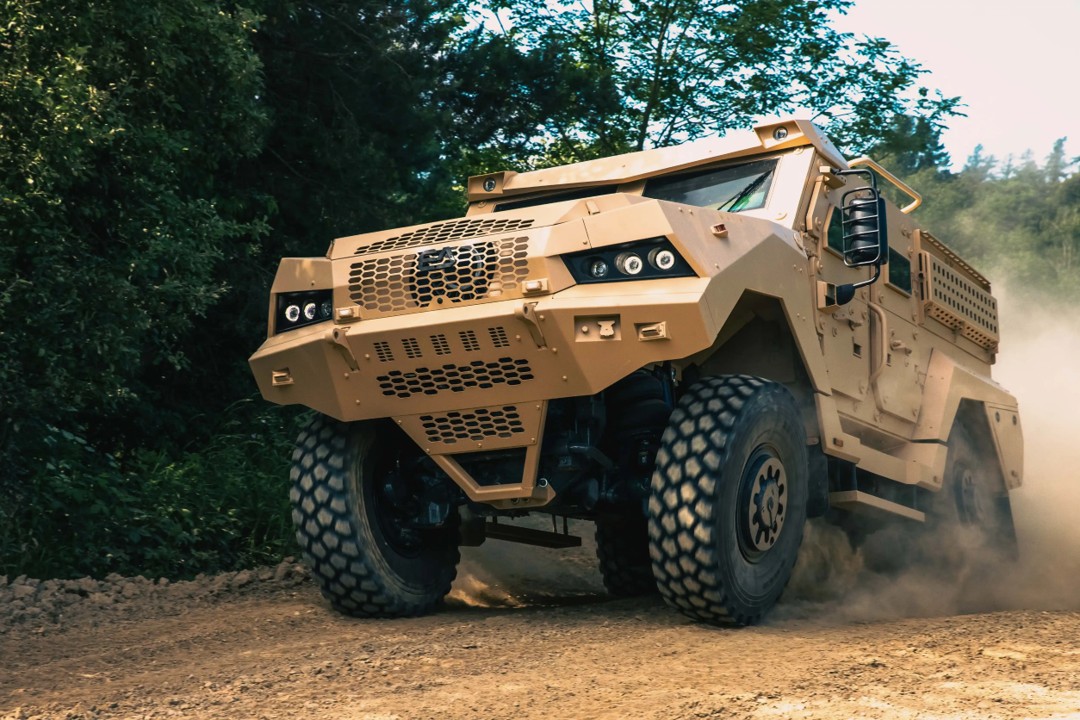

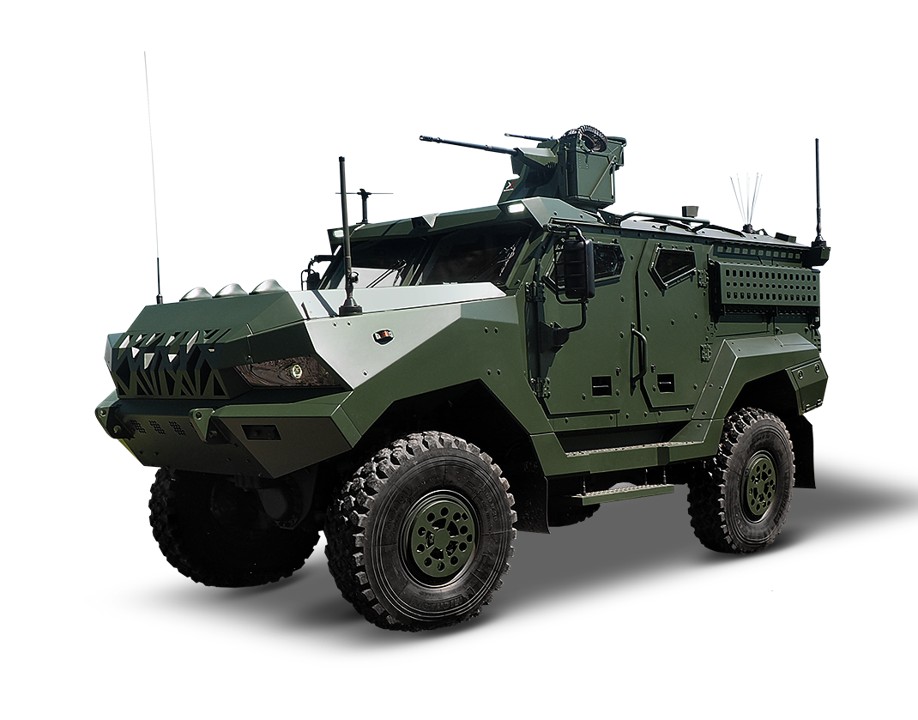

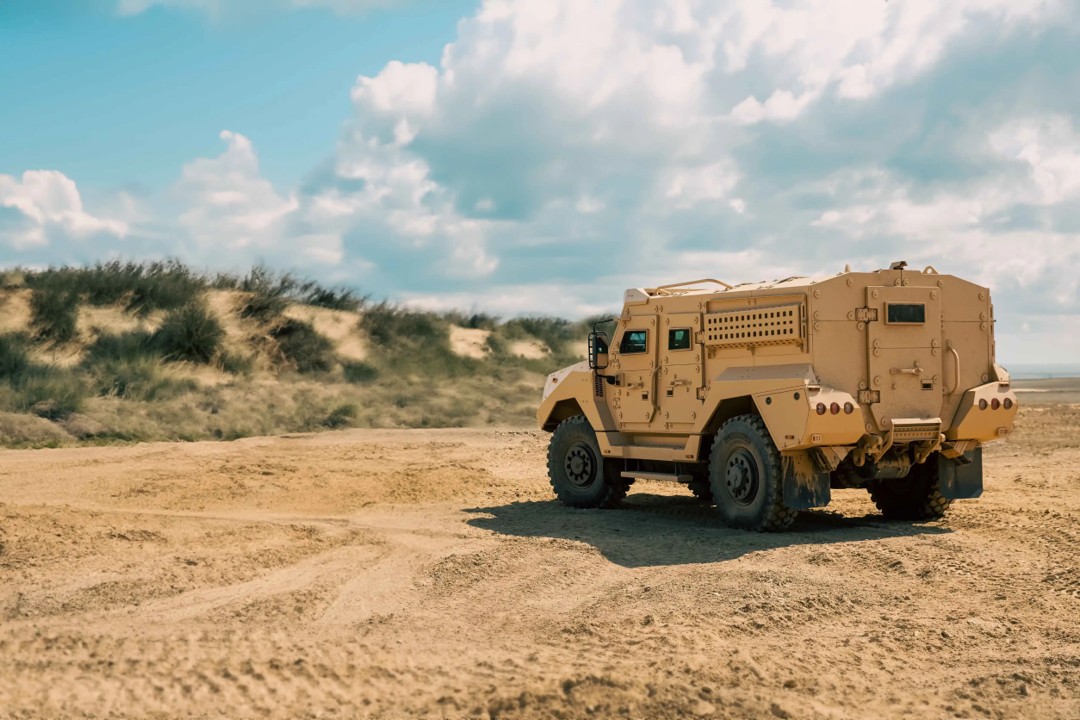

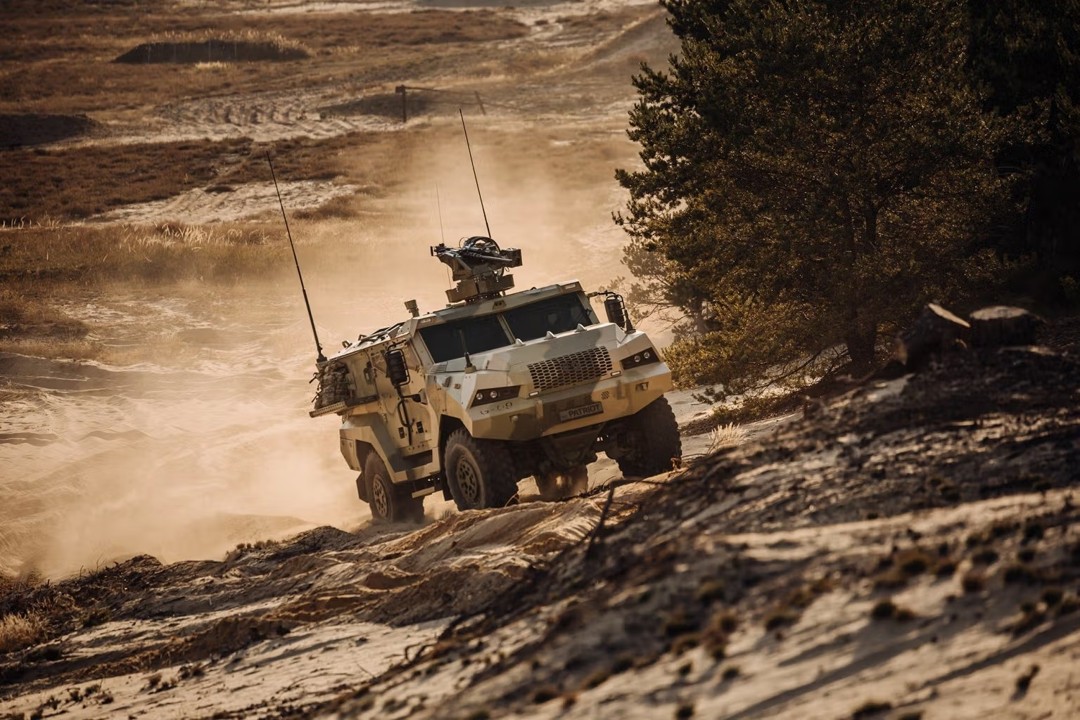

Patriot Czechia 4x4 Armored Wheeled Combat Vehicle

Patriot

Wheeled Armored Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Patriot Czechia 4x4 Armored Wheeled Combat Vehicle
Designation
Patriot
Alternate Designation
Patriot
Equipment Type
Wheeled Armored Vehicle
Manufacturer
Excalibur Army
Date of Introduction
2018
Description

The Patriot Czechia 4x4 Armored Wheeled Combat Vehicle is designed as a multi-purpose tactical vehicle, configurable for various roles such as artillery support, general military reconnaissance, command and staff operations, and chemical medical evacuation, among others. This vehicle is an evolution of the first-generation PATRIOT model produced in 2018 and incorporates several new features, notably a longer cabin that offers more space for troops and equipment. Thanks to its versatile platform, mission kits can be customized according to customer requirements. The vehicle is equipped with air conditioning and an NBC (nuclear, biological, and chemical) filtration system, ensuring a high level of comfort and safety for the crew. Additionally, both the cabin and the engine are fitted with fire extinguishing systems and self-cooling mechanisms. With an air-cooled and water-cooled engine, the vehicle is suitable for operation in various environments. The weapon and tactical platforms of the vehicle are designed to transport troops or squads, allowing them to conduct military operations using remote-controlled weapons mounted on the vehicle, with the crew on board. Basic ballistic and mine protection features, along with installed weapons, enable continuous full-range combat operations during less intense military conflicts. Furthermore, the integrated but detachable weapon systems can function outside of the vehicle, providing significant firepower and enhancing the defense capabilities of the crew.

Ground Specifications
Crew 6
Mobility Type Wheeled (4x4)
Engine Diesel (270 hp)
NBC Protection Yes
Max Speed 110.0 km/h
Range 600.0 km
System
Alternative Designation Patriot
Type Armored Wheeled Combat Vehicle
Manufacturer Excalibur Army
Configuration 4x4
Crew 6-8 ea
Dimensions
Length 6,250 mm
Width 2,550 mm
Height 2,700 - 2,800 mm
Weight, Combat 13.5 - 18 tons (per vehicles protection and equipment)
Automotive
Engine Name Cummins ISL, EURO III
Engine Type Diesel
Engine Power 270 kW, water-cooled
Maximum Range 600 km
Maximum On-Road Speed 110 km/h
Maximum Off-Road Speed 45 km/h
Amphibious No
Gradient 45 deg
Side Slope 32 deg
Step 0.5 m
Trench 0.9 m
Fording 1.2 m
Main Weapon System
Note PATRIOT vehicles have been designed as a medium-class armored wheeled combat vehicles with remote controlled weapon station equipped with gun mounts, carrying potentially up to 20 mm RCWS, 7.62, 12.7 or 14.5 mm caliber machine guns, automatic grenade launchers, and anti-tank weapon systems.
Protection
Armor Armored hull for the crew is based on a proven solution called „Kitted Hull Concept“ and has been designed and tested to withstand ballistic threat equivalent to Level 2, 3 or 4 and mine threat at Level 2a/2b or 3a/3b (optional level) according to STANAG 4569.
Applique Armor Available
NBC Protection Yes
Smoke Equipment Yes
Details
Country of Origin Czech Republic
Category Land
Land
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.25 m
Width
2.55 m
Height
2.7 m
Weight
13500 kg
Operators (1)
Czech Republic
