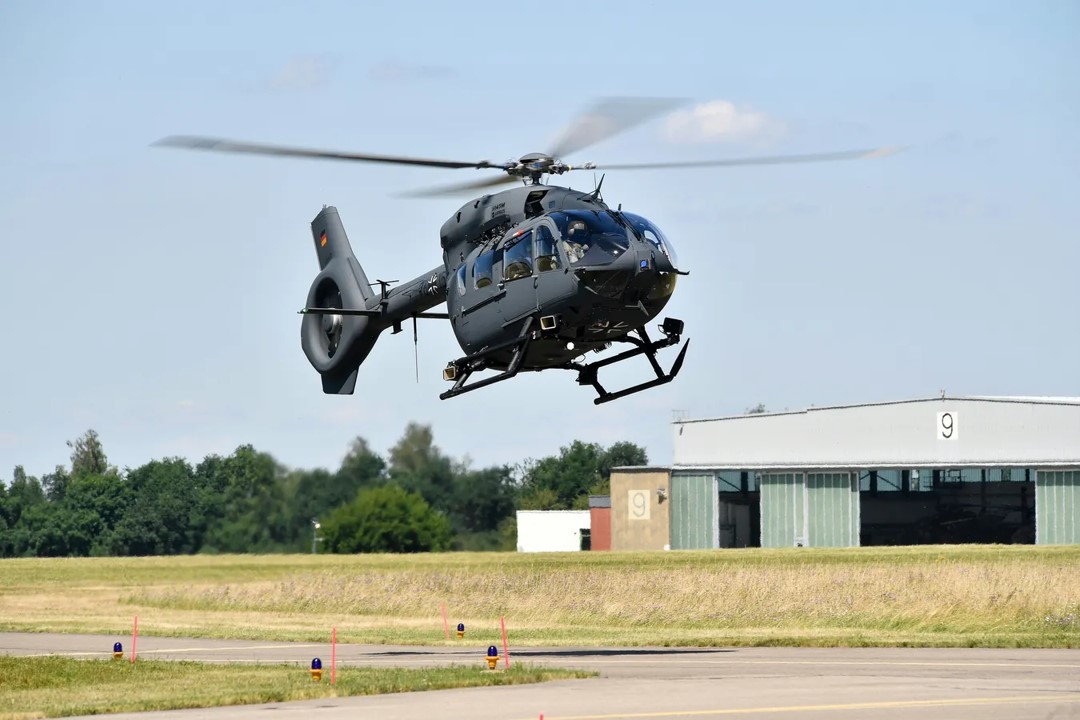

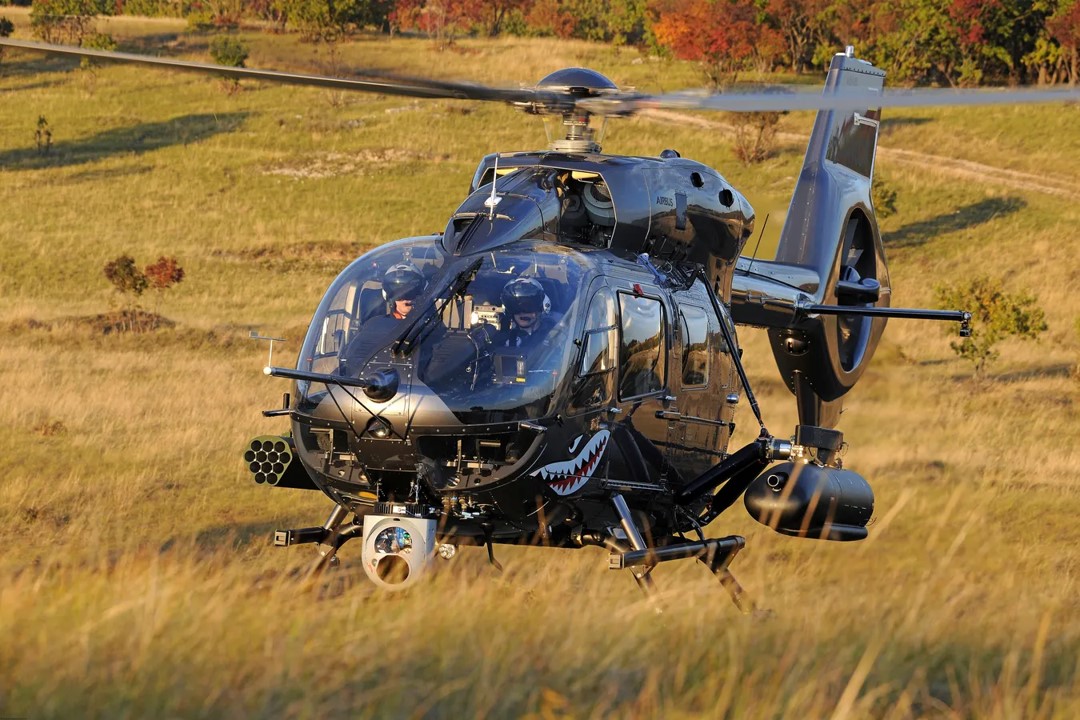

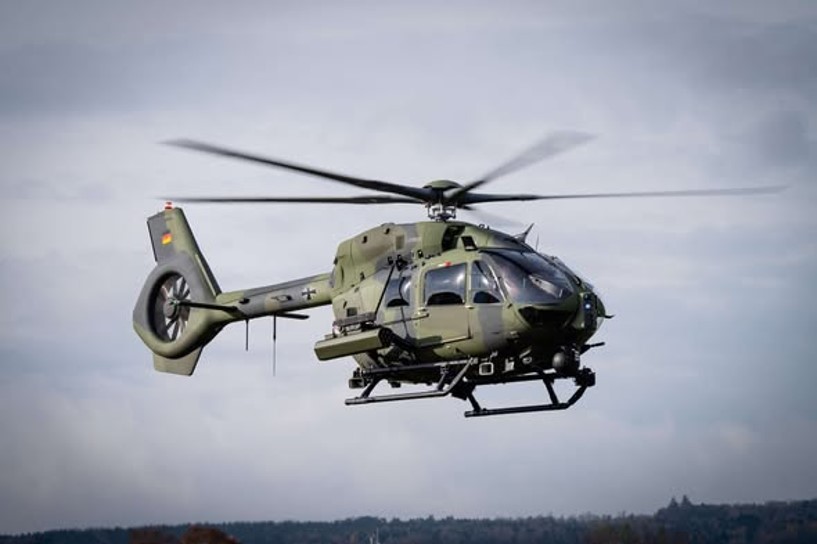

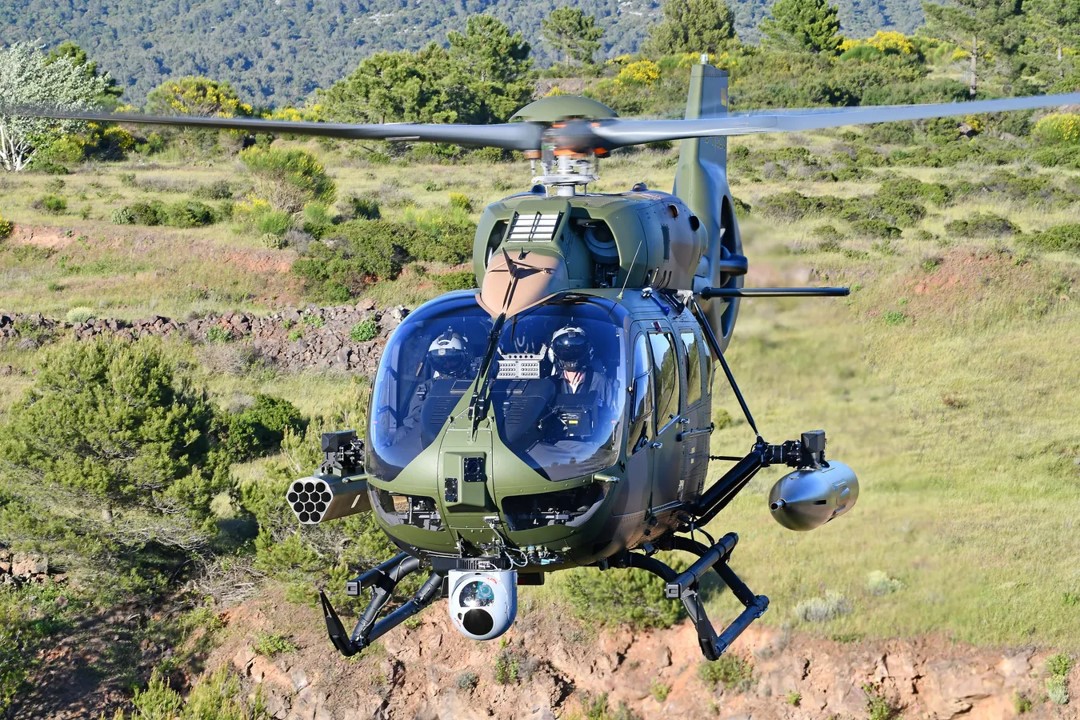

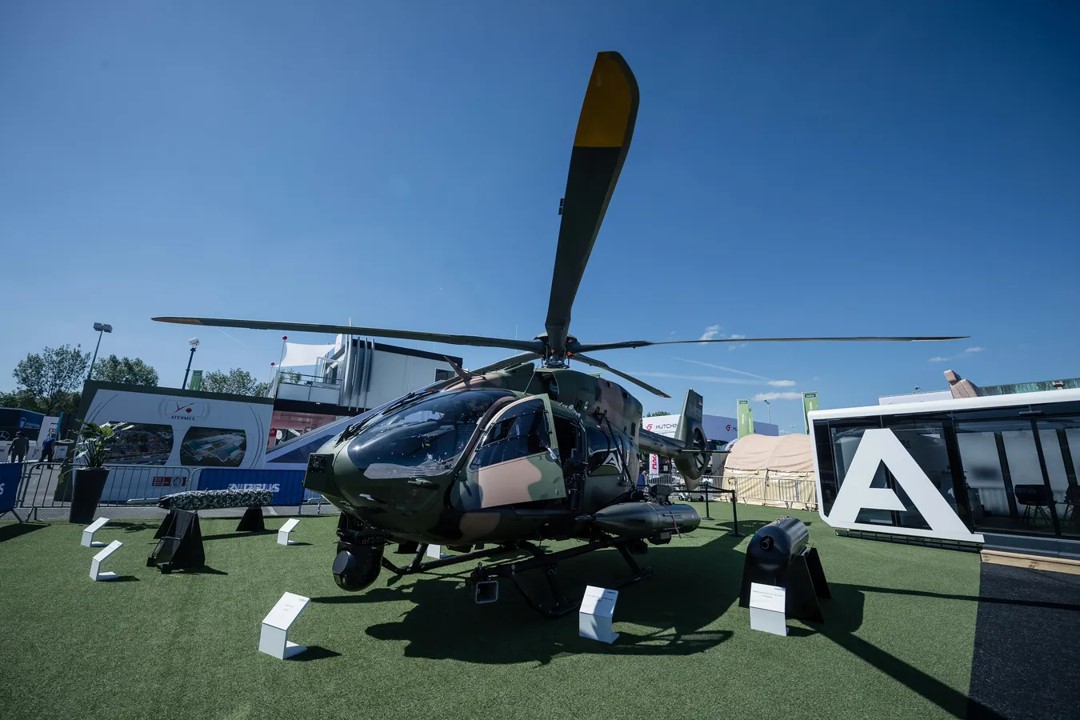

H145M French Light Combat Helicopter

H145M

Light Combat Helicopter
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
H145M French Light Combat Helicopter
Designation
H145M
Alternate Designation
H145M
Equipment Type
Light Combat Helicopter
Manufacturer
Airbus
Date of Introduction
2024
Description

The H145M French Light Combat Helicopter is a modern, twin-engine light combat helicopter designed for versatile military operations, combining agility, rapid reconfiguration capability, and modular weapon systems. It represents the military variant of the proven H145 civil platform, which has accumulated over eight million flight hours globally. The H145M is a highly flexible multi-role platform optimized for operations requiring rapid deployment and reconfiguration. Its primary mission spectrum includes training, reconnaissance, special forces operations, light attack, armed scout missions, search and rescue, MEDEVAC/CASEVAC, and tactical transport. A defining characteristic is the ability to transition between mission profiles within minutes—shifting from a fully armed attack configuration to a special operations insertion platform with fast-rope equipment, or to a transport configuration with up to ten passengers. The H145M fills the critical gap between utility transport helicopters and heavy attack platforms. Its low operating cost, high agility, rapid reconfiguration, and proven reliability make it attractive for nations prioritizing rapidly deployable light rotary-wing support for special forces and rapid-reaction missions. The aircraft can be transported and deployed via Airbus A400M, enabling rapid crisis response and contingency operations.

Air & Air Defense Specifications
Crew 2
Engine Turboshaft
Max Speed 269.0 km/h
Cruise Speed 241.0 km/h
Range 663.0 km
Endurance 3.00 hrs
Payload Capacity 1893 kg
System
Alternative Designation H145M
Type Light Combat Helicopter
Primary Function Airbus
Crew 2 ea
Passengers 10 ea
Number of Hard Points The Airbus H145M light combat helicopter features two external hardpoints on its stub wings, allowing it to carry various modular weapons, primarily through the HForce system, including anti-tank missiles (like Spike ER2), guided rockets (like Thales FZ275), and other precision munitions, enabling light attack, recon, and special ops roles for forces worldwide.
Payload Capacity 1,893 kg
Sling Load Capacity (Single Hook) 1,600 kg
Auxiliary Systems and Mission Equipment Hoist system with 90-meter cable and 272 kg (600 lb) lift capacity (either side)​; Single or dual stretcher capability for MEDEVAC operations​; Fast-rope systems for rapid special operations insertion​; External cargo hooks for transport and utility missions​; Ballistic protection kits for high-threat environments​; Electronic self-protection systems​; Maritime-specific equipment for maritime missions; ​ Reconnaissance sensor packages for day/night surveillance​; Optional auxiliary fuel tanks (100 kg additional capacity) for extended range​; Bleed air heating system for operations in extreme cold.
Operating Temperature -45°C to +50°C; rated for 6K/95 high-and-hot conditions (6,000 ft altitude at 95°F/35°C)
Dimensions
Overall Length (rotors operating) 13.54–13.6 m
Width (Blades Folded) 2.7 m
Main Rotor Diameter 10.8 m
Height 4.0 m
Maximum Takeoff Weight 3,800 kg
Empty Weight 2,315 kg
Automotive
Engine Name 2 x Safran Turbomeca Arriel 2E
Engine Type Turboshaft engines
Takeoff Power 667 kW (894 shp) per engine
Maximum Continuous Power 575 kW (771 shp) per engine
Fuel Capacity 723 kg
Maximum Speed 269 km/h
Cruise Speed 241 km/h
Maximum Range 663 km
Hover Ceiling 2,729 m
Maximum Altitude for Takeoff and Landing 6,096 m
Endurance 3 hours and 30 min
Main Weapon System
Note The H145M can be equipped with the Airbus HForce modular weapon management system, enabling rapid configuration between ballistic and guided weapons packages. HForce Weapons Capability: Ballistic weapons: 7-tube and 12-tube rocket launchers, machine gun pods (12.7 mm), 20 mm cannon pods​; Guided weapons: Air-to-surface missiles, laser-guided rockets​. Variants: Three escalating capability packages ranging from simple ballistic firing through helmet-mounted displays to electro-optical systems (EOS) and guided weapon deployment​. The weapon system is fully integrated with the Helionix cockpit for fire control, enabling precise targeting and comprehensive mission planning. The HForce system qualifies as cost-efficient, incremental, and modular—applicable across the entire Airbus military helicopter family (H125M, H145M, H225M).
Avionics and Sensors

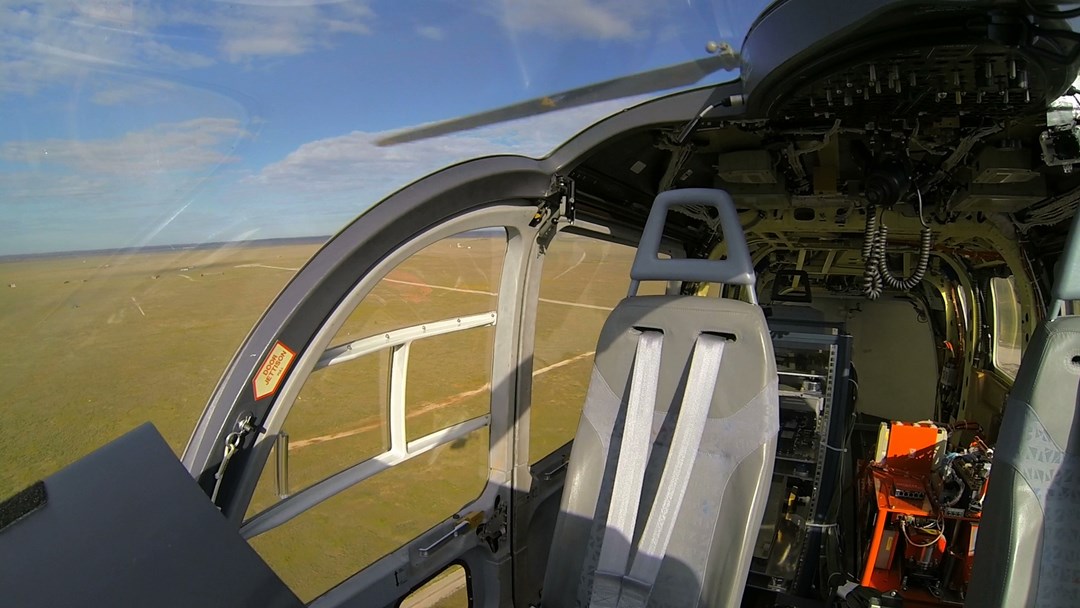

Note The H145M incorporates the Helionix digital avionics suite, a fully digital glass cockpit that significantly enhances operational capability and pilot situational awareness. Avionics Features: Three large LED multi-function displays (MFDs) with innovative cooling concepts​; 4-axis dual-duplex autopilot with envelope protection and automated flight management​; Synthetic vision system (SVS)​; Digital terrain awareness and warning system (HTAWS)​; Electronic flight bag (EFB)​; Radar altimeter​; Night vision goggle (NVG) compatibility​; Dual-channel redundant computers with two-channel architecture​; Wireless airborne communication server (wACS) for secure data exchange​; Advanced flight envelope protection and over-limit warnings. The Helionix system provides superior pilot assistance, reduced workload through intuitive human-machine interfaces (HMI), and unprecedented levels of flight safety with self-monitoring and innovative alerting systems.
Protection
Protection The H145M incorporates comprehensive survivability measures for high-threat environments: Self-sealing fuel tanks to prevent catastrophic fuel loss from ballistic damage​; Ballistic protection for crew compartment​; Fenestron shrouded tail rotor (composite asymmetrical blades) providing enhanced safety, improved anti-torque control, and reduced acoustic signature​; Low acoustic footprint—among the quietest in its class, facilitating special operations and reconnaissance missions​​; Electronic warfare system (EWS) for threat detection and countermeasures​; IR suppressor to reduce infrared signature​; Crashworthiness design incorporated into airframe and seats.
Details
Country of Origin France
Category Rotary Wing Aircraft
Air > Rotary Wing Aircraft
Filter Label
H
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
13.54 m
Width
Height
4 m
Weight
3800 kg
Operators (12)
France
Germany
Serbia
Belgium
Brunei
Cyprus
Ecuador
Honduras
Hungary
Ireland
Luxembourg
Thailand
