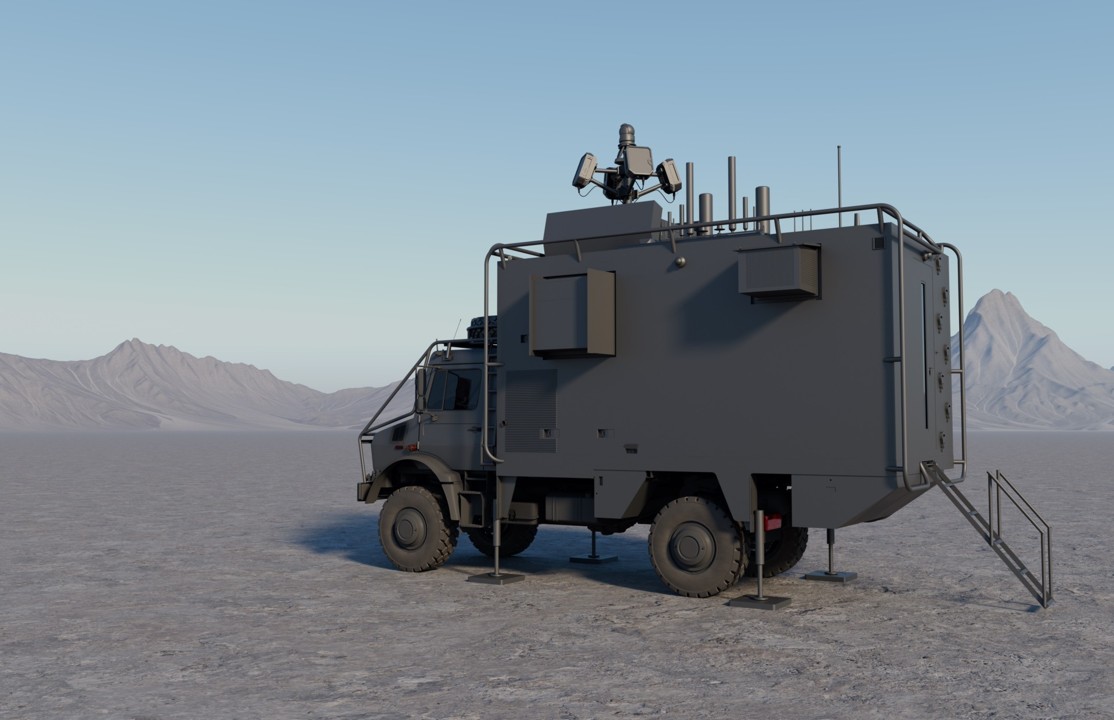

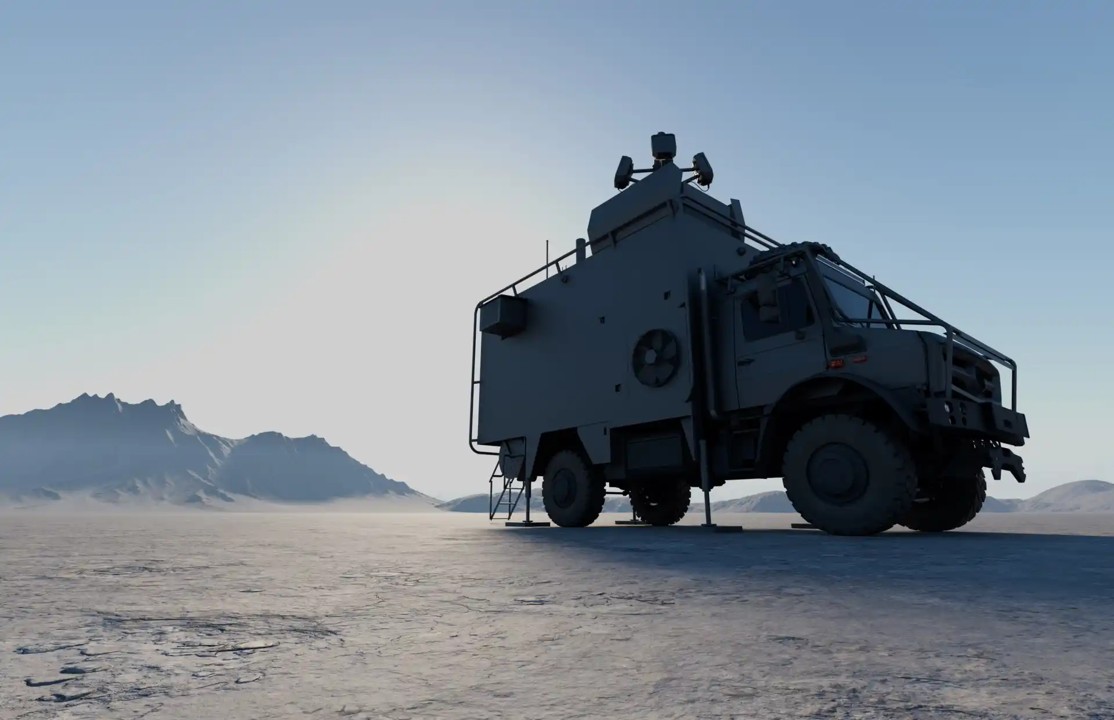

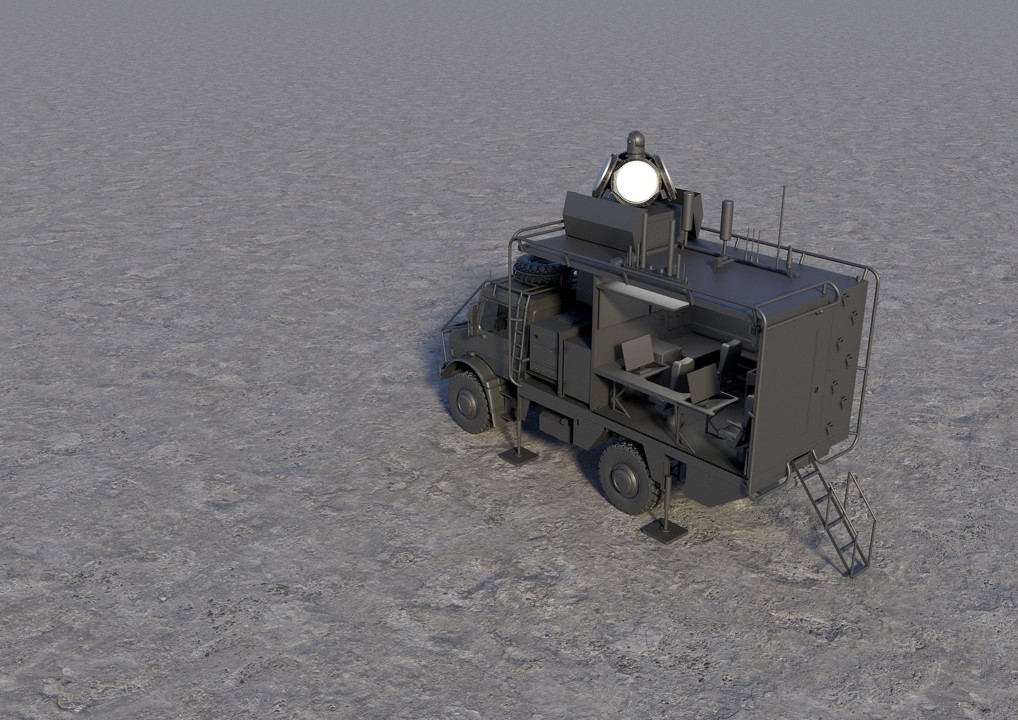

NiDAR X-TERRA British Mobile Command and Control System

NiDAR X-TERRA

Mobile Command and Control System
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
NiDAR X-TERRA British Mobile Command and Control System
Designation
NiDAR X-TERRA
Alternate Designation
NiDAR X-TERRA
Equipment Type
Mobile Command and Control System
Manufacturer
MARSS
Date of Introduction
2023
Description

The NiDAR X-TERRA British Mobile Command and Control System is designed for independent operation while also capable of connecting to multi-site networks. It enhances Forward Operating Base (FOB) capabilities through automated detection, alerts, monitoring, and countermeasure functions, providing optimized awareness and control. At its core is NiDAR CORE, an AI-powered Internet of Things (IoT) platform that drives all MARSS solutions. The X-TERRA unit is a fully equipped mobile command center designed to identify and neutralize both land-based and airborne threats, including Unmanned Aerial Systems (UAS) and drones. NiDAR CORE features unrivaled capabilities in AI-powered IoT, utilizing Hybrid Intelligence solutions to maximize situational awareness. This technology outperforms traditional defense software without sacrificing quality. The system also supports optimal connectivity to kinetic countermeasures, which can effectively eliminate UAS or drone swarms at a range of up to 8 kilometers. Unmanned Aerial Systems (UAS) are particularly adept at exploiting gaps in conventional intelligence and surveillance. These systems continue to advance in terms of autonomy, range, and destructive payload. With its advanced NiDAR Counter Unmanned Aerial System (CUAS) capabilities, the X-TERRA can function as perimeter surveillance or in field operations, delivering a long-range mobile defensive solution to counter UAS threats swiftly and decisively. Built for military, security, or tactical operations, the X-TERRA can be customized to meet client specifications, including sensor and hardware configurations, chassis selection, software and system programming, and connectivity options.

Ground Specifications
Crew 4
Max Speed 100.0 km/h
Range 8.0 km
System
Alternative Designation NiDAR X-TERRA
Type Mobile Command and Control System
Manufacturer MARSS
Crew 4 ea
Chassis INA
Maximum Road Speed 100 km/h
Off-road Capability OEM capability
Transport / Logistics By road. The box and vehicle can be shipped separately by C130 aircraft
PA and Flashing Lights Yes
Awning Optional
Retractable Mechanism Scissor lift platform - 1000kg capacity
Levelling Capability Vehicle: +/-3-5 degrees accuracy via electrical jacks; Camera: +/-0.1 degrees accuracy
Deployment Capability Electrical jacks
Maintenance Features Retractable rails, all part accessible, access stairs to roof and all compartments
Detection Range 30 km
Tracking Range 8 km
Jamming Range 6 km

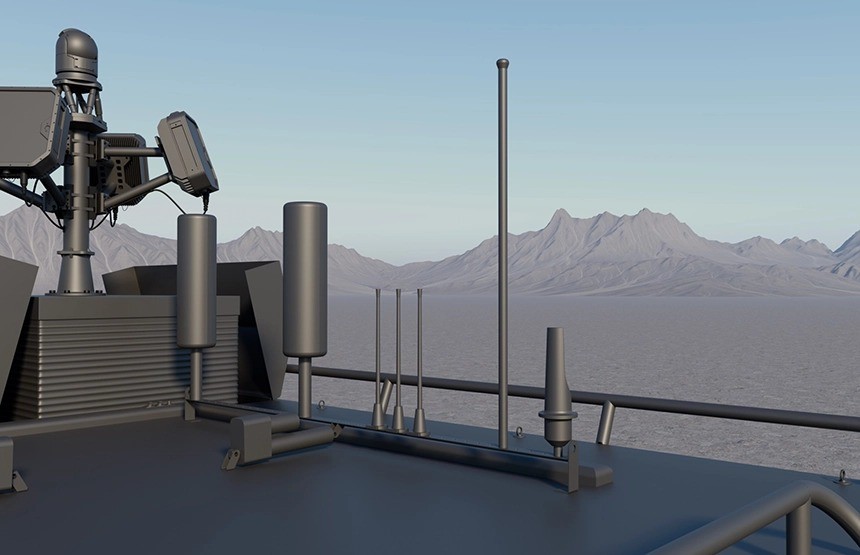

Remote Communication Optional MIMO radio or sat
Operator Screens 2x 50” screens + 4x 26” consoles
CCTV Perimeter Surveillance Yes, 4 cameras giving 360 degrees coverage
Power Generation Grid power or on-board generator
Generator Capacity 36 kW
Generator Autonomy(Stand-Alone) Up to 20 hours
UPS UPS for soft-shutdown by default
Dimensions
Deployed Dimensions 7.5m x 3.6m x 5.7m
Box Body Dimensions 5m x 2.8m x 2.8m
Weight, Vehicle Alone 4.1 tons
Weight, Box Body 4.2 tons
Details
Country of Origin United Kingdom
Category Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.5 m
Width
Height
5.7 m
Weight
4100 kg
Operators (1)
United Kingdom
