M690Pro Chinese Unmanned Aerial Vehicle (UAV)

M690Pro

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
M690Pro Chinese Unmanned Aerial Vehicle (UAV)
Designation
M690Pro
Alternate Designation
M690Pro
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
T-DRONES
Date of Introduction
2021
Description

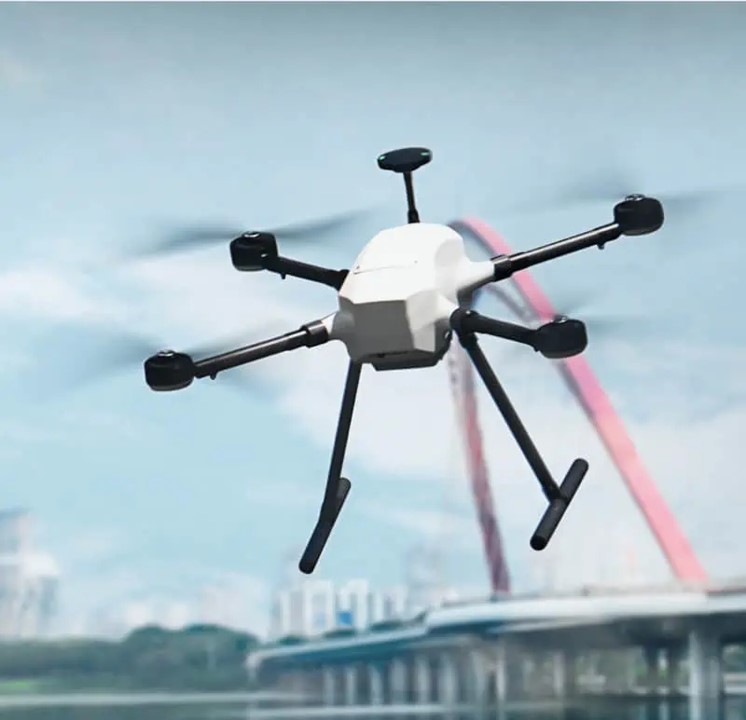

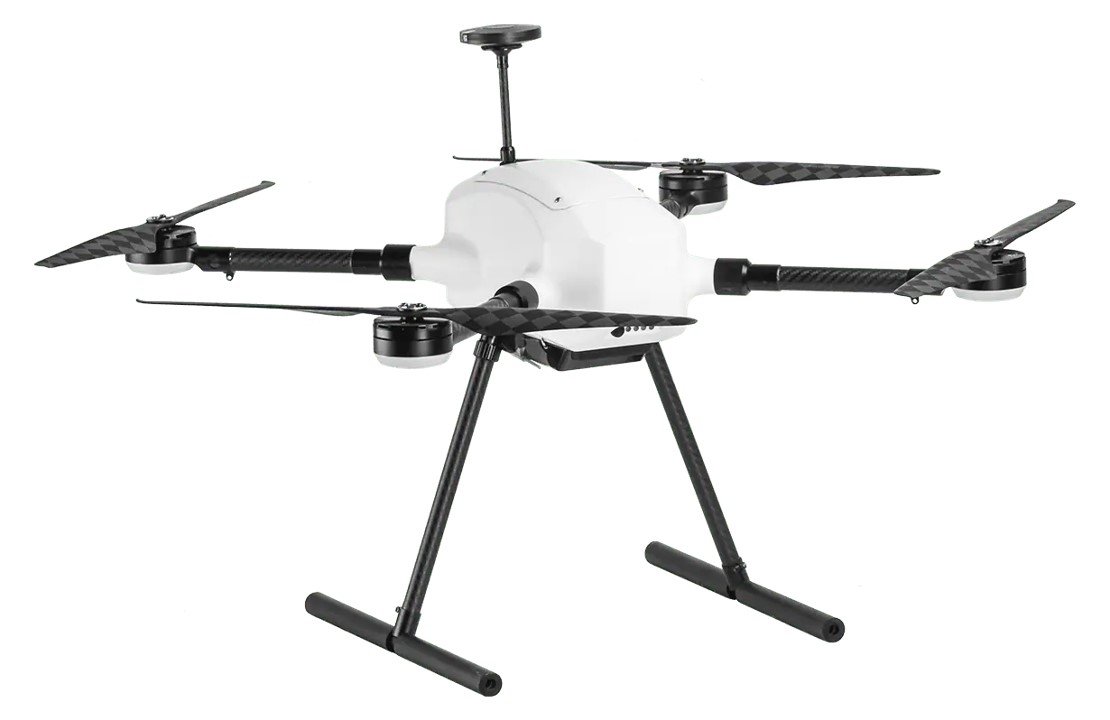

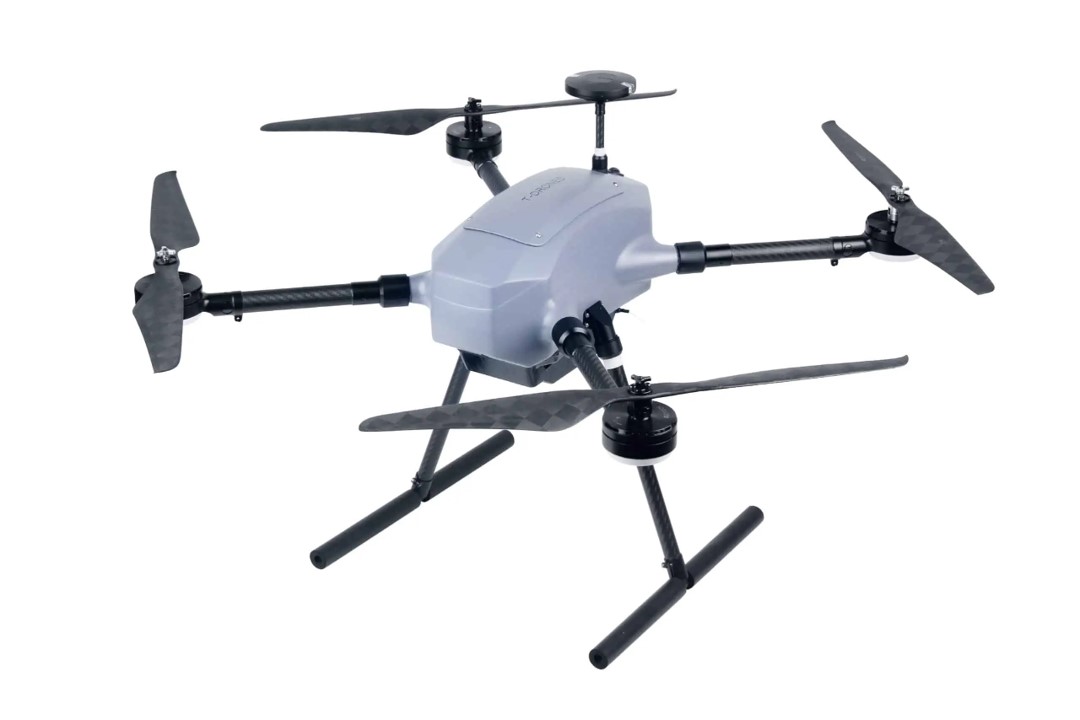

The M690Pro Chinese Unmanned Aerial Vehicle (UAV) s a Chinese-made, long-endurance, backpack-portable quadcopter UAV developed by T‑DRONES (often branded together with T‑MOTOR propulsion products). It is an industrial/commercial multirotor platform optimized for 1–2 kg payloads, with endurance up to approximately 55 minutes at 1 kg payload and a maximum take‑off weight around 6 kg. Positionally, it sits in the mid‑size industrial quadcopter class: larger and more robust than hobby drones, but lighter and more portable than heavy-lift multirotors. It is marketed for mapping, surveying, inspection, public safety, surveillance, and other professional applications, and is explicitly advertised as suitable for “military supervision” among its mission sets.

Air & Air Defense Specifications
Engine Electric
Range 10.0 km
Endurance 55.00 hrs
Payload Capacity 2 kg
System
Alternate Designation M690Pro
Type Unmanned Aerial Vehicle (UAV)
Manufacturer T-DRONES
Payload Capacity 2 kg

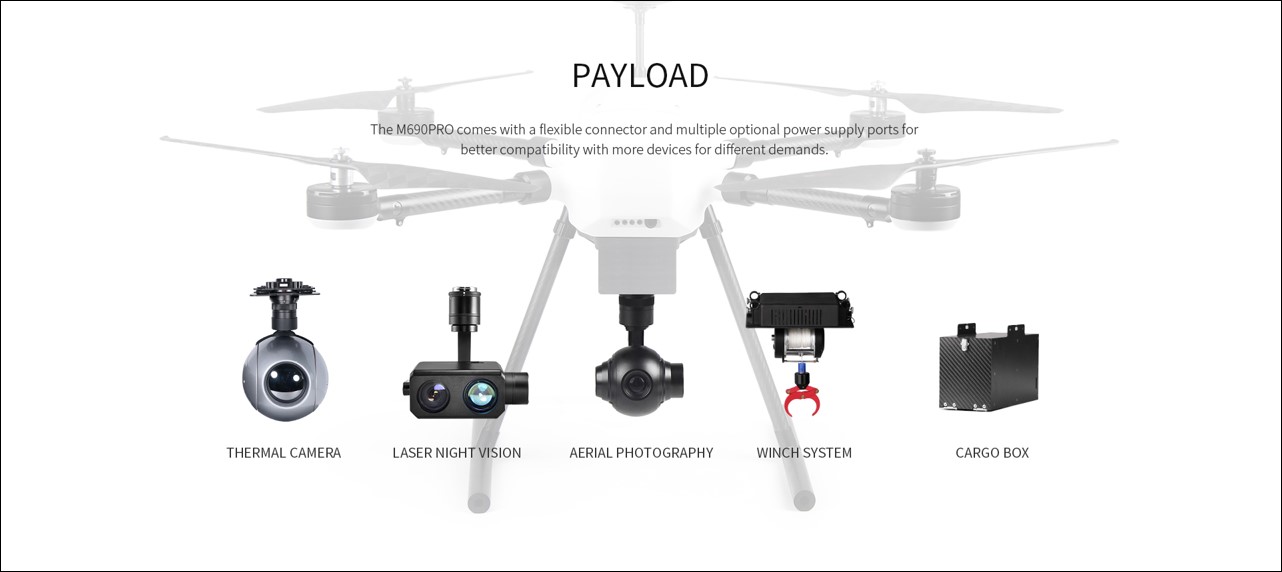

Optional Payloads The M690PRO comes with a flexible connector and multiple optional power supply ports for better compatibility with more devices for different demands. You may choose from the following equipment: Thermal Camera, Laser Night Vision, Aerial Photography, Winch System, and Cargo Box.
Control System PIXHAWK
Operating Temperature -15℃~50℃
Dimensions
Wheelbase 700 mm
Dimensions(Unfolded) 550 x 550 x 445mm(Without Props)
Dimensions Folded 283 x 278 x 175mm(With Landing Gear,Without Props)
Weight of Drone (Without Battery) 1.69 kg
Weight of Drone (With Battery) 3.59 kg
Weight of Battery Standard Smart 6S 22AH battery*1PC : 2.18 kg
Maximum Takeoff Weight 6.0 kg
Automotive
Engine Name T-Motor
Engine Type Electric
Engine Power INA
Maximum Ascent Speed 5 m/s
Maximum Descending Speed 3 m/s
Maximum Horizontal Flight Speed 15 m/s
Maximum Range 10 km
Service Ceiling INA
GPS Hover Accuracy Vertical:±0.2m; Horizontal:±0.1m
Hover Time 1kg ≥55mins; 2kg ≥40mins
Endurance 55 minutes with 1 kg payload
Maximum Tolerable Wind Speed 14 m/s
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
6 kg
Operators (1)
China
