R-360 Neptune Ukrainian Short-Range Anti-Ship Cruise Missile

R-360 Neptune

Cruise Missile
Spotted an error? Sign in to suggest an edit.
R-360 Neptune Ukrainian Short-Range Anti-Ship Cruise Missile
Other

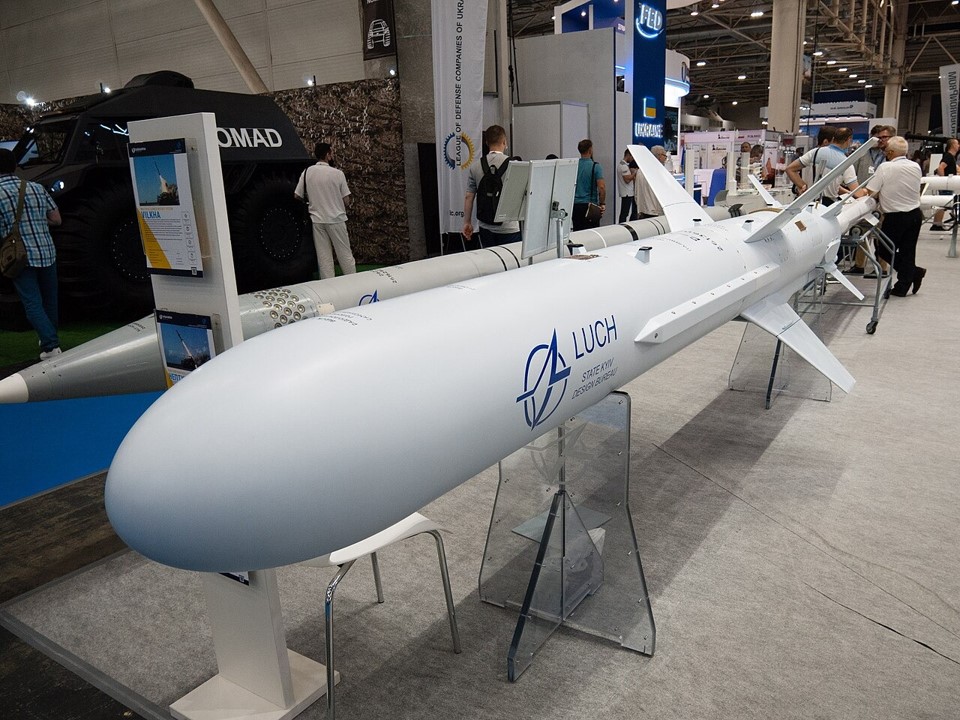

R360 Neptune Ukrainian Missile (B)TRADOC ODIN WEG
Thumbnail
Thumbnail
Basic Information
Name
R-360 Neptune Ukrainian Short-Range Anti-Ship Cruise Missile
Designation
R-360 Neptune
Alternate Designation
R-360 Neptune
Equipment Type
Cruise Missile
Manufacturer
Luch Design Bureau
Date of Introduction
2021
Description

The R-360 Neptune Ukrainian Anti-Ship Cruise Missile is a Ukrainian, indigenously developed, land-based subsonic anti-ship missile system developed by Luch design bureau to strike warships and coastal targets with an aim to protect Ukraine's coastal areas and to deter Russian naval actions in the area.

Air & Air Defense Specifications
Max Speed 900.0 km/h
Range 300.0 km
Wingspan 1300.00 m
Variants
Neptune RK-360MT Extended range to 1,000 km able to hit land and sea targets.
System
Alternate Designation R-360 Neptune
Type Anti-Ship Cruise Missile
Manufacturer Luch Design Bureau
Engine The R-360 missile is powered by MS-400 turbojet engine.
Guidance System The missile likely uses inertial guidance with terminal active radar homing.
Control The missile likely uses inertial guidance with terminal active radar homing.
Seeker The missile is designed with an active seeker.
Warhead The missile has an integrated 150 kg high-explosive (HE) fragmentation warhead.
Maximum Range 300 km
Maximum Speed 900 km/h
Launcher The entire complex consists of four launch vehicles, crewed by three personnel each, a 6×6 command-and-control vehicle, and two loading vehicles. The launchers are capable of firing 24 cruise missiles simultaneously with a launch interval of 3–5 seconds.
Dimensions
Length 5.0 m
Diameter 420 mm
Wingspan 1,300 mm
Weight, with Container 870 kg
Image Sources
Notes https://en.wikipedia.org/wiki/R-360_Neptune; https://www.twz.com/ukrainian-neptune-cruise-missile-lands-in-russia-largely-intact
Details
Country of Origin Ukraine
Category Short-Range Cruise Missiles (SRCM) (Less than 600 km)
Air > Short-Range Cruise Missiles (SRCM) (Less than 600 km)
Filter Label
R
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
5 m
Width
0.42 m
Height
—
Weight
870 kg
Operators (1)
Ukraine
