2S9 Anona (SO-120) Russian 120mm Amphibious Self-Propelled Mortar
2S9 Anona
Self-Propelled Mortar (SPM)
Other
Basic Information
Name
2S9 Anona (SO-120) Russian 120mm Amphibious Self-Propelled Mortar
Designation
2S9 Anona
Alternate Designation
2S9 Anona; SO-120 (Russian army designation).
Equipment Type
Self-Propelled Mortar (SPM)
Manufacturer
—
Date of Introduction
1981

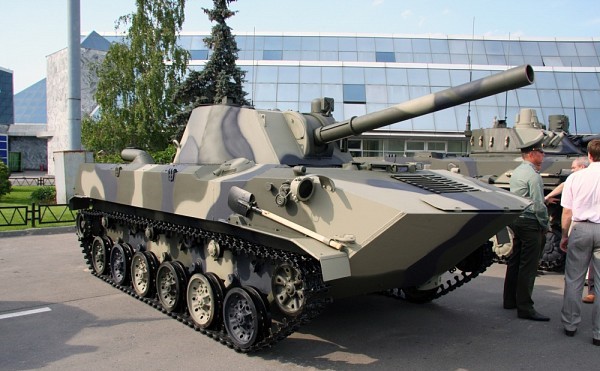

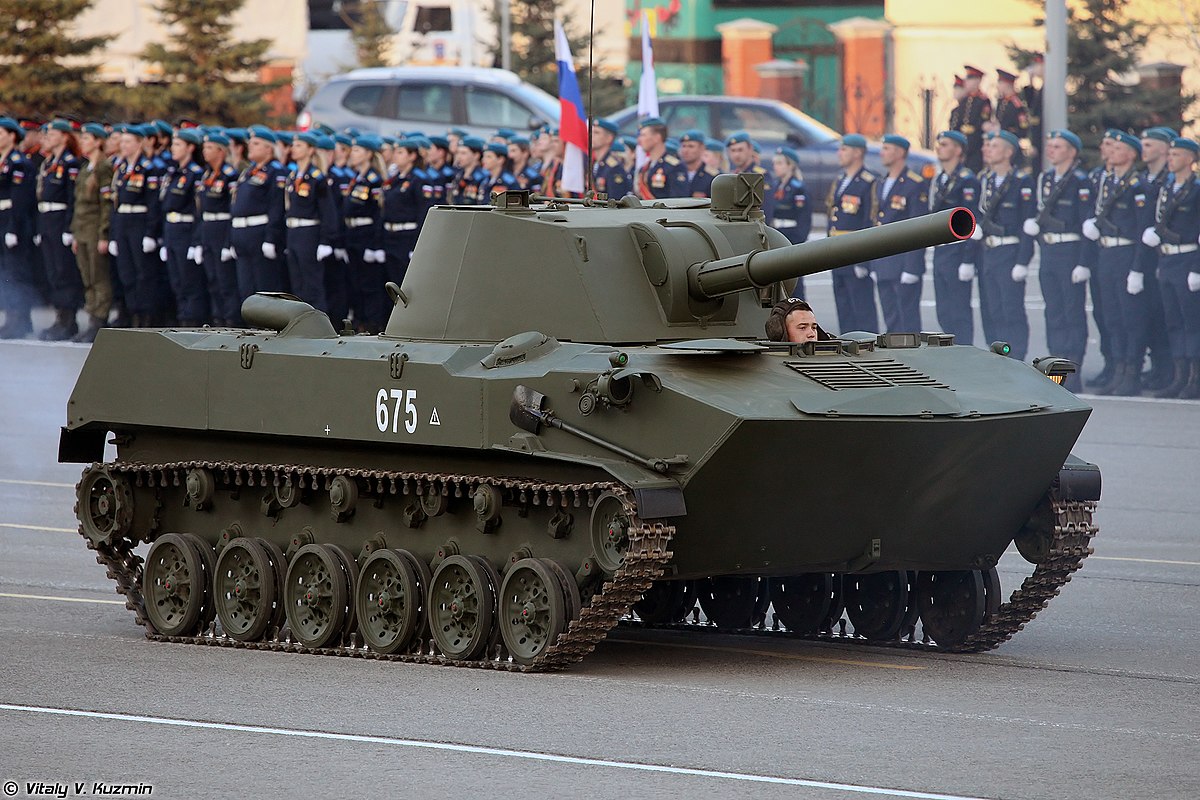

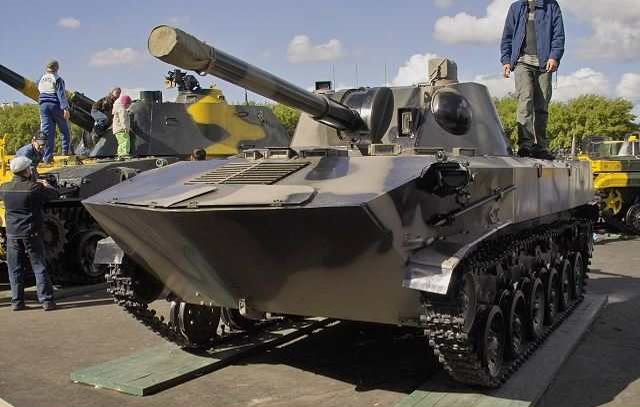

Description
2S9 Anona (SO-120) Russian 120mm Amphibious Self-Propelled Mortar (SPM) was developed in the 1970s to improve the mobility of mortars serving with the air assault divisions. Additionally, it provides direct fire and anti-tank capability. The 2S9 is the most numerous gun mortar vehicle in the world. The chassis of the BTR-D armored personnel carrier serves as the basis for the 2S9. In the middle of the vehicle a turret is placed that is fitted with gun mortar. The commander and driver are seated in the hull and the gunner and loader are in the turret. The 2A51 breech loaded 120mm smoothbore gun mortar is the main armament of the 2S9. The turret allows for a limited traverse left and right. The maximum effective range is 8.8 km and 13 km with assisted ammunition. The rate of fire is 6 to 8 rounds per minute. As a gun mortar, it is capable of direct fire and special HEAT ammunition is available for use against armored vehicles. There is no secondary armament.
Ground Specifications
Crew
4
Engine
Diesel (240 hp)
Variants
2S23 NONA-SVK
A BTR-80 based version is the 2S2.
NONA-K
Towed 2B16 version.
2S9-1
The 2S9-1 is an improved version of the SO-120, it is thought to be reconfigured so that the vehicle can sustain independent fire missions for longer.
SO-120 2S9 Anona
The 120 mm SO-120 2S9 Anona (Anemone) self-propelled gun/mortar (SPG/M) was first seen in public in May 1985 and is an airborne artillery assault vehicle that was developed to carry out two tactical functions.
2S9-1M
The 2S9-1M is an upgraded variant of the baseline SO-120 2S9 Anona-S. The upgraded vehicle is designed to maintain the battlefield viability of the original SO-120 until a replacement - likely to be the Lotus fire support vehicle based on the BMD-4M - can be developed and introduced into service.
System
Alternative Designation
2S9 Anona; SO-120 (Russian army designation).
Type
Self-Propelled Mortar
Caliber
120 mm
Crew
4 ea
Chassis
The chassis of the BTR-D armored personnel carrier serves as the basis for the 2S9. In the middle of the vehicle a turret is placed that is fitted with gun mortar. The commander and driver are seated in the hull and the gunner and loader in the turret.
Displacement Time
INA
Emplacement Time
INA
Airborne Capable
Yes
Dimensions
Length (Gun Forward)
6.02 m
Length (Hull)
5.89 m
Width
2.63 m
Height
2.3 m
Track Length
3.23 m
Track Width
250 mm
Weight, Combat
87,00 kg
Ground Pressure
INA
Ground Clearance
0.10 m (3.9 in) to 0.45 m (17.7 in)
Automotive
Engine Name
5D20
Engine Type
Diesel
Engine Power
240 hp
Cruising Range
500 km
Speed, Maximum Road
60 km/h
Speed, Average Cross
40 km/h
Speed Maximum Swim
10 km/h
Graident
60 %
Side Slope
30 %
Vertical Step
0.7 m
Trench
2.0 m
Fording Depth
Amphibious
Suspension
hydropneumatic, adjustable
Main Weapon System
System
Name
1x 2A60 120mm Gun/Mortar
Type
Gun/ Mortar
Caliber
120 mm
Breech Type
Combined semi-automatic breechblock with wedge locking mechanism and powder gases plastic obturator
Length, Barrel
24 caliber
Loader Type
Manual, with ramming being automatic
Max Rate of Fire
8-10 rds/min
Rate of Fire, Sustained
4 rds/min
Muzzle Brake Type
INA
Max Elevation
+80 deg
Min Elevation
-4 deg
Traverse Range
70 deg
Traverse Left
35 deg
Traverse Right
35 deg
Maximum Range of Fire (Ordinary Projectiles)
8.85 km
Maximum Range of Fire (Rocket Assisted Projectiles)
12.8 km
Maximum Range of Fire (Mines)
7.15 km
Note
2S9 Anona can fire German and French 120 mm mortar rounds
Ammunition (Option 1)
Type
OF-49 HE-FRAG/OF-51 HE-FRAG Projectile
Caliber
120 mm
Muzzle Velocity
367 m/s
Explosive
A-IX-2 explosive
Effective Range
8.85 km
Projectile Weight
17.3 kg
Basic Load
25 total, any combination of 120mm Projectiles
Ammunition (Option 2)
Type
OF-50 HEAT (Rocket Assisted) Projectile
Caliber
120 mm
Muzzle Velocity
560 m/s
Fuse Type
INA
Maximum Effective Range
12.8 km
Rocket Motor Start Time
10-13 seconds after the projectile leaves the barrel
Fin Stabilized
Yes
Pentration
650 mm
Basic Load
25 total, any combination of 120mm Projectiles
Ammunition (Option 3)
Type
OF-843B Mortar Bombs
Caliber
120 mm
Variants
OF-843B, OF-34 and OF-38 high-explosive fragmentation, S-843 and 3S9 illumination, 3Z2 incendiary and 3D5 smoke
Muzzle Velocity
119-331 m/s
Fuse Type
INA
Maximum Effective Range
8.8 km
Basic Load
25 total, any combination of 120mm Projectiles
Coaxial Weapon System
System
Name
1 x 7.62mm PKT (Kalashnikov's Machine Gun) General-Purpose Machine Gun
Caliber
7.62 mm
Manufacturer
Degtyaryov plant
In Service
1961-present
Function
In use as a front-line infantry and vehicle-mounted weapon with Russia's armed forces
Length (Overall)
1,203 mm
Length (Barrel)
605 mm
Weight (Gun Only)
9 kg
Weight (Tripod Only)
7.7 kg
Action
Gas-operated, open bolt
Max Rate of Fire
650 rds/min
Feed System
Non-disintegrating metal 50 round belts in 100 and 200/250 round ammunition boxes
Sights
Iron Sights
Note
The 7.62 PKT can be controlled remotely
Ammunition
Type
Rifle
Caliber
7.62 mm
Muzzle Velocity
825 m/s
Maximum Effective Range (With Sight Adjustments)
100-1,500 m
Basic Load
1,500 Rounds
Fire Control
Name
INA
Computerized FCS
Yes
Thermal Sight Vehicle Commander
Yes, with three day vision devices
Thermal Sight Gunner
Yes, with panoramic day sight
Main Gun Stabilization
INA
Indirect Fire
Yes
Direct Fire
INA
Land Navigation
Yes
Protection
Hull Armor
The hull is the same as the BMD-1. The 2S9 is operated under full armor protection. The aluminium armor protects against shell splinters and small arms fire.
Turret Armor
The turret is aluminum and the maximum thickness is 16 mm at the front.
Applique Armor
INA
Explosive Reactive Armor
No
Active Protection System
INA
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
PAZ NBC system
Smoke Equipment
INA
Fire-Extinguishing System.
PPO centralised ethylene-bromide fire-extinguishing system
Details
Country of Origin
Russia
Category
Self-Propelled Mortar System
Land > Infantry Vehicles > Self-Propelled Mortar System
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
2.63 m
Height
2.3 m
Weight
8700 kg
Operators (15)
Russia
China
Ukraine
North Korea
Belarus
Azerbaijan
Kazakhstan
Kyrgyzstan
Moldova
Syria
Turkmenistan
Uzbekistan
Venezuela
Vietnam
