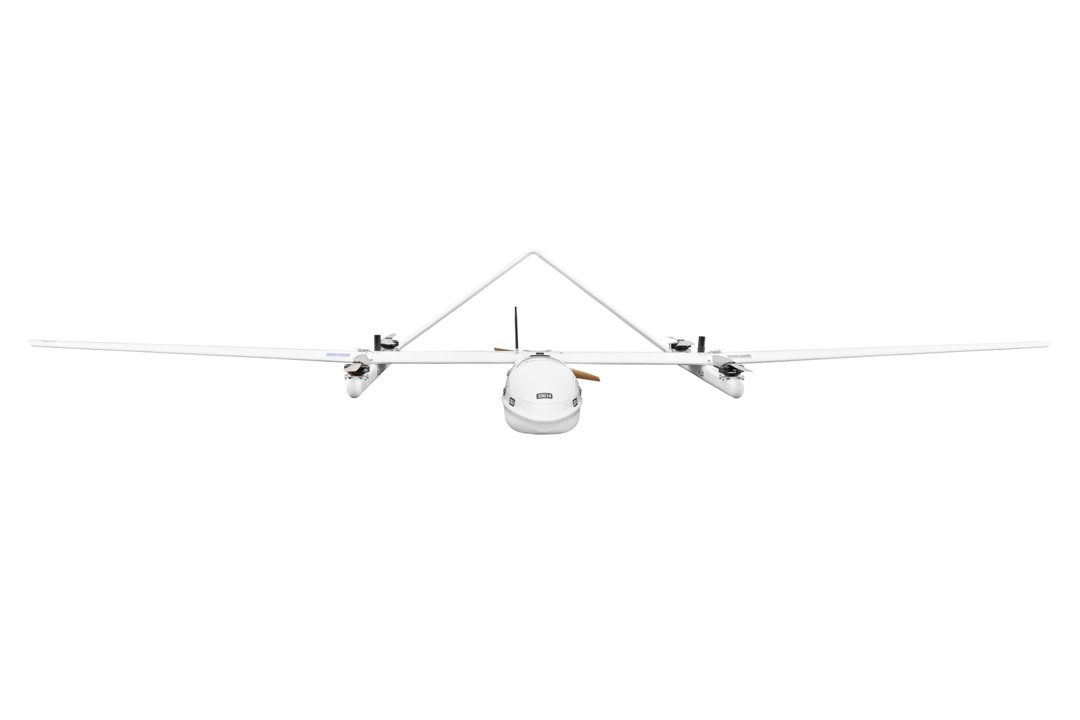

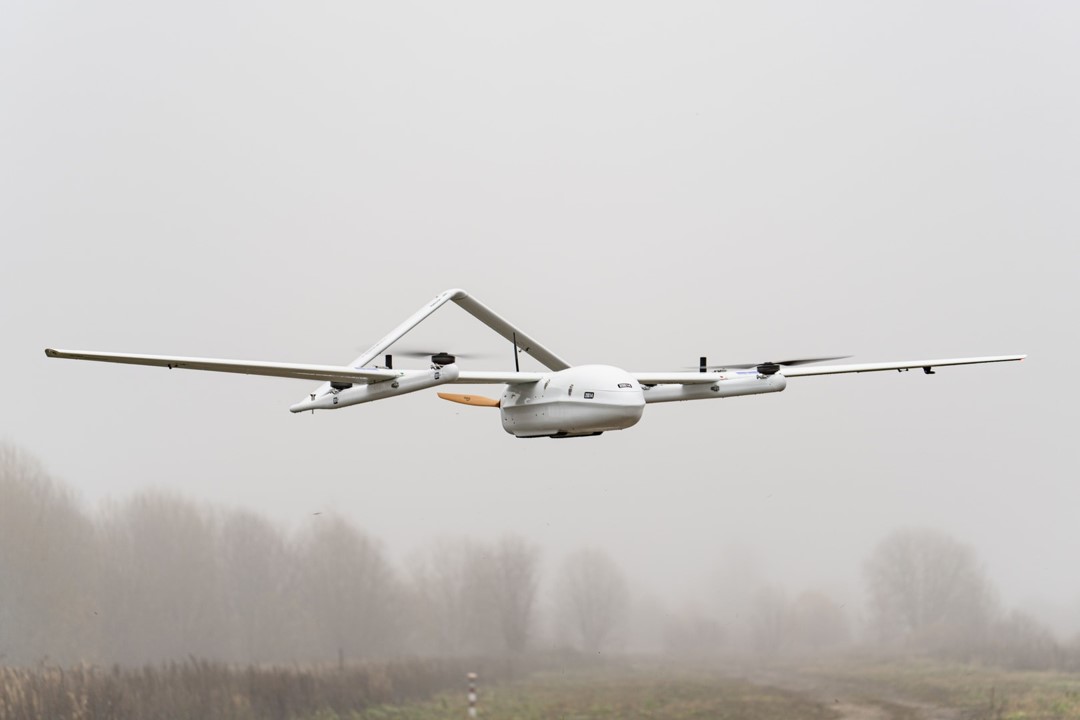

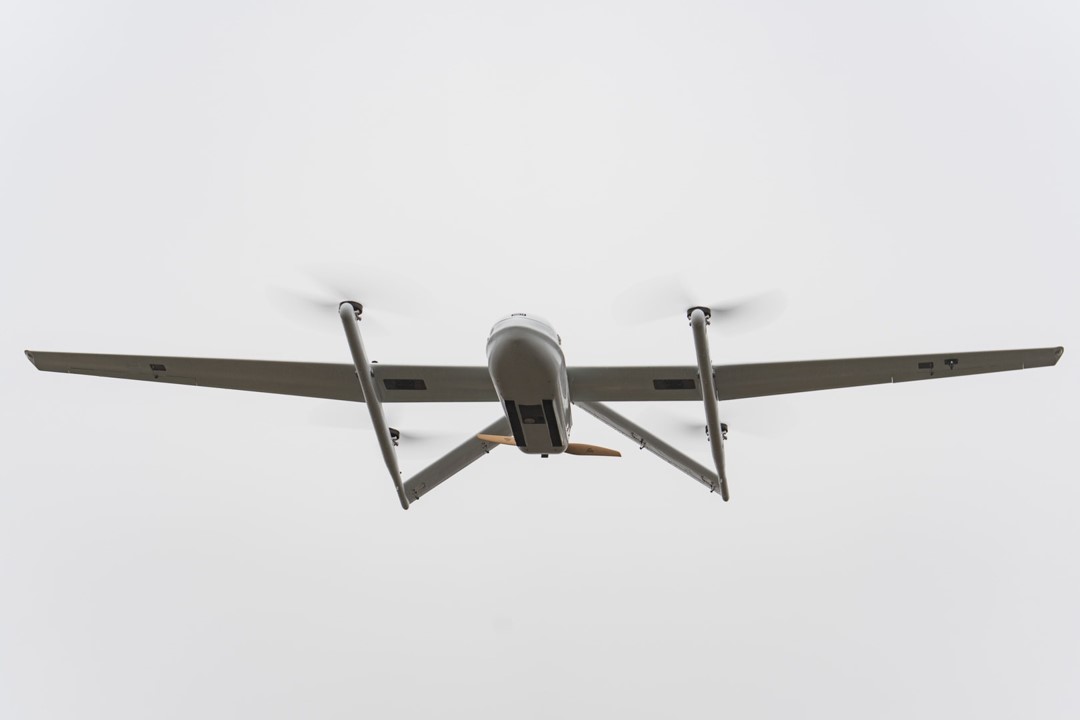

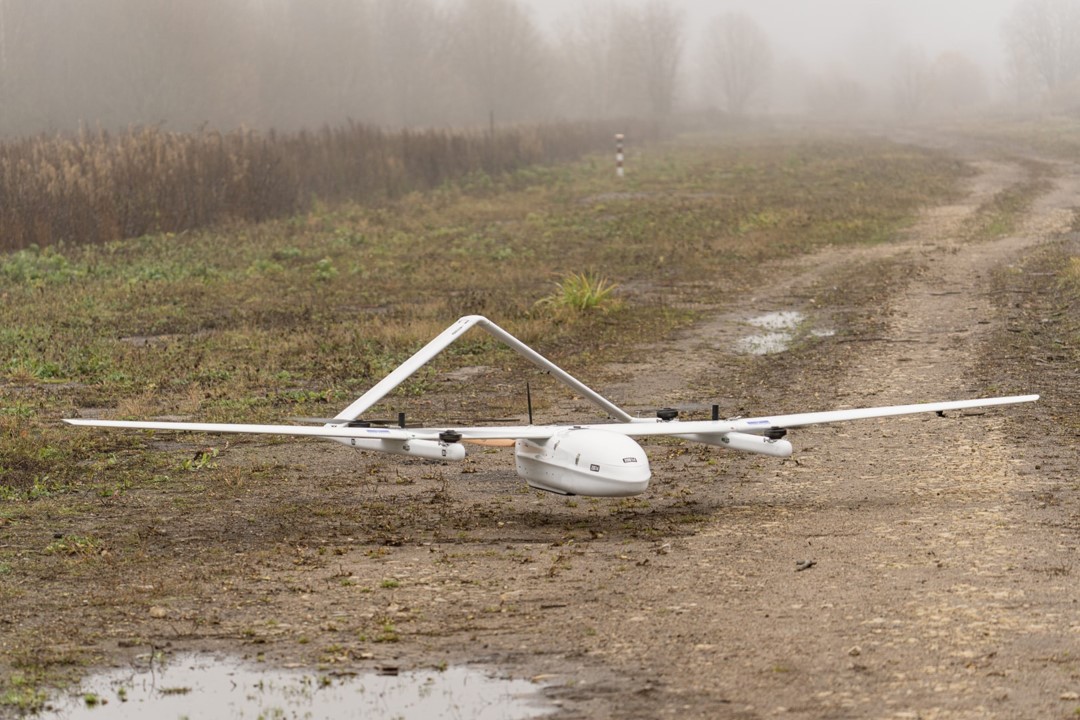

Legioner E29 Russian Unmanned Aerial Vehicle (UAV)

Legioner E29

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Legioner E29 Russian Unmanned Aerial Vehicle (UAV)
Designation
Legioner E29
Alternate Designation
Legioner E29
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Kalashnikov Concern
Date of Introduction
2024
Description

The Legioner E29 Russian Unmanned Aerial Vehicle (UAV) is designed for aerial photography, aerial laser scanning, video monitoring, cargo carriage, fire patrolling, people search, and ice reconnaissance. The UAV features two types of engines: an electric motor and an internal combustion engine. It can be supplied as a basic set or with additional payloads. The service life of the UAV operated according to the technical condition is 2800 flight hours, provided the maintenance (hereinafter - the M) is performed every 100 flight hours during a service life of 5 years in accordance with the UAV maintenance schedule (the cost of each product includes one M after 100 flight hours).

Air & Air Defense Specifications
Crew 2
Engine The UAV features two types of engines: an electric motor and an internal combustion engine.
Max Speed 120.0 km/h
Cruise Speed 85.0 km/h
Range 220.0 km
Endurance 5.50 hrs
Service Ceiling 3000 m
Wingspan 4010.00 m
Payload Capacity 3 kg
System
Alternate Designation Legioner E29
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Kalashnikov Concern JSC
Crew 2 ea
Payload Capacity 3.0 kg
Frequency Command telemetry 868 MHz, GSM standard frequencies
Take-off and Landing Vertical
Dimensions
Length 2,100 mm
Height 635 mm
Wingspan 4,010 mm
Maximum Takeoff Weight 29.95 kg
Automotive
Engine Name INA
Engine Type The UAV features two types of engines: an electric motor and an internal combustion engine.
Engine Power INA
Maximum Speed 120 km/h
Cruise Speed 85-90 km/h
Maximum Range 220 km
Service Ceiling 3,000 m
Endurance 5.5 hours
Wind Resistance 15 m/s
Details
Country of Origin Russia
Category UAVs
Air > UAVs
Filter Label
L
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.1 m
Width
4.01 m
Height
0.64 m
Weight
29.95 kg
Operators (1)
Russia
