Scarab Russian 4x4 Unmanned Ground Vehicle (UGV)
Scarab
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Scarab Russian 4x4 Unmanned Ground Vehicle (UGV)
Designation
Scarab
Alternate Designation
Scarab
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
SET-1
Date of Introduction
2015
Description
The Scarab Russian 4x4 Unmanned Ground Vehicle (UGV) is designed to enhance the situational awareness of military and security troops operating in challenging urban environments by the rapid collection of audio and video data. Due to its small size, the unit is ideal of use in hard-to-reach places such as tunnels, destroyed buildings, and blockages.
Ground Specifications
Engine
Battery
Max Speed
15.0 km/h
System
Alternative Designation
Scarab
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
SET-1
Mission
The Scarab Russian 4x4 Unmanned Ground Vehicle (UGV) is designed to enhance the situational awareness of military and security troops operating in challenging urban environments by the rapid collection of audio and video data. Due to its small size, the unit is ideal of use in hard-to-reach places such as tunnels, destroyed buildings, and blockages.
Configuration
4x4
Crew
Unmanned
Operator

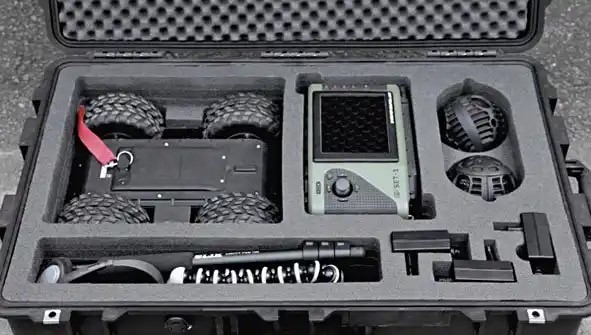

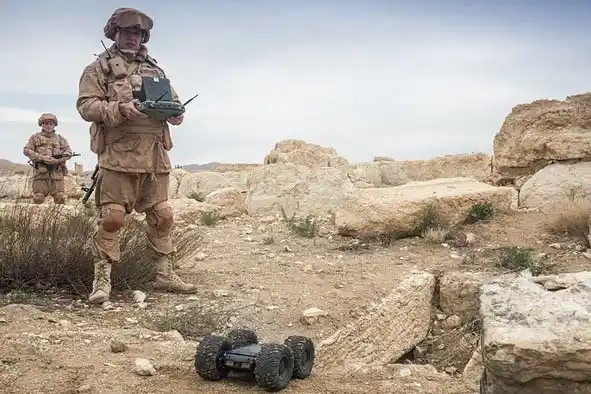

The platform is controlled by a double-axis joystick from the OCU. The Scarab transmits data by wireless to the video surveillance and operator control unit (OCU). The OCU of the Scarab has an integrated 7-in display and a number of frequency channels can be selected.
Sensors
The system is fitted with four high-resolution video cameras mounted in the forward, rear, and sides of the chassis, thermal imager (optional), built-in microphone for audio capture, and built-in audio-video transmitter.
Operating Temperature
–20 to +40°C
Frequency Range, Video Image
1,010–1,230 MHz
Frequency Range, Remote Control
917 MHz
Lighting

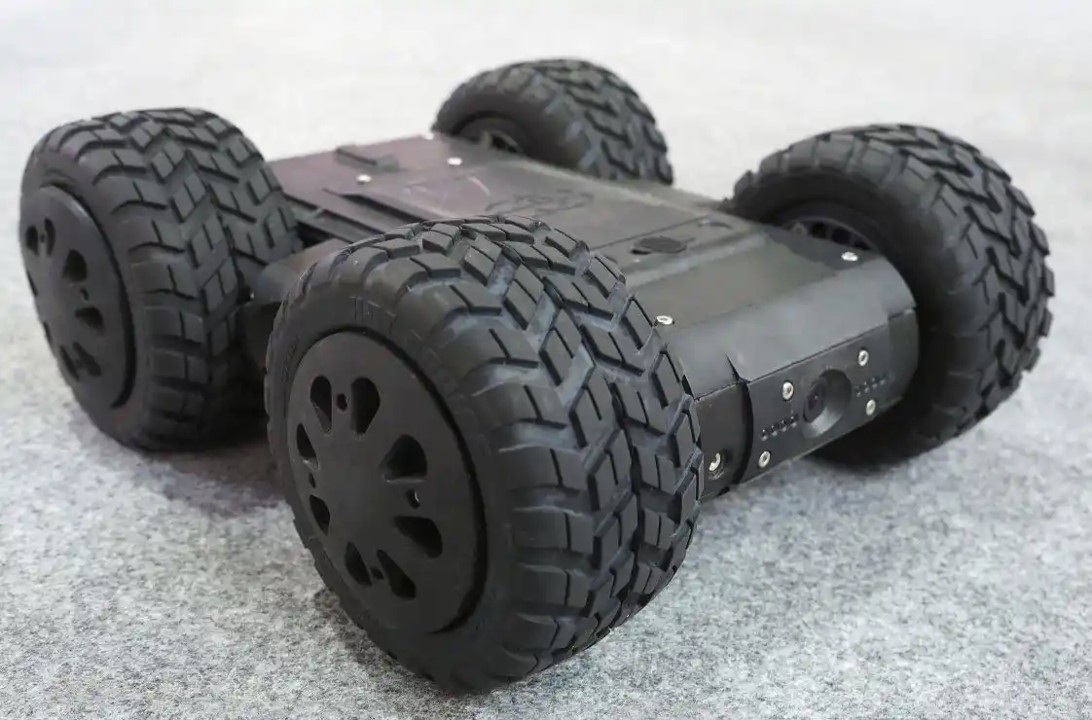

6 x white LED lights form a semi-circle around the camera at the front of the robot. These flash when in use. Two rectangular white LEDs are fitted either side of the camera in the middle. Two rectangular LED lights are situated at the rear.
Dimensions
Length
0.35 m
Width
0.35 m
Height
0.15 m
Weight, Combat
5.5 kg
Automotive
Engine Name
INA
Engine Type
High-capacity Li-ion rechargeable batteries
Engine Power
INA
Amphibious
No
Maximum Speed
15 km/h
Operating Range
300 m
Maximum Gradient Climb
30°
Curb Clearance
100 mm
Endurance
2 hours
Communications
Note
The Scarab also employs the company's proprietary CORDON series receiver and transmitter units, which utilize coded orthogonal frequency division multiplexing-techniques (COFDM-modulation) and 32-bit encryption for reliable control and data streaming over a range of at least 300 m.
Protection
Armor
INA
Applique Armor
INA
Details
Country of Origin
Russia
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.35 m
Width
0.35 m
Height
0.15 m
Weight
5.5 kg
Operators (1)
Russia
