ARK-1M RYS Russian Artillery Locating Radar
1RL-239, Lynx
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
ARK-1M RYS Russian Artillery Locating Radar
Designation
1RL-239, Lynx
Alternate Designation
1RL-239, Lynx
Equipment Type
—
Manufacturer
—
Date of Introduction
1986
Description

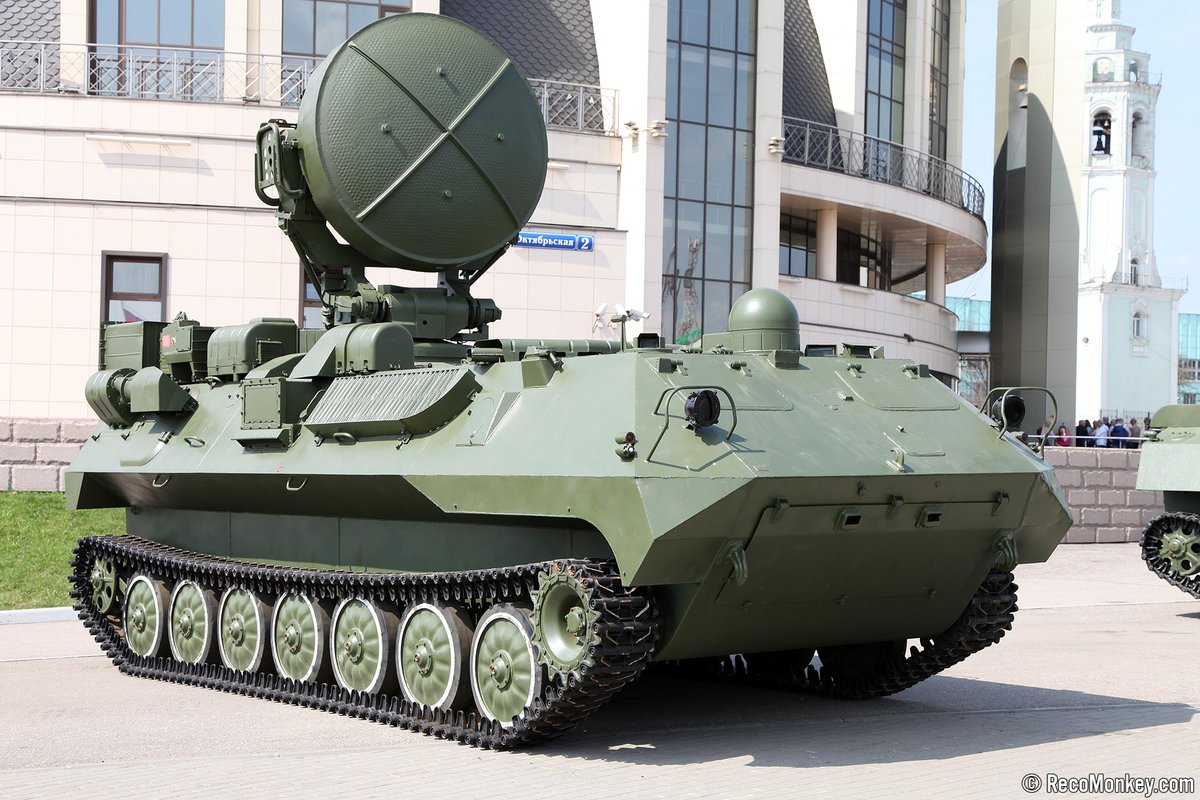

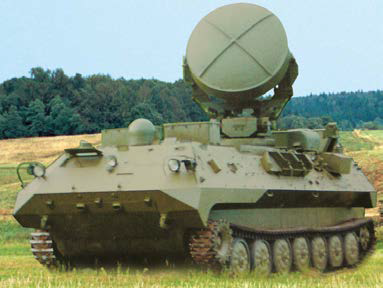

MT-LBu based ARK-1M is a tracked vehicle mounted H-band artillery locating radar. Usually found in the division's reconnaissance battery. Designed to flash range firing mortars, field artillery pieces, MRL systems and tactical missiles. It also provides fire-control for counter fire.
Ground Specifications
Crew
4
Mobility Type
Tracked
Engine
V-8 diesel (300 hp)
NBC Protection
Yes
Max Speed
61.0 km/h
Range
500.0 km
Variants
ARK-1
Baseline Model
System
Alternative Designation
1RL-239, Lynx
Crew
4 ea
Chassis
MT-LBu
Emplacement Time
5 min
Displacement Time
5 min
Dimensions
Height, Overall
2.72 m
Length, Chassis Overall
7.61 m
Width, Overall
2.85 m
Weight
15.7 mT
Automotive
Engine Name
YaMZ-238N
Engine Power
300 hp
Engine Type
V-8 diesel
Range, Cruising
500 km
Speed, Maximum Road
61 km/h
Speed, Cross Country
30 km/h
Speed, Maximum Swim
6 km/h
Fording Depth
INA
Amphibious
May not be amphibious based on the weight of the radar system.
Radar
Antenna Type
3-D, 5 cm wavelength, monopulse radar
Detection Range (Mortar)
13 km
Detection Range (Artillery)
8 km
Detection Range (Rocket)
25 km
Detection Range (Missile)
30 km
Frequency Band
NATO H Band (6 - 8 Ghz)
Receiver (Noise Figure)
8.0 dB
Max Number of Targets
3 tracks / minute
Protection
Armor, Hull
15 mm
Armor, Turret Front
20 mm
NBC Protection
Yes
Smoke Equipment
No
Details
Country of Origin
Russia
Category
Radars
Land > Radars
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
2.85 m
Height
2.72 m
Weight
15700 kg
Operators (5)
Russia
Slovakia
Turkmenistan
Uzbekistan
CFE Treaty
