AR4 Portuguese Unmanned Aerial Vehicle (UAV)

AR4

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
AR4 Portuguese Unmanned Aerial Vehicle (UAV)
Designation
AR4
Alternate Designation
AR4
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Tekever
Date of Introduction
2012
Description

The AR4 Portuguese Unmanned Aerial Vehicle (UAV) is a lightweight Unmanned Aircraft System (UAS) designed for rapid mobile deployment. This tactical platform is suitable for both military and commercial applications. It is easy to assemble, providing a robust organic ISR (Intelligence, Surveillance, and Reconnaissance) capability. The system is simple to operate, field-tested, and battle-proven, making it an ideal choice for various operational requirements. Key Features: - Lowest total cost of ownership - ITAR-free (International Traffic in Arms Regulations) - Proven flexibility - 2-minute assembly time - Suitable for ISTAR (Intelligence, Surveillance, Target Acquisition, and Reconnaissance) missions - Effective for anti-terrorism surveillance - Environmental protection tasks - Infrastructure monitoring The AR4 is designed for mobility, prioritizing ease of use, transportability, maintainability, and payload flexibility. It has been validated and battle-tested by multiple security and military forces. Additional capabilities include: - Real-time precision imagery with high-resolution images and video - Advanced intelligent detection, identification, and tracking capabilities - Easy interchange of parts between different systems - A focus on system autonomy, flexibility, and the capacity to evolve The AR4 can go anywhere, making it a versatile solution for modern operational needs.

Air & Air Defense Specifications
Engine Battery
Cruise Speed 54.0 km/h
Range 20.0 km
Endurance 2.00 hrs
Wingspan 1.35 m
Payload Capacity 1 kg
System
Alternative Designation AR4
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Tekever
Payload Capacity 1.0 kg
Communication Range 20 km

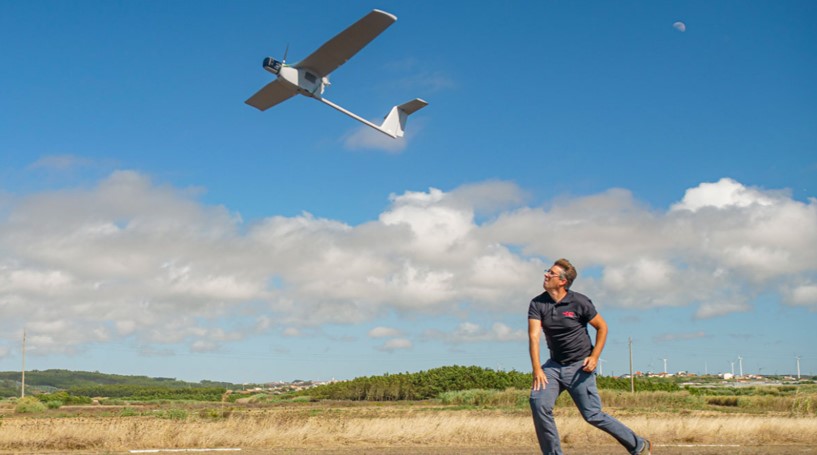

Launch Hand Launched

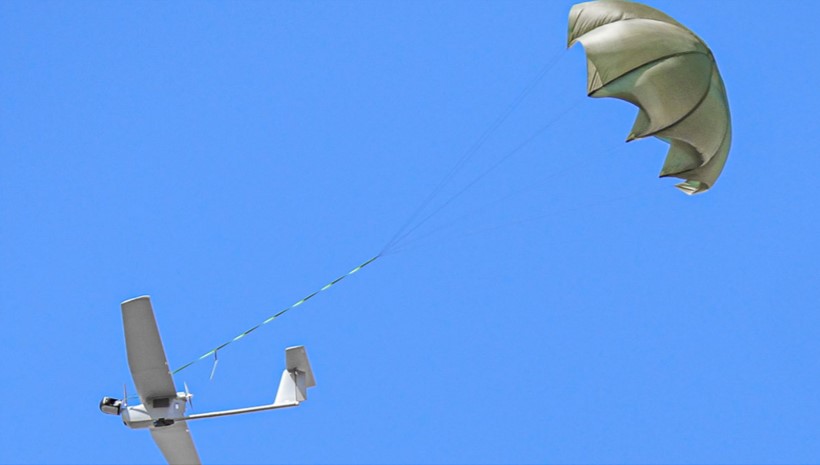

Recovery Parachute or Belly
Dimensions
Length 2.1 m
Height INA
Wingspan 1.35 m
Maximum Takeoff Weight 5.0 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed INA
Cruise Speed 54 km/h
Maximum Range 20 km
Endurance 2 hours
Details
Country of Origin Portugal
Category UAVs
Air > UAVs
Filter Label
A
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.1 m
Width
1.35 m
Height
Weight
5 kg
Operators (2)
United Kingdom
Portugal
