Delilah

Delilah

Cruise Missiles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Delilah
Designation
Delilah
Alternate Designation
—
Equipment Type
Cruise Missiles
Manufacturer
IMI Israel Military Industries
Date of Introduction
2008
Description

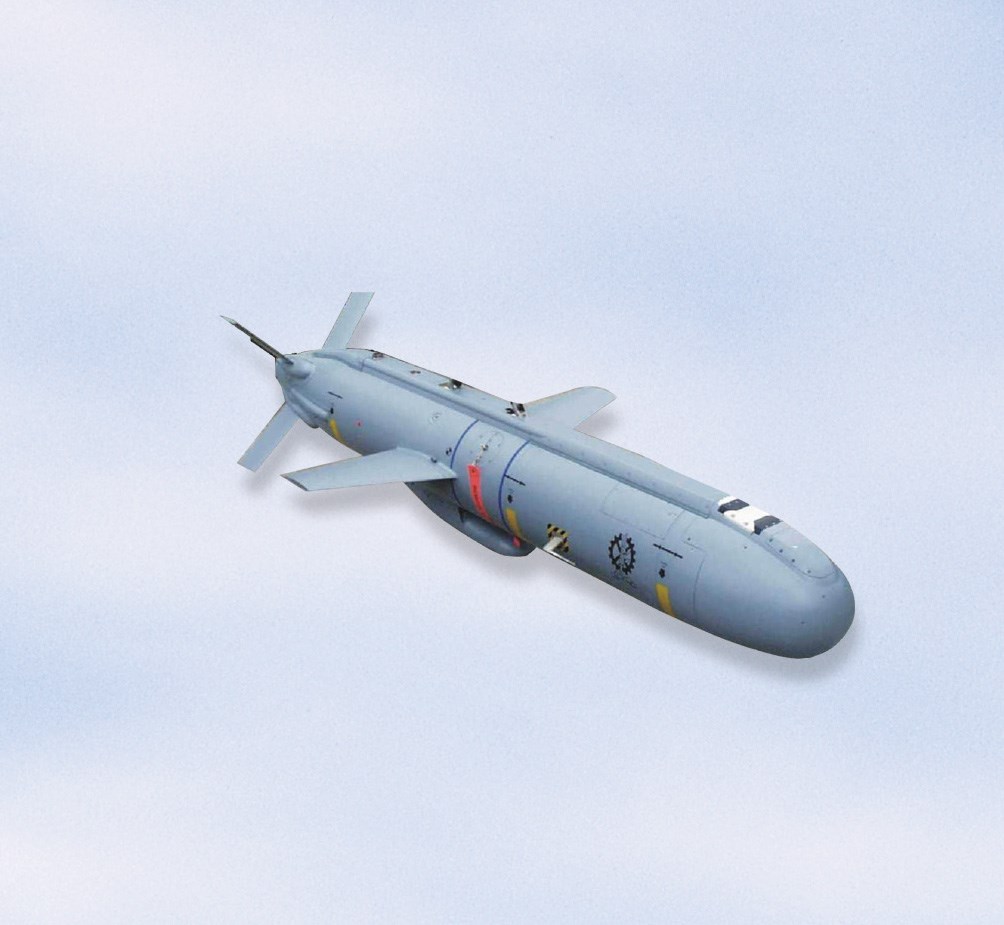

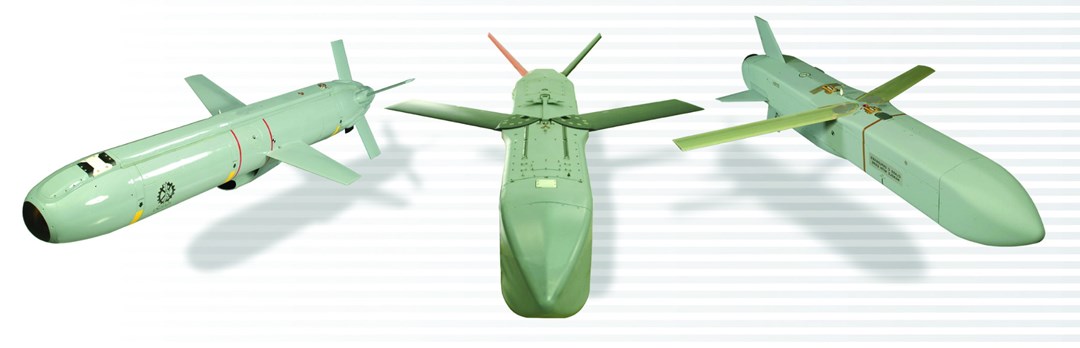

The Delilah is an air-launched, long-range, day/night, electro-optical missile designed to engage time critical moving and re-locatable targets on land or sea with minimum collateral damage. The spectrum of targets for Delilah missile includes air defense systems, surface ships and surface-to-surface missile systems such as tactical ballistic missile launchers. IMI developed the Delilah for integration on the Israeli Air Force (IAF) F-16 and F-15E strike aircraft. Besides, its modular and lightweight design allows for integration of a variety of warheads to match multiple combat scenarios and mission requirements. The basic Delilah missile is powered by a turbojet engine allowing for a 250 km maximum range and loitering capability. It can be launched from either ground-based platforms, surface ships or helicopters using a rocket booster. The advanced navigation system combines the GPS satellite positioning and Inertial Navigation System (INS) to provide a near autonomous mode of operation which only requires a man in the loop for target validation. A built-in data link allows the weapon system operator intervention and target validation.

Air & Air Defense Specifications
Max Speed 1049.6 km/h
Range 250.0 km
Wingspan 1.20 m
Overview (Deagel)
Group Cruise Missiles
Status Active
Origin Israel
Contractor IMI Israel Military Industries
Initial Operational Capability (IOC) 2008
Total Production ?
Specifications (Deagel)
Dimensions — Length 2.7 meter
Dimensions — Width 330 millimeter
Dimensions — Wingspan 1.2 meter
Mass — Warhead 30 kilogram
Mass — Weight 187 kilogram
Performance — CEP 1 meter
Performance — Max Cruising Flight Altitude 8,500 meter
Performance — Max Range 250 kilometer
Speed — Cruise Speed 0.70 mach
Speed — Top Speed 0.85 mach
Variants
Variant 1 Delilah
Variant 2 Delilah-GL
Details
Country of Origin Israel
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.7 m
Width
0.33 m
Height
—
Weight
187 kg
Related Equipment (1)
Operators (1)
Israel
