Aotearoa Class New Zealand Logistics Support Ship
Aotearoa Class
Logistics Support Ship
Other
Basic Information
Name
Aotearoa Class New Zealand Logistics Support Ship
Designation
Aotearoa Class
Alternate Designation
Aotearoa Class; HMNZS Aotearoa ( formerly the Maritime Sustainment Capability project)
Equipment Type
Logistics Support Ship
Manufacturer
—
Date of Introduction
2020
Description

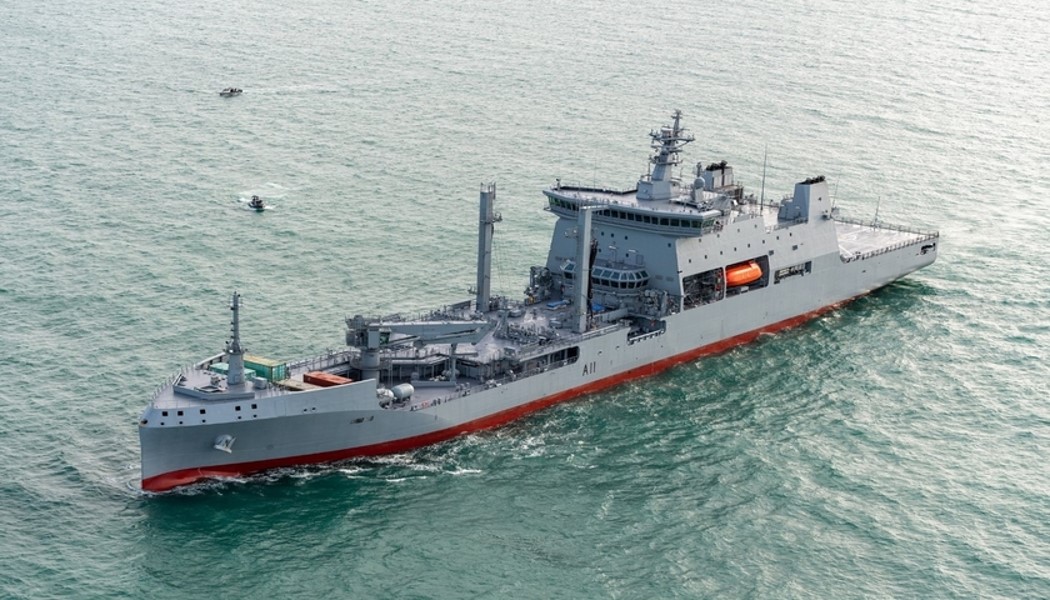

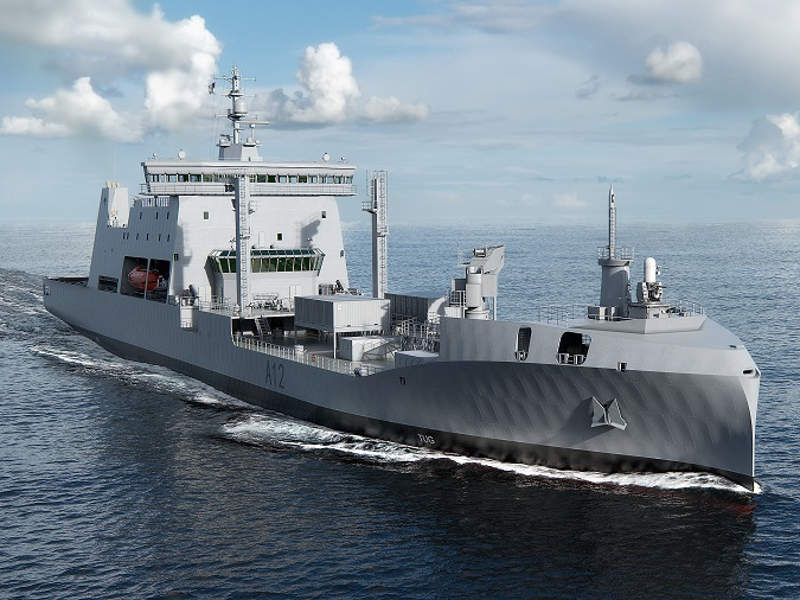

HMNZS Aotearoa is a new Polar-class logistics support vessel being built by Hyundai Heavy Industries (HHI) for the Royal New Zealand Navy (RNZN), as part of the Maritime Sustainment Capability (MSC) project. HMNZS Aotearoa, formerly the Maritime Sustainment Capability project, is an auxiliary ship of the Royal New Zealand Navy. Builder Hyundai Heavy Industries delivered the ship to the Navy in June 2020, and she was commissioned into service on 29 July 2020. Full operational capability is expected to be achieved in 2021. It will serve as a replenishment oiler and will replace HMNZS Endeavour, the Navy’s last fleet oiler, decommissioned in December 2017. Aotearoa is the largest ship the Royal New Zealand Navy has operated.
Naval & Littoral Specifications
Crew
98
Beam
24.50 m
Draft
8.50 m
Variants
HMNZS Aotearoa
Commissioned: 2020
Status: Active
System
Alternative Designation
Aotearoa Class; HMNZS Aotearoa ( formerly the Maritime Sustainment Capability project)
Type
Logistics Support Ship
Builder
Hyundai Heavy Industries
Crew
98 total (64 x vessel crew + 11 x flight + 14 x trainees)
Cargo Capacity, Dry Goods
HMNZS Aotearoa will offer enough deck space to accommodate up to 12 containers, including four containers dedicated to storing bulk ammunition.
Cargo Capacity, Liquid Cargo
The liquid cargo storage tanks will enable the carriage of 8,000t of diesel fuel and 1,500t of aviation fuel.
Crane
1 x 24 ton Crane located at the center of the vessel. The Crane has a maximum reach of 23 meters.
Refueling Capability
HMNZS Aotearoa is capable of refuelling two vessels at a time on the move, while the onboard electric replenishment / fuelling-at-sea systems will ensure easy and silent operation.
Medical Facility
Two-berth ward and treatment room.
Dimensions
Length
173.2 m
Beam
24.5 m
Draft
8.5 m
Displacement, Standard
INA
Displacement, Full Load
26,000 tons
Propulsion System
Engine Name
2 x Bergen main engines
Engine Type
Diesel
Engine Power
INA
Generator
4 x MTU generators
Maximum Range
6,400 nmi (11,900 km)
Maximum Speed
16 knots (30 km/h)
Communications
Communications Suite
1 x Saab TactiCall integrated communications system.
Gun Weapon Systems
Gun Weapon System #1
Name
1 × Phalanx CIWS
Type
Close-In Weapon System (CIWS)
Caliber
20 mm
Crew
Automated, with human oversight
Barrel Length
1,520 mm
Height
4.7 m
Operation
The CIWS is designed to be the last line of defense against antiship missiles. Due to its design criteria, its effective range is very short relative to the range of modern ASMs, from 1 to 5 nautical miles (2 to 9 km). The gun mount moves at a very high speed and with great precision. The system takes minimal inputs from the ship, making it capable of functioning despite potential damage to the ship. The only inputs required for operation are 440 V AC three-phase electric power at 60 Hz and water (for electronics cooling). For full operation, including some nonessential functions, it also has inputs for ship's true compass heading and 115 V AC for the PASS subsystem.
Barrels
6 ea
Guidance System
Ku-band radar and FLIR
Elevation
−20°/+80°
Traverse
150° from either side of centerline
Rate of Fire
4,500 rounds/minute
Muzzle Velocity
1,100 m/s
Maximum Firing Range
5,500 m
Effective Firing Range
1,486 m
Gun Weapon Systems #1 Ammunition
Type
Rifle
Caliber
20 mm
Shell
Naval: Armor-piercing tungsten penetrator rounds with discarding sabots; Land: High-Explosive Incendiary tracer, self-destruct.
Basic Load
INA
Gun Weapon System #2
Name
2 × Mini Typhoon Naval Stabilized and Remotely Operated Machine Gun System
Weapon Station Type
Naval Stabilized and Remotely Operated Machine Gun System
Machine Gun Type
It can be fitted with a 12.7 mm (.50) machine gun, a 7.62 mm machine gun, or a 40 mm grenade launcher
Caliber
7.62mm/12.7mm/40mm
Length
INA
Weight
140-170 kg (depending on configuration)
On Mount EO System
CCD/FLIR/LRF
Elevation
360 deg
Traverse
-20 deg to +60 deg
Stabilized Accuracy
0.5 mrad
Ballistic Computer
Yes
Gun Weapon Systems #2 Ammunition
Type
Rifle/Grenade
Caliber
7.62mm/12.7mm/40mm
Cartridge
INA
Basic Load
On-mount Ammunition: up to 230 rounds (depending on caliber).
Boats and Landing Craft
Rigid-Hulled Inflatable Boat (RHIB)
Carries 2 x Rigid-Hulled Inflatable Boats (RHIBs).
Aviation Facilities
Facilities
1 x Hanger for SH-2G, NH90, or A109LUH.
Aircraft
1 x helicopter SH-2G, NH90, or A109LUH.
Radar Systems
Navigation Radar
1 x Sharpeye S and 1 x Sharpeye S X band navigation radars.
Phalanx CIWS Radar
The CIWS has two antennas that work together to engage targets. The first antenna, for searching, is located inside the radome on the weapon control group (top of the white-painted portion). The search subsystem provides bearing, range, velocity, heading, and altitude information of potential targets to the CIWS computer. This information is analyzed to determine whether the detected object should be engaged by the CIWS system. Once the computer identifies a valid target (see details below), the mount moves to face the target and then hands the target over to the tracking antenna. The track antenna is extremely precise, but views a much smaller area. The tracking subsystem observes the target until the computer determines that the probability of a successful hit is maximized and then, depending on the operator conditions, the system either fires automatically or recommends fire to the operator. While firing, the system tracks outgoing rounds and 'walks' them onto the target.
Sonar System
Sonar
1 x Farsounder-1000 sonar.
Protection
Hull Armor

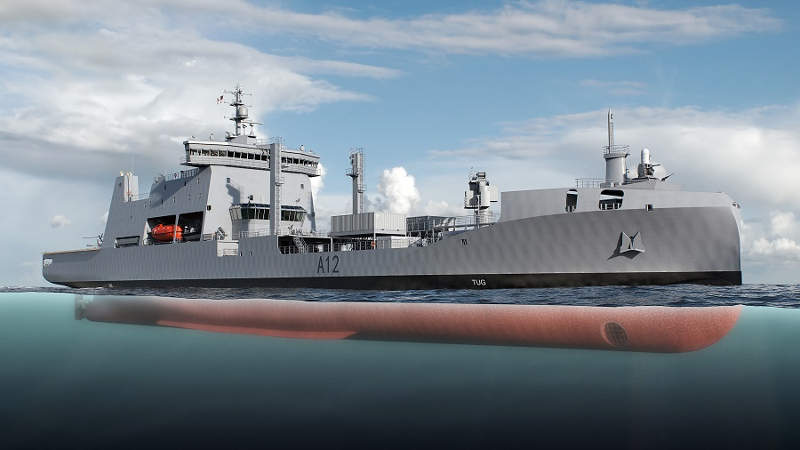

HMNZS Aotearoa will be the world’s first naval ship to adopt Rolls-Royce’s Environship concept design, which includes a new wave-piercing hull for reduced resistance and fuel consumption.
The vessel’s modified Environship hull will be ice-strengthened and winterised to facilitate operations in Antarctica’s extreme weather conditions.
Countermeasures
INA
NBC Water Washdown System
Yes
Details
Country of Origin
New Zealand
Category
Support Ships
Naval > Support Ships
Filter Label
A
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
173.2 m
Width
—
Height
—
Weight
—
Operators (1)
New Zealand
