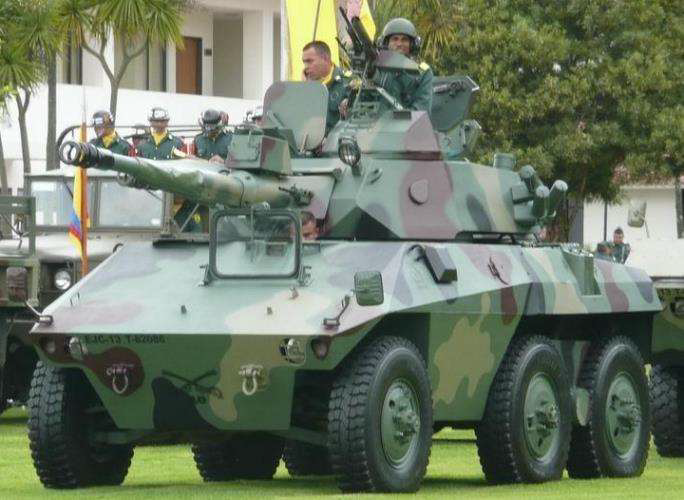

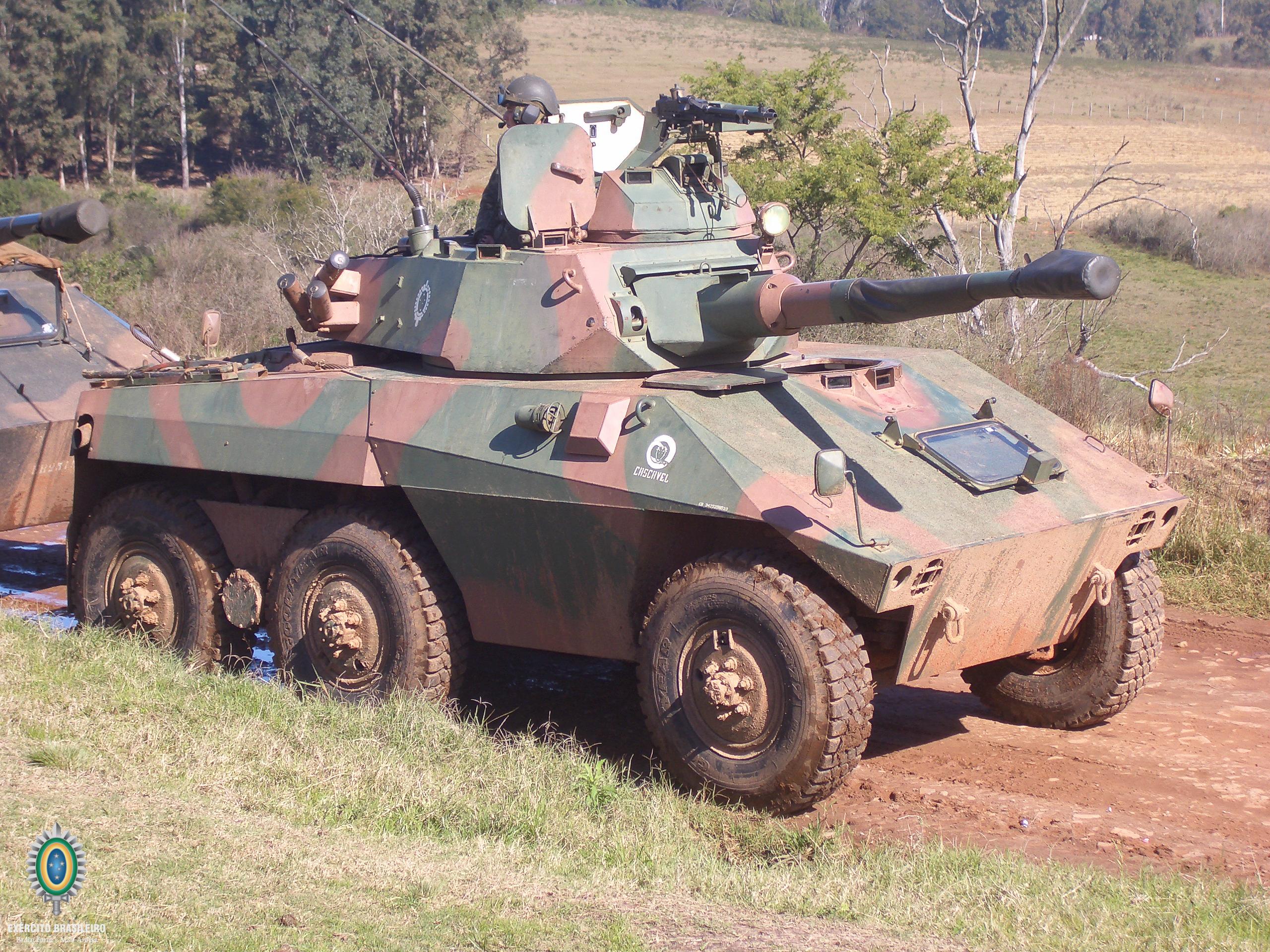

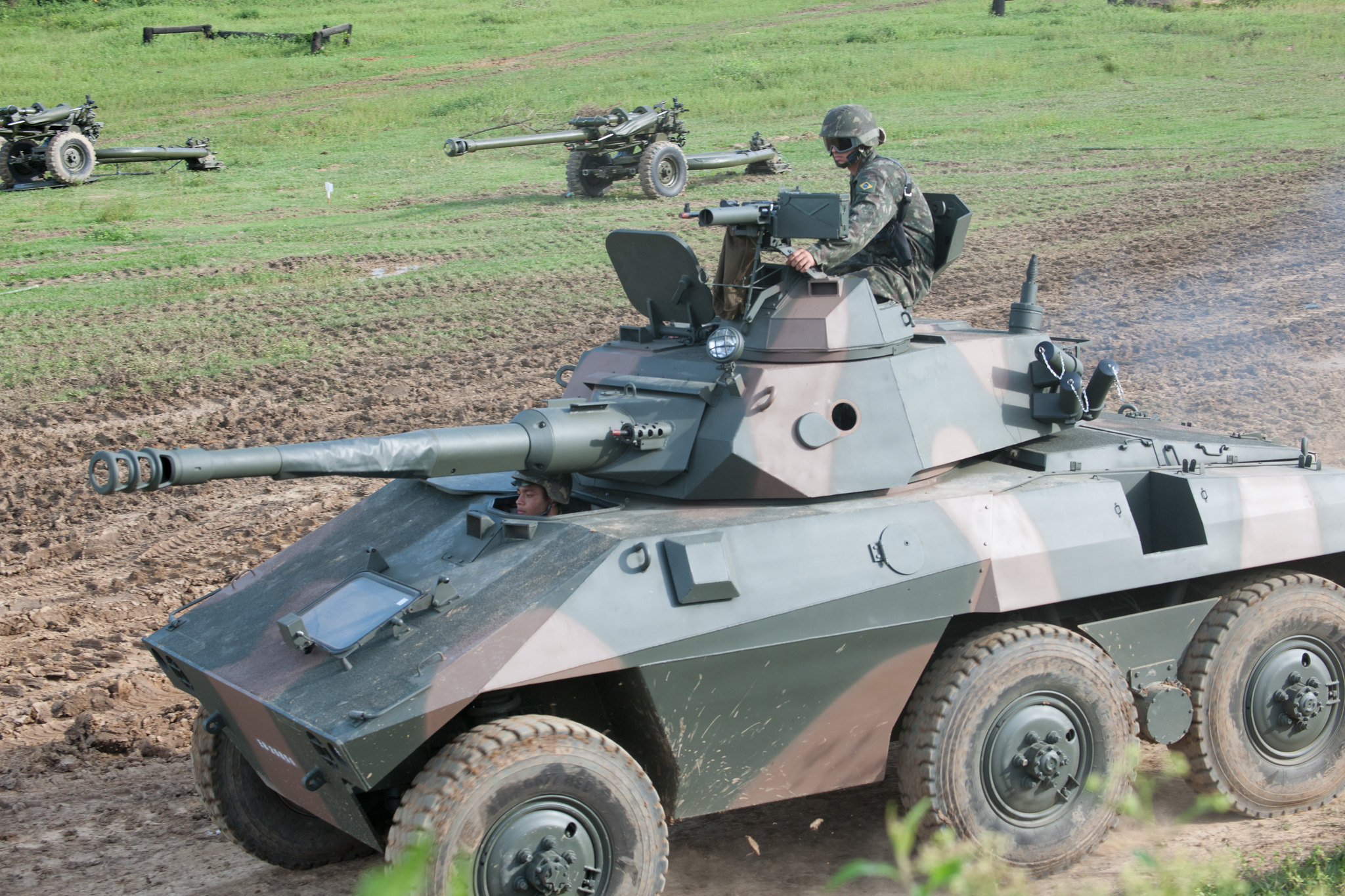

EE-9 Cascavel Mark 4 Brazilian 6x6 Armored Reconnaissance Vehicle
EE-9
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
EE-9 Cascavel Mark 4 Brazilian 6x6 Armored Reconnaissance Vehicle
Designation
EE-9
Alternate Designation
—
Equipment Type
—
Manufacturer
Engesa
Date of Introduction
1975
Description
The EE-9 Cascavel (Portuguese pronunciation: [kɐʃ.kɐ.ˈvɛɫ], translated to Rattlesnake) is a six-wheeled Brazilian armoured car developed primarily for reconnaissance. It was engineered by Engesa in 1970 as a replacement for Brazil's ageing fleet of M8 Greyhounds. The vehicle was first fitted with the Greyhound's 37mm main gun, and subsequently, a French turret adopted from the Panhard AML-90. Later models carry unique Engesa turrets with a Belgian 90mm Cockerill Mk.3 cannon produced under licence as the EC-90. The Cascavel shares many components with the EE-11 Urutu, its armoured personnel carrier counterpart; both entered production in 1974 and are now operated by over 20 nations in South America, Africa, and the Middle East. Rights to the design were also sold to the United States via the FMC Corporation. About 2,767 Cascavels and Urutus were manufactured before Engesa ceased operations in 1993.
Ground Specifications
Crew
3
Engine
Diesel (212 hp)
Range
880.0 km
Variants
Mark 2/Cascavel I/Cascavel Magro (Thin Rattlesnake)
1st model with 37-mm gun removed from obsolete M3 Stuart tanks with Mercedes diesel engine.
Mark 3/Cascavel II/Cascavel Gordo (Fat Rattlesnake)
1st export model with Mercedes diesel engine, turret ring widen for Giat 90-mm gun, & 2 smoke dischargers.
Mark 4/Cascavel III
Engesa EC-90 90-mm gun, 7.62-mm coaxial MG, anti-aircraft MG (12.7-mm or 7.62-mm) on commanders cupola, & a Detroit diesel engine.
Mark 5/Cascavel IV
Mark 4 with central tire pressure regulation system, Mercedes OM352 diesel engine & disk brakes.
Mark 6
Mark 5 with a Mercedes OM352A engine.
System
Alternative Designations
EE-9 Cascavel Mark 4
Description
6 X 6 ARV developed in conjunction with the EE-11 Urutu APC as both share many of the same components; vehicle is for recon & route protection as no dismounted soldiers are available.
Manufacturer
Engesa
In Service
1975-Present
Crew
3 (driver, commander, gunner)
Dimensions
Length, Hull
5.20 m
Length, Gun Foward
6.20 m
Width Overall
2.64 m
Height, Commander's Cupola
2.68 m
Height, Turret Roof
2.28 m
Height, Hull Top
1.75 m
Combat Weight
13.4 tons
Ground pressure
INA
Ground Clearance, Rear Axle
0.34
Ground Clearance, Hull Center
0.50
Track
2.10
Wheelbase
2.34 m + 1.41 m
Automotive
Engine Name
Detroit Diesel 6V-53N Diesel
Engine Type
Diesel
Engine Power
212 hp
Power-to-Weight Ratio
15.8 hp/metric ton
Maximum Road Speed
100 km/h
Maximum Range
880 km
Gradient
60 %
Side Slope
30 %
Vertical Step
0.6 m
Trench
1 m
Fording
1 m
Fuel
390 liters
Front Suspension
independent with coil springs and double-action shock absorbers
Rear Suspension
"boomerang" walking beam suspension with semi-elliptic springs and double-action shock absorbers
Communications
Primary
INA, dependent on country using the vehicle.
Main Weapon System
System
Name
90mm Engesa EC-90
Type
Anti-Aircraft Machine Gun
Turret Type
Engesa ET-90 turret
Caliber/length
12.7mm (.50 caliber)
Maximum Effective Range
1500 m (Against High Hard Armor-HHA)
Armor Penetration
SLAP (Saboted Light Armor Penetrator); 34 mm HHA at 500 m
Muzzle Velocity
M33 Ball: 890
SLAPT (Tracer): 1215
Maximum Elevation
+15 deg
Minimum Elevation
-8 deg
Traverse Range
360 deg
Traverse Left
180 deg
Traverse Right
180 deg
Ammo Type
800 Rounds:
Ball, Tracer, AP, API, API-T, AP Hardcore, Multipurpose, SLAP, SLAPT
Ammunition
Name
INA
Type
Rifled Gun
Caliber/length
12.7 mm
Maximum Effective Range (Day)
APDS: 1200 m (Est)
HE: 2000 m (Est)
Armor Penetration
INA
Muzzle Velocity
APDS: 1250 (Est)
HE: 1050 (Est)
Basic Load
44 Rounds (12 in turret & remainder in
the hull):
APDS, HE Frag,
Auxiliary Weapon System
System
Name
M2 HB Anti-Aircraft Machine Gun
Type
12.7 mm
In Service
1933-Present
Manufacturer
Current: General Dynamics, Fabrique Nationale
Proliferation
Over 3 Million
Action
Short recoil-operated
Max Rate of Fire (M2HB Version)
450-600 rds/min
Max Rate of Fire (AN/M2 Version)
750-850 rds/min
Max Rate of Fire (AN/M3 Version)
1,200-1,300 rds/min
Length, Total
1,654 mm
Length, Barrel
1,143 mm
Weight, Gun Only
38 kg
Weight, Gun and Tripod
58 kg
Ammunition
Name
INA
Type
Rifle
Caliber
12.7 mm
Cartridge
0.50 BMG (12.7×99mm NATO)
Muzzle Velocity
450-1,300 m/s
Effective Range
1,800-2,000 m
Basic Load
2,000 ea
Fire Control
Name
INA
Computerized FCS
INA
Rangfinder
Optional laser rangefinder mounted over main gun or integrated with gunner's sight
Protection
Armor (turret front)
16 mm
Applique Armor
No
Explosive Reactive Armor
No
Active Protection System
INA
Self-entrenching Blade
No
NBC Protection System
Available
Smoke Equipment
Available (up to 3 smoke dischargers on either side for a total of 6)
Survivability Equipment
Welded multi-layer armor
Details
Country of Origin
Brazil
Category
Reconnaissance Vehicles
Land > Infantry Vehicles > Reconnaissance Vehicles
Filter Label
E
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
2.64 m
Height
—
Weight
13400 kg
Operators (23)
