GBL-130 Chinese Armored Mine Dispenser
GBL-130
Armored Mine Dispenser
Other
Basic Information
Name
GBL-130 Chinese Armored Mine Dispenser
Designation
GBL-130
Alternate Designation
GBL-130
Equipment Type
Armored Mine Dispenser
Manufacturer
NORINCO
Date of Introduction
1994
Description

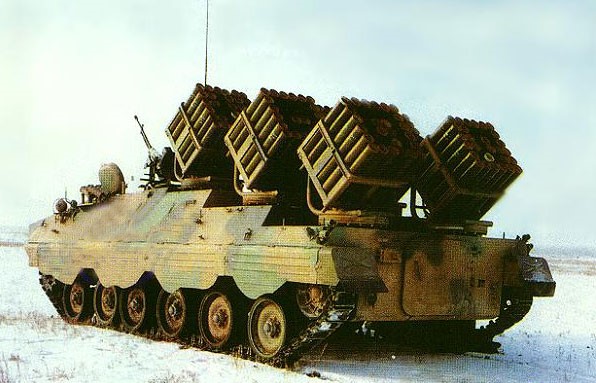

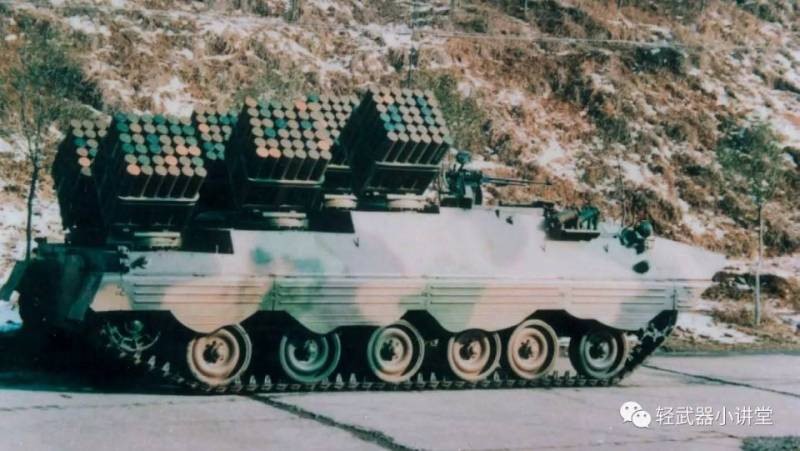

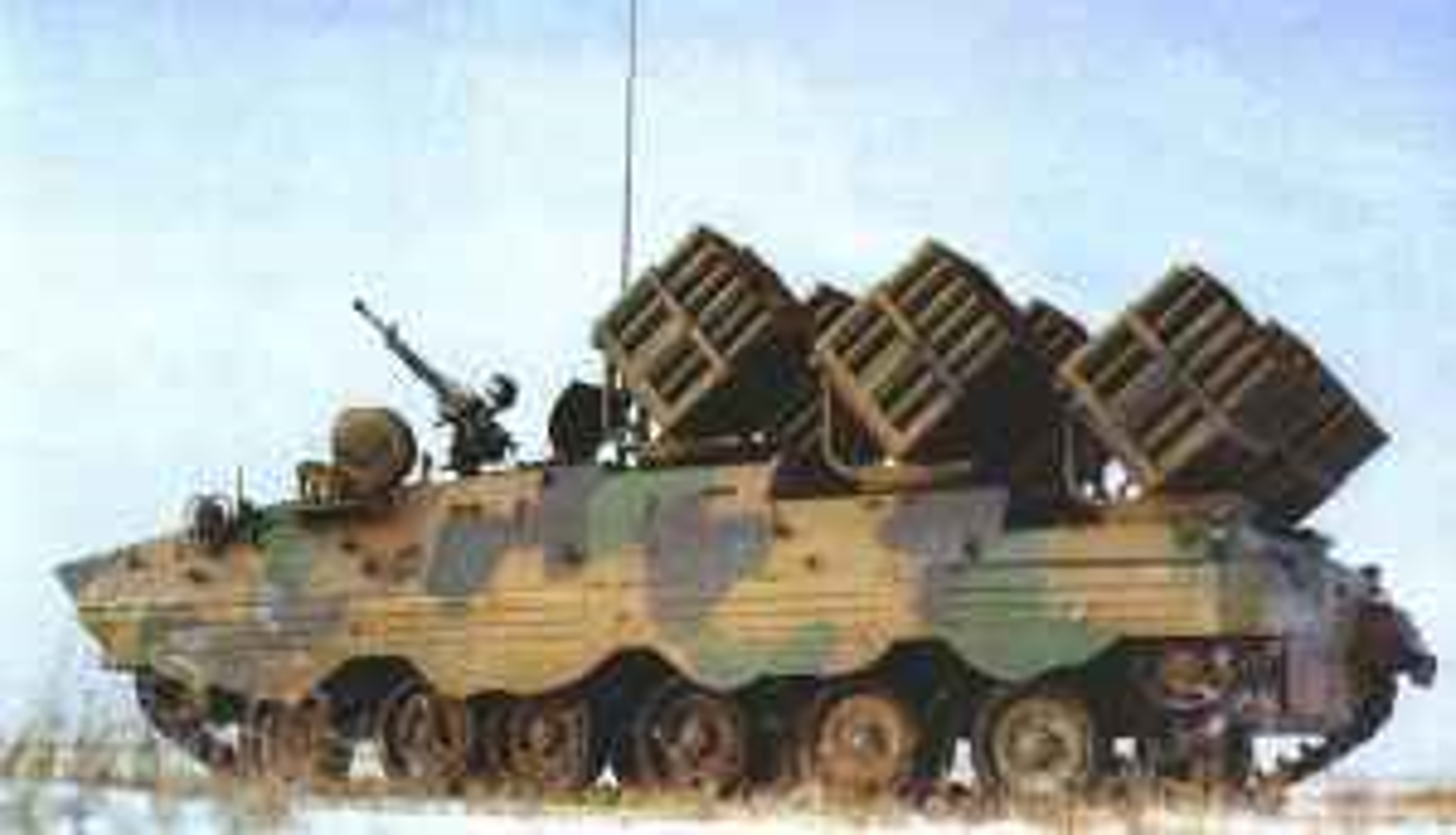

The GBL-130 Chinese Armored Mine Dispenser is based on an enlarged ZSD-89 APC hull. It is 0.076m longer and 0.042m wider than the standard ZSD8-9, with the number of road wheels, increased from five to six pairs. This provides the vehicles with extra space for mine dispensing equipment. The vehicle has a stepped rear hull roof to enable six mine dispensers to operate simultaneously. The number of observation ports and roof hatches were reduced, and the rear exit door is smaller in size compared to that of the ZSD-89.
Ground Specifications
Crew
4
Engine
Diesel (520 hp)
Variants
GBL-131 Chinese 6x6 Mine Dispenser
The GBL-131 Chinese 6x6 Mine Dispenser is a variant of the GBL-130 mounted on a Tiema XC200 Chinese 6x6 Cross Country Truck.
GBL-132 Chinese 6x6 Mine Dispenser
The GBL-132 Chinese 6x6 Mine Dispenser is a variant of the GBL-130 mounted on a Dongfeng EQ240/EQ2081 Chinese 6x6 Cross Country Truck.
System
Alternative Designation
GBL-130
Type
Armored Mine Dispenser
Manufacturer
Norinco
Chassis
ZSD-89 APC
Mission
Anti-tank and anti-personnel mine laying/dispersion
Crew
4 ea
Dimensions
Length, Hull
6.85 m
Length, Overall
7.18 m
Width
3.15 m
Height, Hull Top
1.47 m
Height, Overall
3.18 m
Weight, Combat
29,900 kg
Ground Pressure
0.68 kg/sq cm
Mine Dispenser
Mine Dispenser Racks
216 launch tubes (6 x 36 mine canisters)
Dispenser Rack Configuration
Racks mounted on the stepped rear hull
Canister Diameter
122 mm
Number of canisters (per rack)
36 ea
Rack traverse
360 deg
Elevation (fixed)
40 deg
Mine dispensing method
Each dispenser rack projects one mine canister at one time.
Mine Capacity in one Load
GBL-240 canisters (Total of 1,080 GLD224 AT mines); GBL-241 canisters (Total of 3,240 GLD125 APers mines);GBL-242 canisters (Total of 9,720 GLD115 APers mines)
Distance Mines Launched from Vehicle
20 to 150 m
Maximum Length of Mindfield with one Load
2160 m (1 canister every 10 m)
Reload Time
18 min
Mine Types
GBL240
5 x Type 224 SATM
GBL241
15 x Type 125 SAPM
GBL242
45 x Type 115 / GLD-115 SAPEM
GBL243
5 x Type 224 INERT Training Mines
Automotive
Engine Name
12150L
Engine Type
Diesel
Engine Power
520 hp
Cruising Range
450 km
Speed, Maximum Road
55 km/h
Speed, Average Cross
32 km/h
Minefield Dispensing Speed
5 km/h
Fording Depth
1.3 m
Gradient
60 %
Obstacle, Vertical
0.7 m
Obstacle, Trench
2.6 m
Main Weapon System
Note
The QJC88 12.7mm Heavy Machine Gun is mounted on the Commander's Copula.
System
Name
1 x QJC88 12.7mm Heavy Machine Gun
Type
Heavy Machine Gun
Caliber
12.7 mm
Action
Gas
Length
1.5 m
Barrel Length
1 m
Weight
18.5 kg gun plus 15.5 kg mount
Rate of Fire
540 - 600 rpm
Muzzle Velocity
850 m/s
Feed System
Belt fed, 50 rounds
Sights
Type 58 optical sight on mount, backup Iron sights on gun
Ammunition
Type
Rifle
Caliber
12.7 mm
Cartridge
12.7x108mm
Basic Load
INA
Protection
Armor
Welded steel hull, resist rounds up to 12.7mm
NBC Protection
The crew is protected by an over-pressure collective NBC protection system and automatic fire suppression system.
Smoke Equipment
2 x 4-barrelled smoke grenade launchers, one on each side of the hull.
Details
Country of Origin
China
Category
Mine Laying Equipment
Land > Engineer Systems > Counter-Mobility > Mine Laying Equipment
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.18 m
Width
3.15 m
Height
3.18 m
Weight
29900 kg
Operators (2)
China
Peru
