TIGR American Tracked Unmanned Ground Vehicle (UGV)

TIGR

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
TIGR American Tracked Unmanned Ground Vehicle (UGV)
Designation
TIGR
Alternate Designation
TIGR
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Roboteam
Date of Introduction
2021
Description

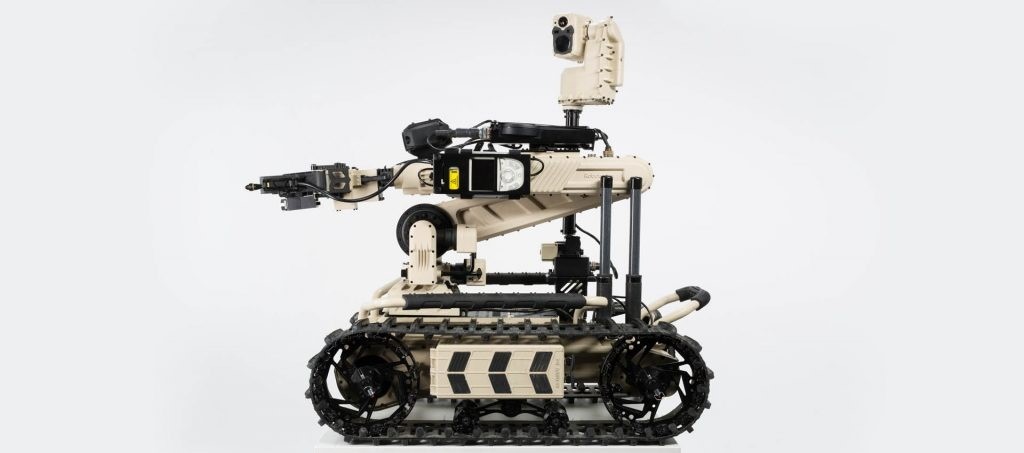

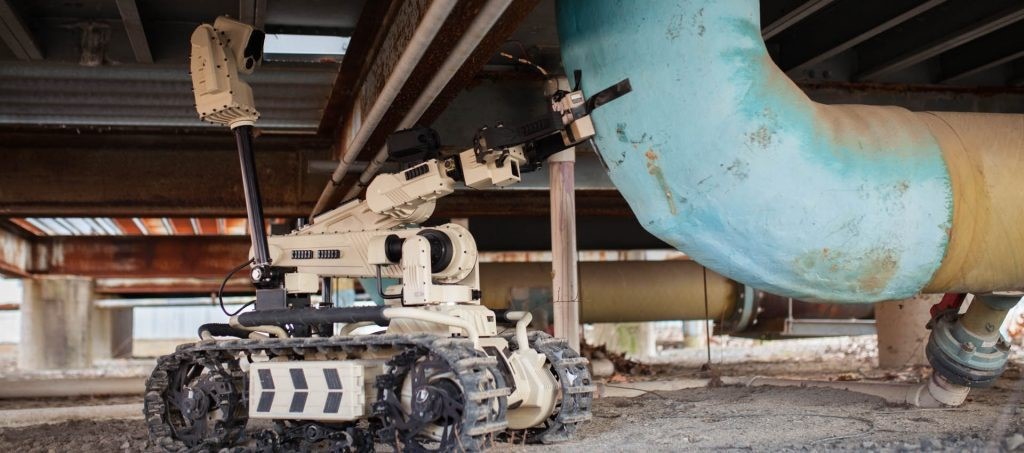

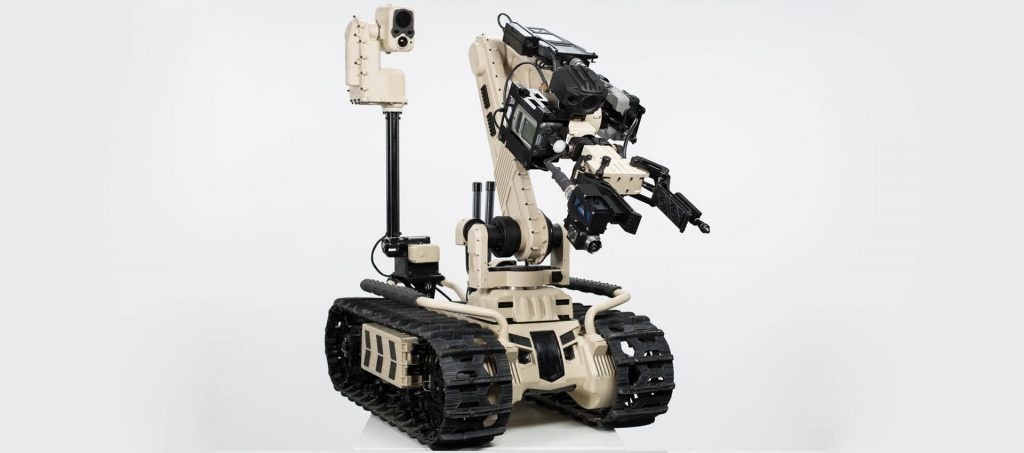

The TIGR American Tracked Unmanned Ground Vehicle (UGV) is R) is a medium-sized, two-man carried UGV. The TIGR is a highly mobile, all-weather system capable of operating in any terrain. TIGR incorporates best in class day and night vision modules that expedite IED search and CBRN survey operations. The 6 DOF manipulator allows the TIGR to effectively search/access a broad spectrum of environments, facilitating EOD Render Safe operations in critical situations. The modular design ensures that the most advanced manipulators, CBRN, and EOD payloads can be employed now and in the future. The TIGR’s innovative design and integrated technology maximizes safe stand-o distances, expedites mission completion, and keeps warfighters and first responders out of harm’s way. Transportable Interoperable Ground Robot (TIGR).

System
Alternate Designation TIGR
Type Unmanned Ground Vehicle (UGV)
Manufacturer Roboteam
IOP Ports Total 7 X 24v type B
Vision 5 Color HD cameras, 1 thermal camera
Audio Microphone
Main Cameras Day/Night + Thermal
Degrees of Freedom Continuous Pan , Tilt
Optical Zoon X30
Illumination 4 white and NIR LED High sensitivity sensor for lowlight and near total dark conditions
Operating Temperature -25°F to 120°F / -31°C to 50°C
Environmental Ingress Protection 67
Dimensions
Length 91 cm
Width 59 cm
Height 81 cm
Weight 84 kg , including 6 batteries
Automotive
Power Supply 24V MIL-STD battery
Maximum Speed INA
Operating Range 700m LOS
Vertical Obstacle 24 cm
Stair Climbing 45° / 24.5 cm
Endurance 8 hours (6 x Batteries)

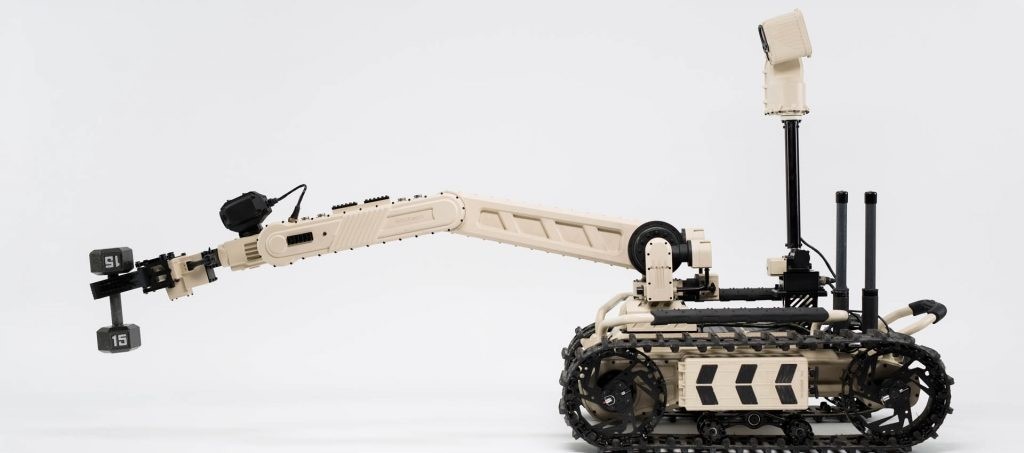

Tactical Manipulator
Degrees of Freedom 6D – Shoulder continuous yaw and pitch, Elbow 1 pitch, Elbow 2 pitch, Wrist continuous roll and Gripper
Manipulator Length Fully Extended 150 cm
Maximum Height (Including Platform Lift) 196 cm
Front of Platform Lift Capability 15 kg
Full Extension Lift Capability 6 kg
IOP Ports 3 X 24v type B
Details
Country of Origin United States
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.91 m
Width
0.59 m
Height
0.81 m
Weight
84 kg
Operators (1)
United States
