Tu-300 Korshun-U Russian Unmanned Aerial Vehicle (UAV)
Tu-300 Korshun-U
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Tu-300 Korshun-U Russian Unmanned Aerial Vehicle (UAV)
Designation
Tu-300 Korshun-U
Alternate Designation
Tu-300 Korshun-U
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Tupolev
Date of Introduction
1991
Description

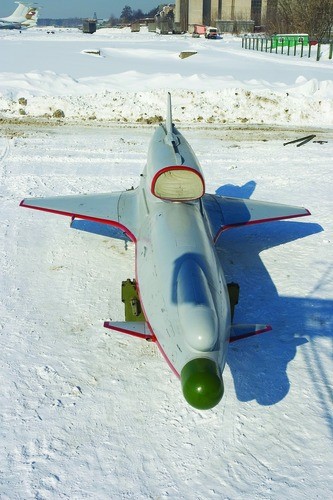

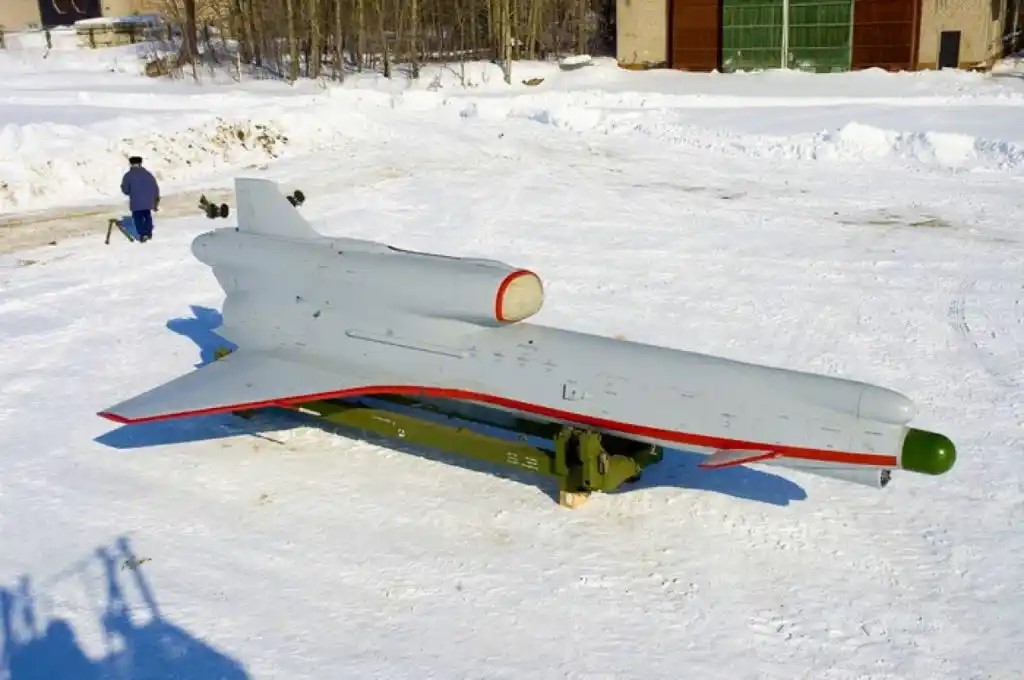

The Tu-300 Korshun-U Russian Unmanned Aerial Vehicle (UAV) is an unmanned single-engine airplane with an aerodynamic "duck" scheme. For the lifting force corresponds to a triangular wing with a slight elongation. Mechanized communications and an electronic computer complex, as well as auxiliary and reconnaissance equipment, are installed in the forward part of the fuselage. The main load, missile-bomb armament or radio electronic equipment is installed on the external points of the fuselage suspension and in the fuselage compartment. In addition to its own weight of four tons, an aerial unmanned vehicle can take up to one ton of specialized load on board.
Air & Air Defense Specifications
Engine
Turbojet
Max Speed
950.0 km/h
Range
300.0 km
Wingspan
2.40 m
Payload Capacity
1000 kg
System
Alternate Designation
Tu-300 Korshun-U
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Tupolev
Payload Capacity
1,000 kg
Fuselage
The forward portion of the fuselage is equipped with mechanical communications, an electronic computer complex, and auxiliary and surveillance equipment.
Launcher
Since the use of an unmanned vehicle chassis is not provided, the launch is carried out from a launching transport container mounted on the vehicle chassis. For the launch itself into the air, there are two solid-fuel accelerators.
Landing
Parachute system, located in the tail section.
Dimensions
Length
8.06 m
Height
INA
Wingspan
2.4 m
Weight,
3,000 kg
Automotive
Engine Name
Klimov TR3-117
Engine Type
Turbojet
Engine Power
INA
Maximum Speed
950 km/h
Maximum Range
300 km
Service Ceiling
INA
Maximum Altitude
6,000 m
Minimum Altitude
50 m
Endurance
INA
Armament
Internal Weapon Bay
It has internal weapon bays and a single centerline pylon for external munition. It was created as a strike UAV or “uninhabited air combat vehicle (UCAS).” It has nose fairings and an antenna dome for contemporary sensors and electronic equipment. It has a bigger inlet, which could indicate turbofan propulsion.
Armament
The Tu-300 can be equipped with high-explosive and cumulative-fragmentation bombs as percussive weapons.
Note

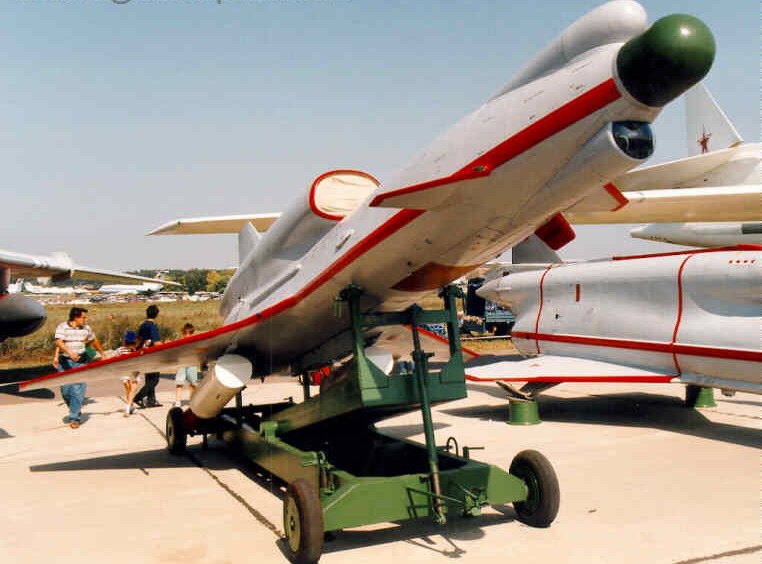

At various exhibitions and air show UAV was demonstrated with the presence of a suspended container of small-sized cargo (KMGU). Due to this, the unmanned Tu-300 can be armed with percussive weapons in the form of cumulative-fragmentation and high-explosive bombs. A wide range of unmanaged and controlled air ammunition is capable of being deployed on an air vehicle due to the used holder BDZ-U.
Details
Country of Origin
Russia
Category
UAVs
Air > UAVs
Filter Label
T
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
8.06 m
Width
—
Height
—
Weight
3000 kg
Operators (1)
Russia
