Buk-M1

Area Air Defenses

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Buk-M1

Designation

Buk-M1

Alternate Designation

9K37M1, Buk-M1-2, SA-11 Gadfly

Equipment Type

Area Air Defenses

Manufacturer

Almaz-Antey Concern

Date of Introduction

1979

Description

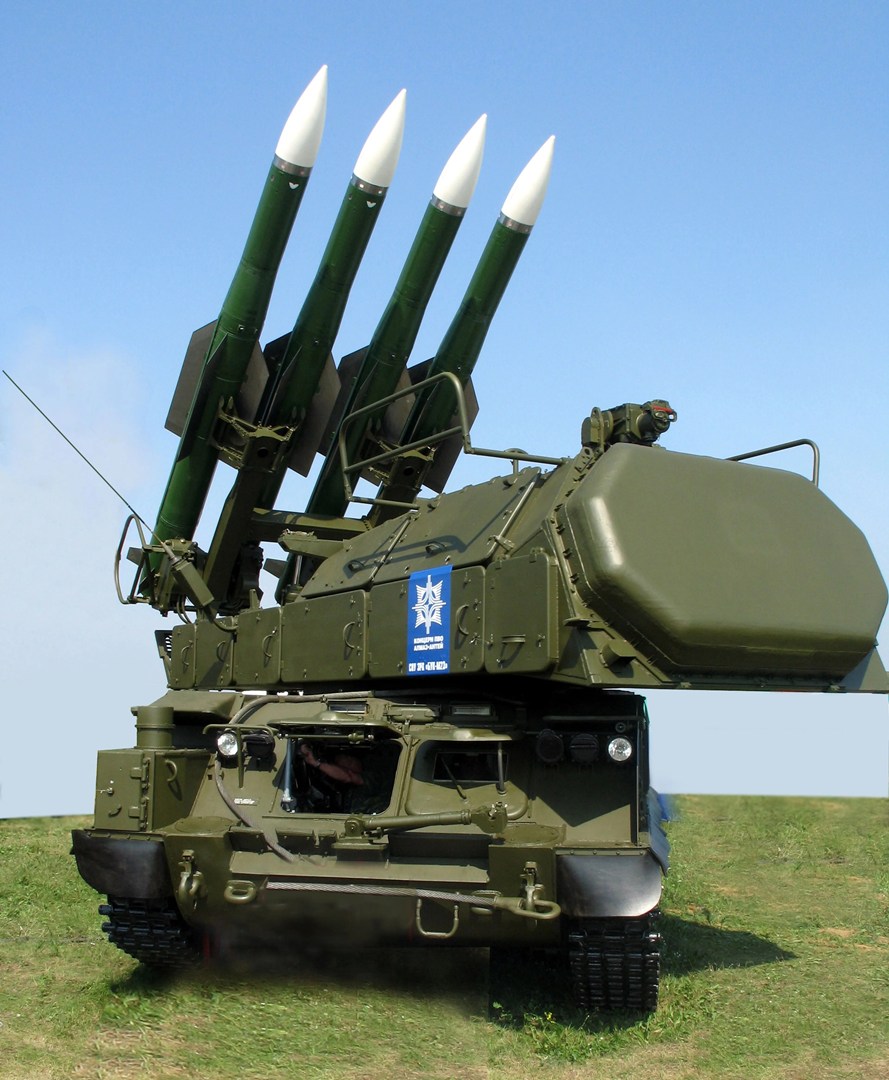

The Buk-M1 is a road mobile, medium range Surface-to-Air Missile (SAM) system designed to engage aircraft, helicopters and cruise missiles in intense clutter and jamming environment. High Speed Anti-Radiation missiles and theater ballistic missiles can also be engaged by Buk-M1 air defense system. The Buk-M1 consists of a 54K6E command post vehicle, a target acquisition radar mounted on a tracked vehicle, and up to 6 loader-launcher vehicles designated the 9A39M1 carrying 4 9M38 missiles. The entire system can be ready to fire in just 5 minutes. It can engage up to 6 targets simultaneously. The Buk-M1 road mobile air defense system entered service in 1979 replacing the SA-6 Gainful. It overcomes some of the most important shortfalls detected on the Gainful SAM system. The upgraded Buk-M1-2 was introduced in 1998.

Ground Specifications

Mobility Type Tracked

Max Speed 2880.0 km/h

Range 35.0 km

Overview (Deagel)

Group Area Air Defenses

Status Active

Also Known As 9K37M1, Buk-M1-2, SA-11 Gadfly

Origin Russia

Contractor Almaz-Antey Concern

Initial Operational Capability (IOC) 1979

Total Production ?

Specifications (Deagel)

Engaged Aerial Targets 6

Mass — Combat Weight 35,000 kilogram

Percentage — Hit Probability 90 %

Performance — Target's Max Altitude 22,000 meter

Performance — Target's Min Altitude 25 meter

Performance — Weapon Max Range 35,000 meter

Performance — Weapon Min Range 3.5 kilometer

Speed — Target's Max Speed 800 mps

Time — Reaction Time 22 second

Time — SetUp Time 5 minute

Gear (Deagel)

Item 1 Surface-to-Air Missiles: 9M38 (24)

Variants

Variant 1 Buk-M1

Variant 2 Buk-M2

Variant 3 SHF

Variant 4 Buk-M3

Details

Country of Origin Russia

Category Air Defense

Land > Air Defense

Sources

deagel.com: https://www.deagel.com/x/x/a000374

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

—

Width

—

Height

—

Weight

35000 kg

Related Equipment (3)

Variant

Buk-M2

Area Air DefensesRussia

View details

Variant

Buk-M3

Area Air DefensesRussia

View details

Variant

SHF

Local Air DefensesRussia

View details

Operators (11)

Russia

Ukraine

India

Serbia

Belarus

Armenia

Azerbaijan

Egypt

Finland

Georgia

Syria
