Ruslan TTM-4902 PS-10 Russian All Terrain Carrier

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Ruslan TTM-4902 PS-10 Russian All Terrain Carrier
Designation
Alternate Designation
Equipment Type
Manufacturer
Date of Introduction
2014
Description

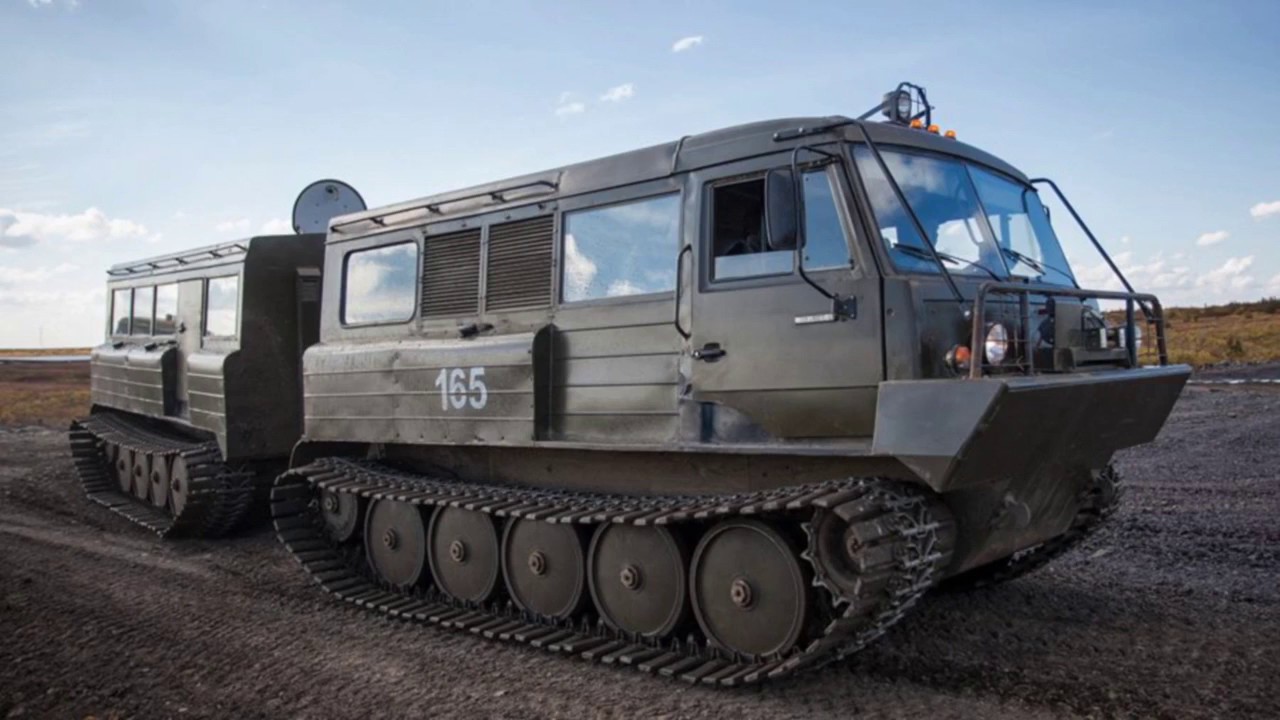

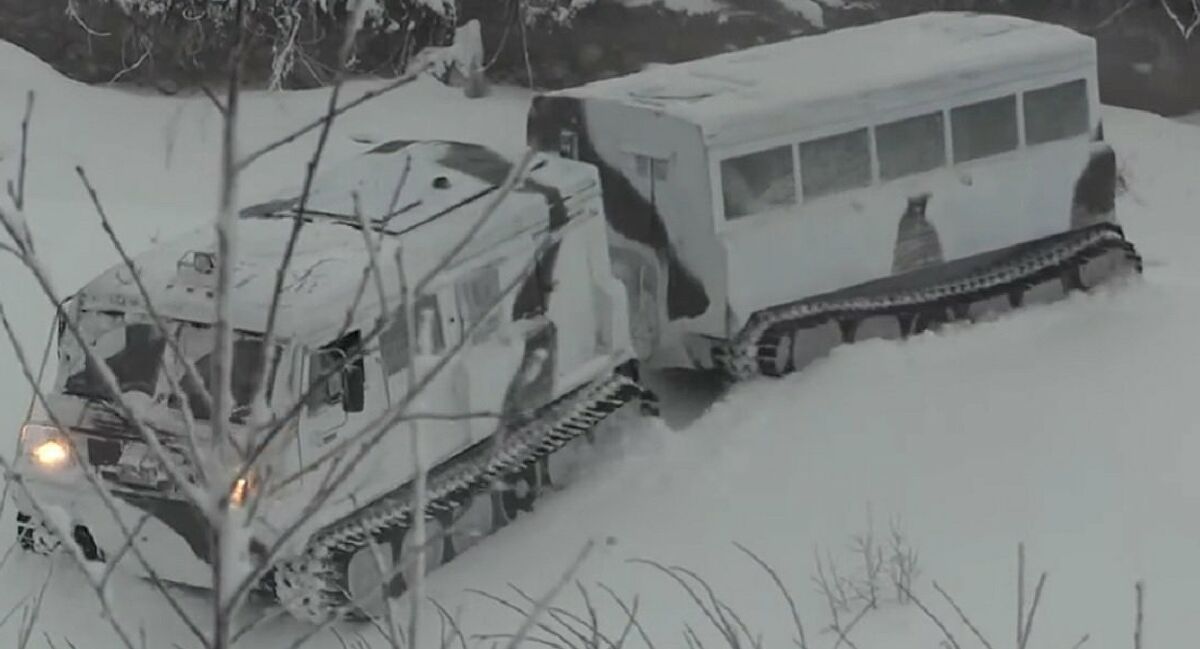

The Ruslan TTM-4902PS-10 carrier is a two-section tracked amphibious all-terrain vehicle. It has a 300 horsepower engine which is capable of transporting up to 22 people and provide overnight bed space for five. Manufactured by the CJSC Transport Company, the Ruslan was designed to transport cargo, repair teams and equipment (up to 4000 kg) in off-road conditions. The first section is a power module (load-carrying capacity 500 kg). It is able to carry 6 people and has 2 full beds. The second section is a passenger module (16 people, 6 beds). The vehicle was tested in harsh conditions in the Murmansk region north of the Arctic Circle before entering into service. These vehicles are currently in use by Russian units in the Arctic.

Ground Specifications
Crew 2
Troop Capacity 22
Engine KaMAZ, turbodiesel
System
Payload 4 mt
Troop Capacity 22 total: Six personnel in forward compartment, 16 personnel in rear compartment ea
Wheels 10 roadwheels in each compartment
Crew 2
Dimensions
Height, Overall 2.66 m
Length, Overall 11.57 m
Width, Overall 2.94 m
Width, Tracks 0.760 m
Automotive
Engine Type KaMAZ, turbodiesel
Fording Yes, amphibious
Fording Depth INA
Ground Clearance 0.40 mm
Power 330 hp
Temperature Range -50C to +50C (-58F-+122F) degrees
Mobility
Projection/Transportability Can be deployed from landing ships
Details
Country of Origin Russia
Category Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
Russia
