Sibirykov-Class (Project 865 Class) Russian Hydrographic Survey Vessel

Sibirykov-Class

Hydrographic Research Vessel / Medium Intelligence Ship

Spotted an error? Sign in to suggest an edit.

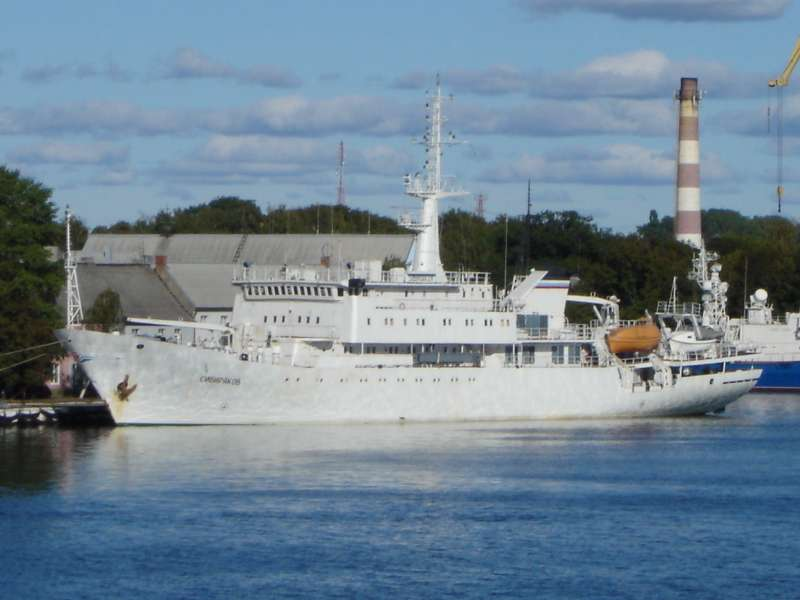

Sibirykov-Class (Project 865 Class) Russian Hydrographic Survey Vessel — Sibirykov_Class_(AA).pngTRADOC ODIN WEG

Basic Information

Name

Sibirykov-Class (Project 865 Class) Russian Hydrographic Survey Vessel

Designation

Sibirykov-Class

Alternate Designation

Sibirykov-Class; Project 865 Class

Equipment Type

Hydrographic Research Vessel / Medium Intelligence Ship

Manufacturer

—

Date of Introduction

1990

Description

Sibirykov-Class (Project 865 Class) Russian Hydrographic Survey Vessel was ordered for the exploration of mineral resources at depths of up to 6,000 m. Each can carry up to two 18-ton submersibles. Equipped with 14 laboratories plus hydrographic, meteorological, magnetometric, geologic, gravimetric, and photographic facilities.

Naval & Littoral Specifications

Crew 58

Beam 15.00 m

Draft 4.90 m

Variants

Sibiryakov Commissioned: 1990 Status: Active Fleet: Baltic Fleet

Romuald Muklevich Commissioned: 1991 Status: Active Fleet: Northern Fleet

System

Alternative Designation Sibirykov-Class; Project 865 Class

Type Hydrographic Survey Vessel

Builder Stocznia Polnocna Shipyard, Gdansk, Poland

Crew 58 total + 12 scientists/technicians

Dimensions

Length 85.7 m

Beam 15.0 m

Draft 4.9 m

Displacement, Standard 2,280 tons

Displacement, Full Load 3,450 tons

Propulsion System

Engine Name 2 x Cegielski-Sulzer Type 12 ASV25D

Engine Type Diesel-Electric

Engine Power 2 x 2,400 kW

Auxiliary Power 2 x Type 6AL20D diesels; 2 420 kW motors for low-speed propulsion.

Bow Thruster 1 x Bow Thruster

Stern Thruster 1 x Stern Thruster

Maximum Range 11,520 nm at 12 kts.

Maximum Speed 16 knots

Communications

Radio Direction Finder 1 x Rumb Radio Direction Finder

Gun Weapon Systems

Note Provision was made for the mounting of a twin 30-mm (AK-230) AA gun mount with an optical director.

Radar Systems

Navigation Radar 2 Don Navigation Radars

Surface / Search Radar 1 x MR-212 Vaygach

Protection

Hull Ships are equipped with an NBC defense filter system and internal degaussing.

Countermeasures No

NBC Water Washdown System Yes

Image Sources

Notes https://www.militaryperiscope.com/weapons/ships/auxiliary/sibiryakov-agor-class/overview/; https://www.flickr.com/photos/kev_gregory_general/27623552714; https://www.shipspotting.com/photos/1038957;

Details

Country of Origin Russia

Category Naval

Naval

Classification

Domain

Naval & Littoral

Equipment Status

Active

Dimensions

Length

85.7 m

Width

—

Height

—

Weight

—

Operators (1)

Russia
