P-15M (Squat Eye) Russian Mobile Ground-Based Air Surveillance and Target Acquisition Radar
P-15M
Multi-Mission Radar
Other
Basic Information
Name
P-15M (Squat Eye) Russian Mobile Ground-Based Air Surveillance and Target Acquisition Radar
Designation
P-15M
Alternate Designation
P-15M; Squat Eye
Equipment Type
Multi-Mission Radar
Manufacturer
—
Date of Introduction
1989
Description

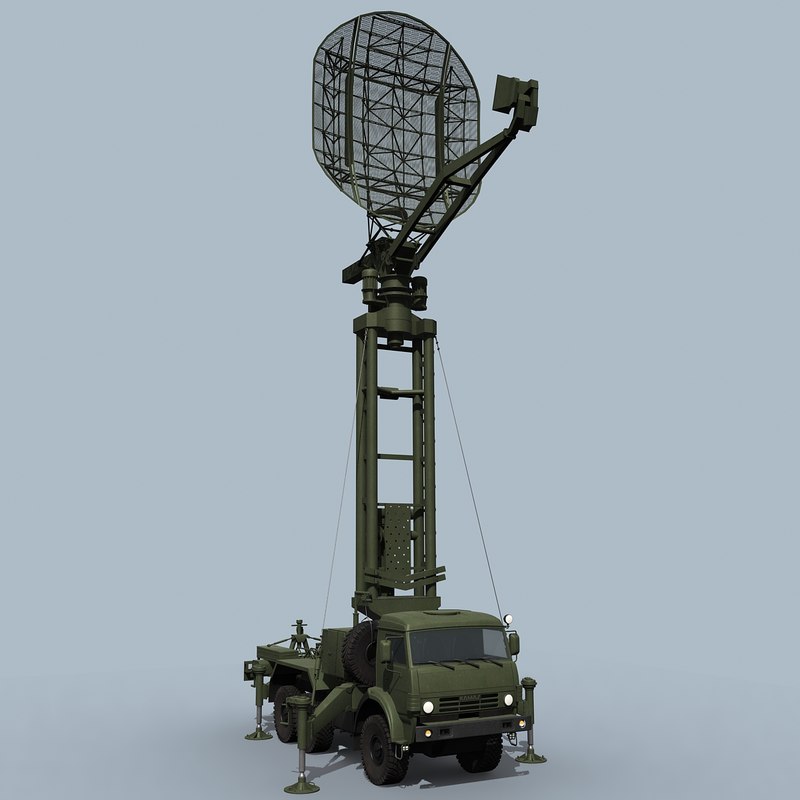

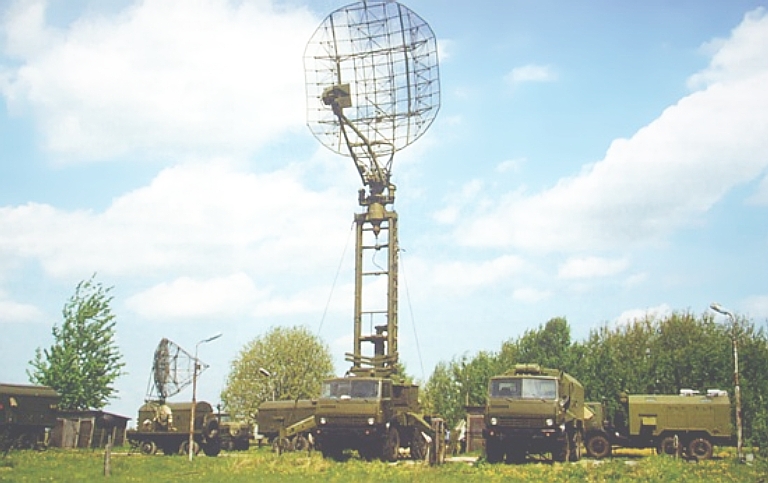

Squat Eye** is a ground-based air surveillance and target acquisition radar associated with the SA-3 Goa** surface-to-air missile (SAM) system. Squat Eye works in conjunction with the Low Blow ** missile fire control radar to supply an air-defense site's coverage of low-altitude targets. The radar is distinguished by its open-work elliptical parabolic antenna usually mounted on a 30-m (98-ft) mast. The reflector is fed by an underslung feed horn, which further emphasizes its low-altitude orientation.
Ground Specifications
Active Protection
None
System
Alternative Designation
P-15M; Squat Eye
Type
Mobile Ground-Based Air Surveillance and Target Acquisition Radar
In Service
1989-Present
Chassis
ZIL-131
Crew
INA
Band
C (500-1,000 MHz)
Peak Power
500 kW
Maximum Range
200 km
Dimensions (Chassis: ZIL-131)
Length
7.04 m
Width
2.49 m
Height, Cab
2.49 m
Height, Transport Body
2.97 m
Curb Weight
6,700 kg
Wheelbase
10 ft 10 in (3.30 m)+4 ft 7 in (1.40 m)
Antenna Length
4 m
Antenna Width
6 m
Antenna Mast Height
30 m
Automotive (Chassis: ZIL-131)
Engine Name
INA
Engine Type
V8 gasoline (carburetor) ZIL-130
Engine Power
INA
Cruising Range
INA
Speed, Maximum Road
80 km/h
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Gradient
INA
Side Slope
INA
Vertical Step
INA
Trench
INA
Fording Depth
INA m
Suspension
solid axles with leaf springs.
Transmission
5 m, 2-speed transfer case
Fuel Economy
5.9 mpg‑US (40 L/100 km; 7.1 mpg‑imp) (city), 50 to 100 liters/100 km (cross-country).
Fuel Tanks
2x45 gal.
Maneuverability
turning circle 33'5.6", approach angle 36°, departure angle 40°, max. ascent angle 31° (with 3,750 kg (8,267 lb) load), ground clearance 13 in (330 mm), overcome ford 4 ft 7 in (1.40 m)
Stopping Distance at 35 km/h
12 m
Protection
Armor
INA
Applique Armor
No
Active Protection System
No
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
INA
Smoke Equipment
No
Details
Country of Origin
Russia
Category
Radars
Land > Radars
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
6700 kg
Operators (25)
Ukraine
Poland
India
Serbia
Algeria
Angola
Armenia
Cuba
Egypt
Ethiopia
Kazakhstan
Kyrgyzstan
Libya
Mali
Moldova
Mozambique
Peru
Slovakia
Syria
Tajikistan
Tanzania
Uzbekistan
Vietnam
Yemen
Zambia
