YJ-8 (SS-N-4) Chinese Anti-Ship Missile

YJ-8

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
YJ-8 (SS-N-4) Chinese Anti-Ship Missile
Designation
YJ-8
Alternate Designation
Equipment Type
Manufacturer
China Aerospace Science and Industry Corporation
Date of Introduction
1990
Description

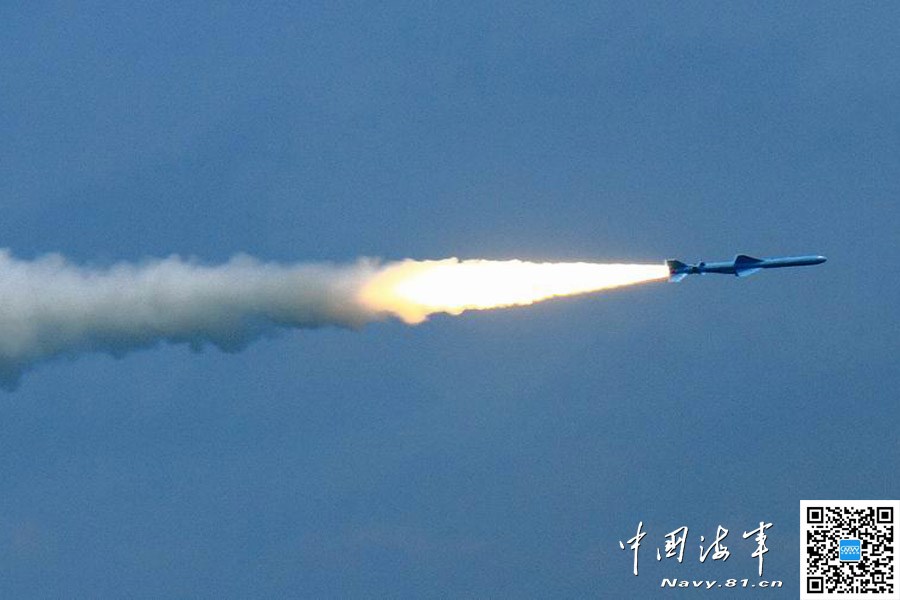

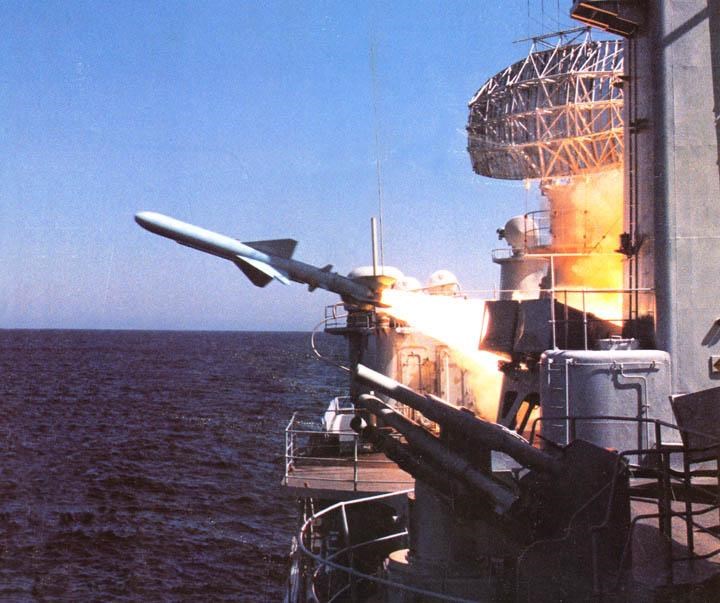

YJ-8 (SS-N-4) Chinese Anti-Ship Missile is a Chinese surface-launched subsonic anti-ship cruise missile. It is manufactured by the China Aerospace Science and Industry Corporation (CASIC) Third Academy. The YJ-8 was developed into air-launched (YJ-81) and submarine-launched (YJ-82) variants. The YJ-8 is either based on or is a heavily modified copy of, the MM38 Exocet; the two missiles share virtually identical operational profiles. The replication of the MM38's "revolutionary flight profile" in less than ten years and with an immature industrial base strongly suggests that China had access to proven technology.[4] The YJ-8 was a "radical departure" from China's first anti-ship missiles derived from the P-15 Termit. The YJ-8 carried a smaller warhead but had the same range and speed while being significantly smaller and lighter. The development of the YJ-8 was approved in late-1976 following a few years of encouraging work on solid-fuel rockets. According to a 1991 Aerospace China article, the development of the missile's engine began in 1978, and flight testing was completed in 1985. The YJ-8 reach initial operating capability in the People's Liberation Army Navy in 1987, the same year the export version—the C-801—was announced. CASIC received the first National Science and Technology Advancement Award for the development of the YJ-8 in 1988.

Air & Air Defense Specifications
Max Speed 1111.3 km/h
Range 42.0 km
Variants

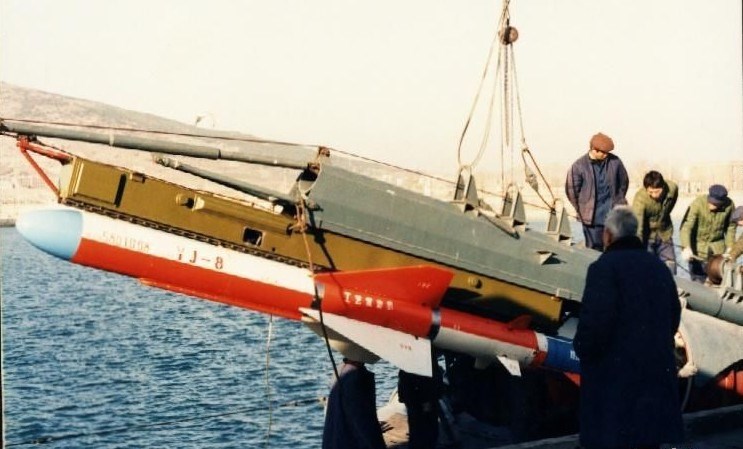

YJ-8 YJ-8: Basic version with fixed wings
YJ-8A YJ-8A: Modified YJ-8 with folding wings

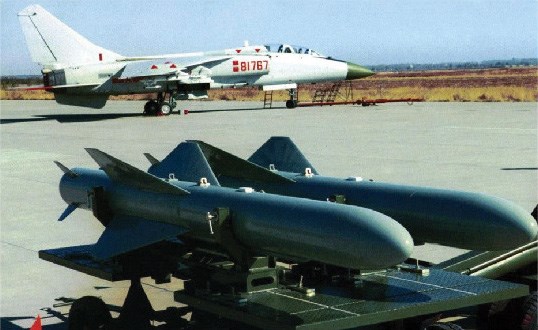

YJ-81 YJ-81: Air-launched version without the booster.
YJ-82 YJ-82: Submarine-launched version.
C-801 C-801: Export version of YJ-8.
C-801K C-801K: Export version of the YJ-81.
C-801Q C-801Q: Export version of YJ-82.
YJ-8/C-802 (NATO: CSS-N-4 Sardine) Chinese Anti-Ship Missile
Missile
Name YJ-8; NATO: SS-N-4; C-802
Type Anti-Ship & Air-to-Surface Missiles
Manufactuer China Aerospace Science and Industry Corporation
In Service 1980s-Present
Length 5.81 m
Width INA
Weight 815 kg
Warhead Type High-explosive fragmentation
Warhead Weight 165 kg
Engine Rocket
Propellant Solid Rocket
Guidance System Inertial navigation/active radar homing terminal guidance
Speed Mach 0.9
Operational Range 42 km
Flight Altitude 5-7 m
Details
Country of Origin China
Category Anti-Ship Missiles
Air > Anti-Ship Missiles
Filter Label
Y
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
5.81 m
Width
Height
Weight
815 kg
Documents & Files (3)
YJ89bb3.C802_(CSSN4_Sardine)_(CC)
85.39 KB
TRADOC ODIN WEG
YJ8e413.C802_(CSSN4_Sardine)_(BB)
56.22 KB
TRADOC ODIN WEG
YJ8fc91.C802_(CSSN4_Sardine)_(AA)
36.45 KB
TRADOC ODIN WEG
Operators (4)
China
Iran
Thailand
Yemen
