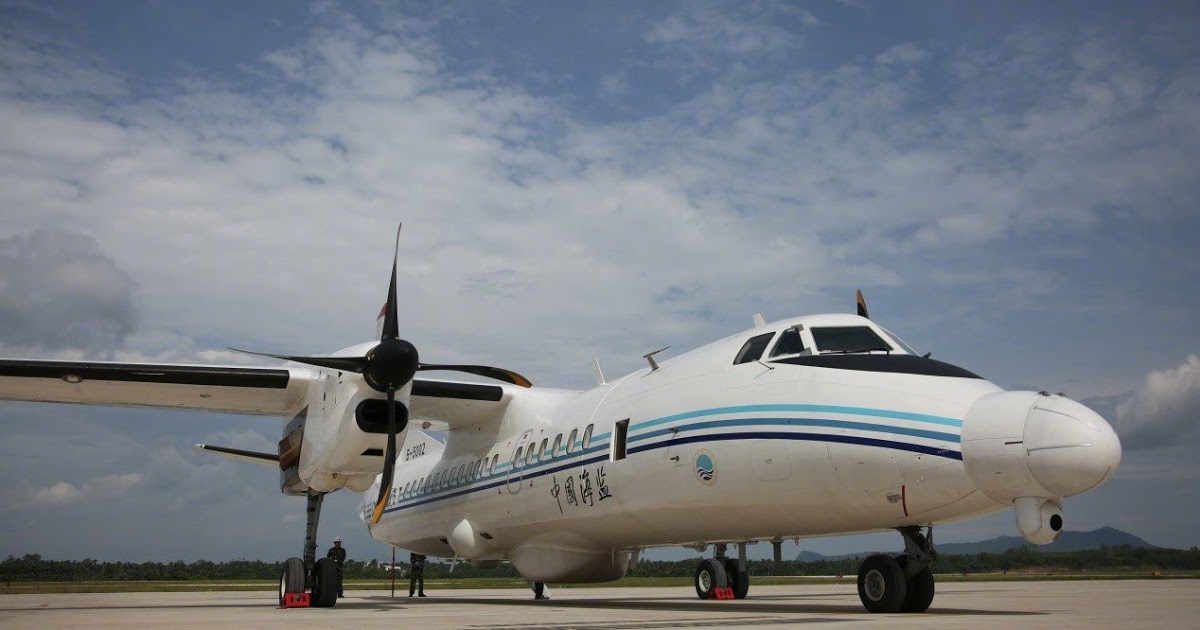

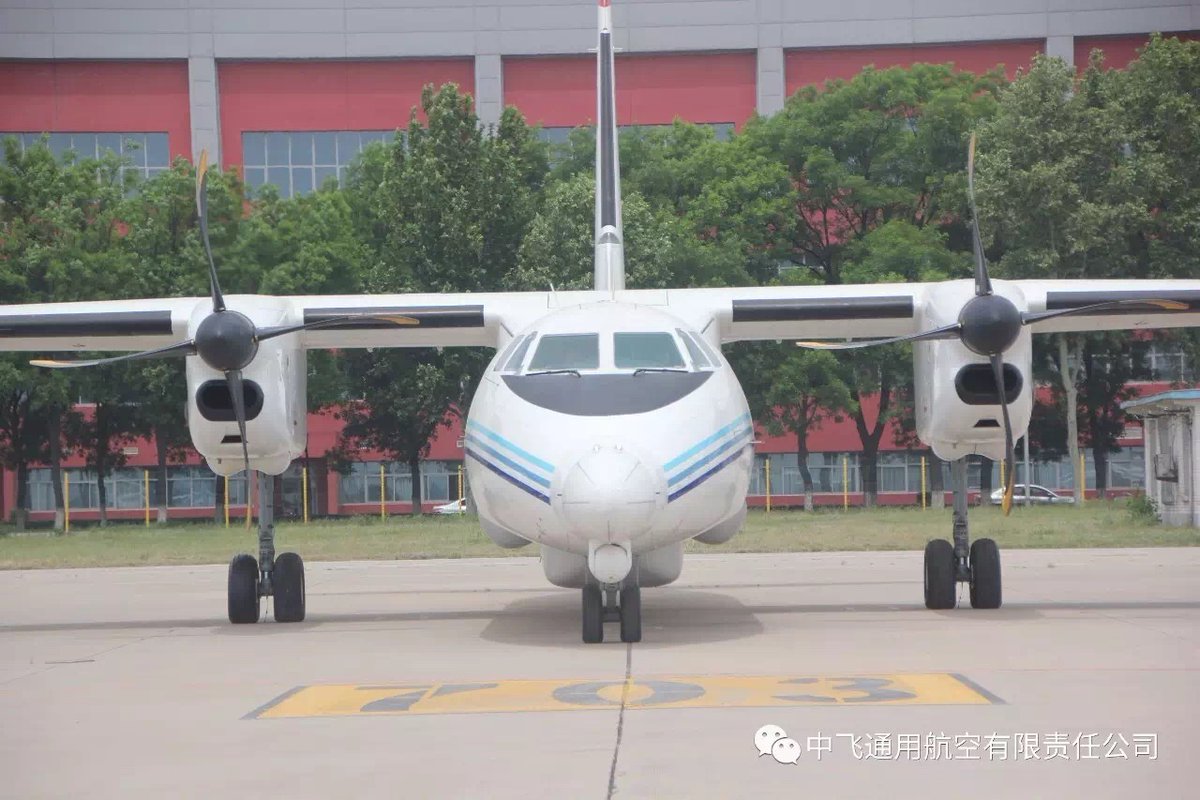

MA60H Chinese Maritime Patrol Aircraft

MA60H

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
MA60H Chinese Maritime Patrol Aircraft
Designation
MA60H
Alternate Designation
Equipment Type
Manufacturer
Xi'an Aircraft Industry Corporation
Date of Introduction
2000
Description

The Xian MA60 (新舟60, Xīnzhōu liùshí, "Modern Ark 60") is a turboprop-powered airliner produced by China's Xi'an Aircraft Industrial Corporation under the Aviation Industry Corporation of China (AVIC). The MA60 is a stretched version of the Xian Y7-200A, which was produced based on the An-24 to operate in rugged conditions with limited ground support and has short take-off and landing (STOL) capability. The airplane received its type certificate from the Civil Aviation Administration of China in June 2000. The MA60 has not applied for FAA (US) and EASA (Europe) type certification, and is not certified for use in the European Union or the US. The general designer of MA-60 series is Lü Hai (吕海). As of October 2006, XAC has received over 90 MA60 orders. The factory had delivered 23 MA60s by the end of 2006, and expects to deliver an additional 165 by the end of 2016.

Air & Air Defense Specifications
Crew 2
Engine Turboprop (2051 hp)
Max Speed 430.0 km/h
Range 1600.0 km
Service Ceiling 7620 m
System
Alternate Designation(s) MA60H
Primary Function / Type Turboprop regional airliner
Manufacturer Xi'an Aircraft Industrial Corporation
Crew 2
Passenger Capacity 62 passengers
Number of Engines 2
Number of Hard Points INA
Dimensions
Length 24.71 m
Height 8.86 m
Width (Wing Span) 29.2 m
Wing Area 75 m2
Empty Weight 13,700 kg
Maximum Takeoff Weight 21,800 kg
Automotive
Engine Name 2 × Pratt & Whitney Canada PW127J
Number of Engines 2
Engine Type Turbo Prop Engines
Engine Power 2,051 kW (2,750 hp) each
Maximum Range 1,600 km
Maximum Speed 430 km/h
Service Ceiling 7,620 m
Protection
Stealth Properties None
Heat Signature Reduction No
Add on Armor No
NBC Protection INA
EW Counter Measures No
Chaffs/Flares No
Details
Country of Origin China
Category Maritime Patrol
Air > Maritime Patrol
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
24.71 m
Width
29.2 m
Height
8.86 m
Weight
21800 kg
Operators (13)
China
Burundi
Cambodia
Cameroon
Congo, Republic of the
Eritrea
Laos
Nepal
Sri Lanka
Tajikistan
Tonga
Yemen
Zimbabwe
