RABDAN 8x8 Emirati Amphibious Infantry Fighting Vehicle (IFV)
RABDAN 8x8
Amphibious Infantry Fighting Vehicle (IFV)
Other
Basic Information
Name
RABDAN 8x8 Emirati Amphibious Infantry Fighting Vehicle (IFV)
Designation
RABDAN 8x8
Alternate Designation
RABDAN 8x8
Equipment Type
Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer
Al Jasoor
Date of Introduction
2017
Description
The RABDAN 8x8 Emirati Amphibious Infantry Fighting Vehicle (IFV) is a next-generation, amphibious, modular, multi-wheeled armored vehicle system known for its superior tactical and technical performance. The Rabdan is a versatile, future-proofed 8x8 vehicle designed for various mission objectives and capable of navigating diverse terrains. It comes in several specialized configurations and can accommodate up to 12 frontline troops, demonstrating high mobility on both land and water.
Ground Specifications
Crew
2
Mobility Type
Wheeled (8x8)
Main Weapon
30mm dual-feed automatic cannon
Engine
6-Cylinder Turbocharged Diesel (600 hp)
NBC Protection
Yes
Amphibious
Yes
Max Speed
105.0 km/h
Range
700.0 km
System
Alternative Designation
RABDAN 8x8
Type
Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer
Al Jasoor
Configuration
8x8
Crew
2 ea
Passengers
10 ea
Dimensions
Length
8.45m
Width
3.25m
Height
2.46m (over hull)
Weight, Combat
30,000 kg
Automotive
Engine Name
INA
Engine Type
6 Cylinders, Water Cooled, Turbo Charged, Intercooled Diesel
Engine Power
600 hp
Maximum Range
700 km
Maximum Speed
105km/h

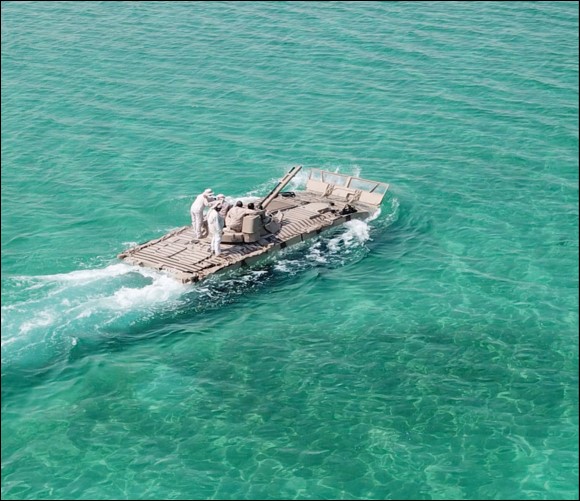

Amphibious
Yes
Max Amphibious Speed
9km/h
Climbing Capability
60%
Side Slope
30%
Minimum Ground Clearance
0.45m
Vertical Obstacle
0.7 m
Trench
2.0 m
Main Weapon System
Main Gun
SHAHEEN 30 is an unmanned weapon system designed for armored fighting vehicles. It is operated from within the vehicle and protected by armor. The system can fire armor-piercing, high-explosive, and various other types of ammunition, with the option to include anti-ballistic missile (ABM) munitions.
SHAHEEN 30 features a modern digital fire control system architecture, which includes independently stabilized dual-axes commander and gunner sights. The system is equipped with a high-performance cooled thermal camera, a day camera, and a laser range finder for target tracking. Additionally, it is fitted with a 30mm dual-feed automatic cannon and has a capacity of 210 ready rounds.
Turret
Turret Movement Specifications: Azimuth: Continuous rotation up to 360°; Elevation: Ranges from -10° to +60°
Sight System
The Sight System includes: 2-Axis Independently Stabilized Gunner Sight, Cooled Thermal Camera, Day Camera, Laser Range Finder, and Automatic Target Tracker.
Coaxial Weapon System
Note
7.62mm MACHINE GUN; 500 READY ROUND
Protection
Armor
High ballistic protection with a modular add-on armor system. High mine protection under the wheel and belly. All-around protection against IEDs at short distances.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
Yes
Details
Country of Origin
United Arab Emirates
Category
Land
Land
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.45 m
Width
3.25 m
Height
2.46 m
Weight
30000 kg
Operators (1)
United Arab Emirates
