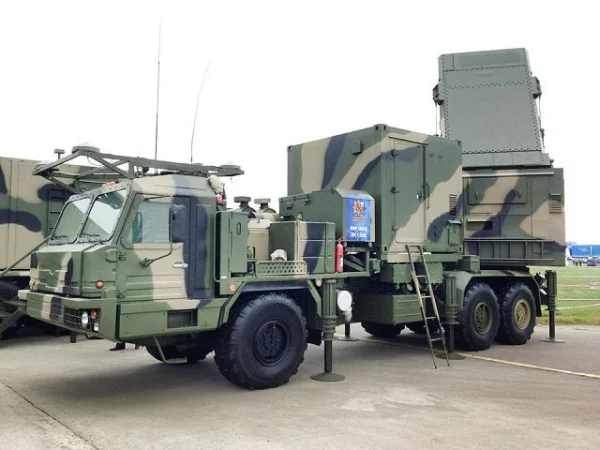

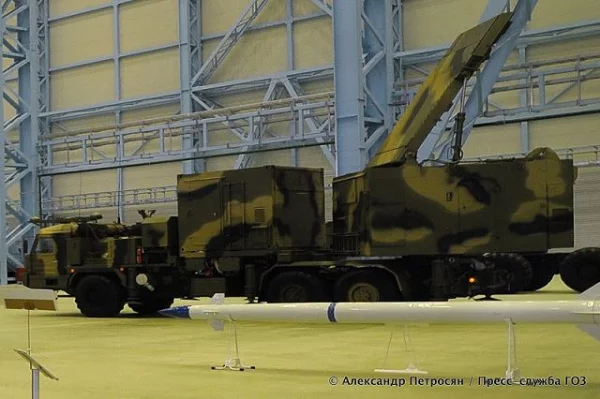

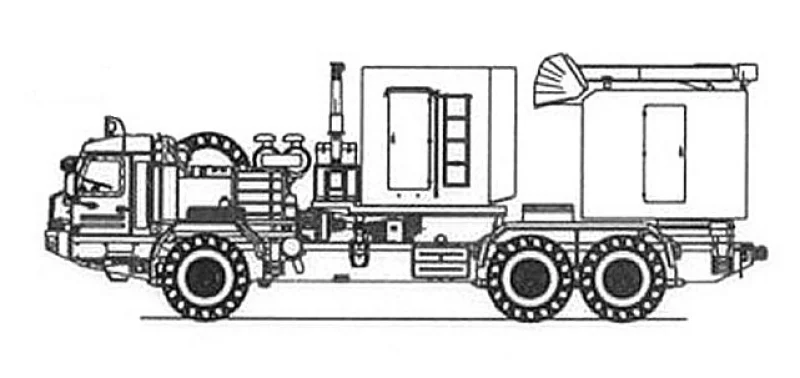

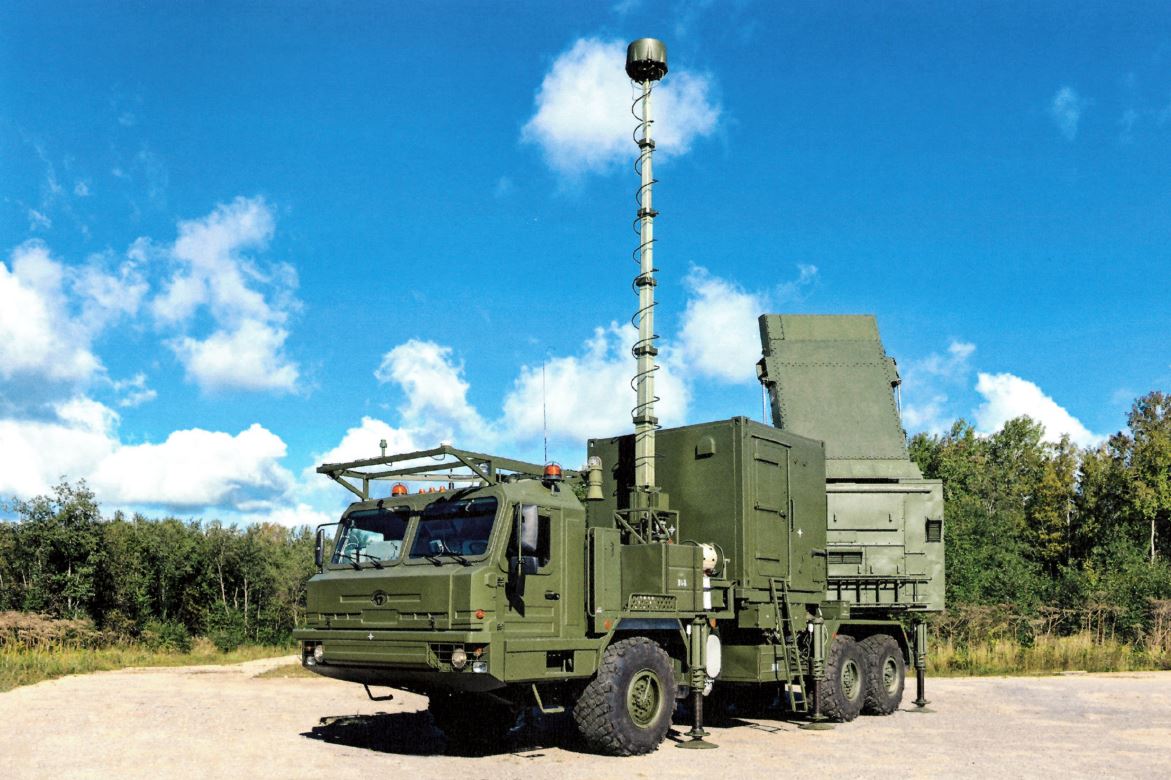

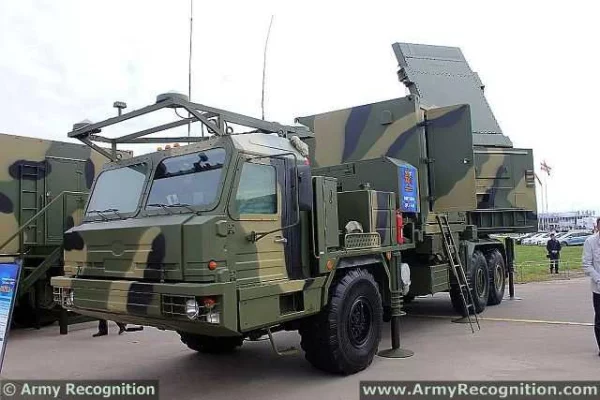

50N6A "Multi-Function Mobile Tracking Radar"
GRAVE YARD
The 50N6A is the Multi-Function Mobile Tracking Radar (MFMTR) employed with the Vityaz 50R6 (S-350E) ground-to-air defense missile system. Developed by Almaz-Antey, this radar provides a highly mobile, electronically scanned 3D search, tracking, and missile engagement capability. While it excels in rapid acquisition and fire-control tasks, its low-altitude coverage is inherently constrained by the fixed elevation angle of its phased array antenna. The 50N6A is a high power-aperture, coherent X-band active electronically scanned array (AESA) radar, engineered to detect and track aerodynamic and ballistic targets within a 90-degree azimuth sector. --- Additional Data (TRADOC ODIN WEG) --- Frequency: 8.5–10.5 GHz (X, NATO Band J) Antenna Dimensions: 4 x 2 m Associated Weapon Systems: С-350 (S-350): 9М96 / 9M96 Role: Fire Control/Multifunction Remarks: S-350 Vityaz fire control
